Roland CUBE-80XL User Manual

8

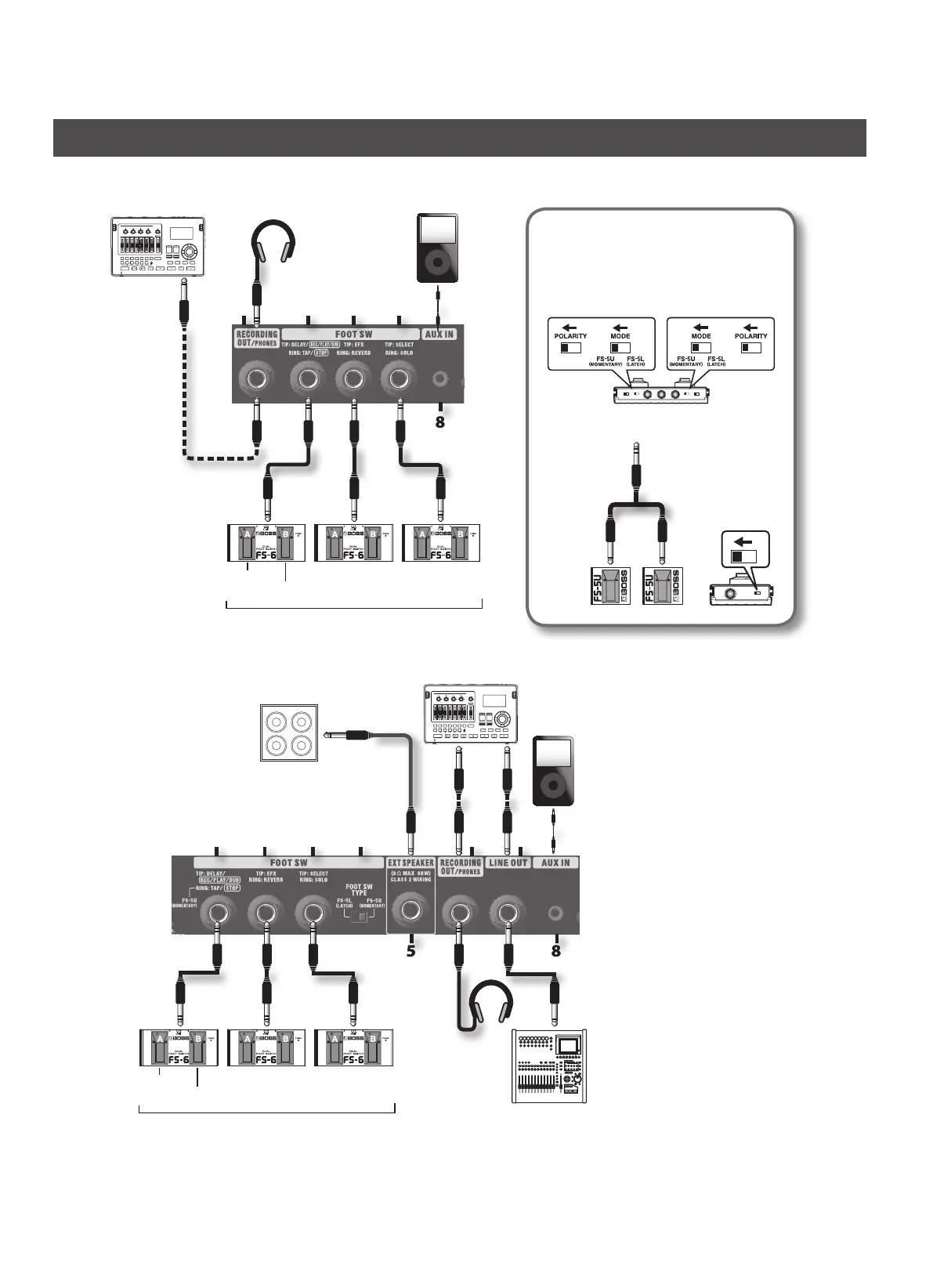

Rear Panel
Speaker Cable
Recorder, etc.
CD Player
Digital Audio Player etc
External Speaker
INPUT
SOLOREVERB EFX CH SELECT
Foot switches Mixer, etc.
Headphones
CUBE-80XL
1 2 3 4 6 7
5 8
DELAY/REC/PLAY/DUB
DELAY/REC/PLAY/DUB
TAP/STOP
TAP/STOP
Recorder, etc.
CD Player
Digital Audio Player etc
SOLOREVERB EFX CH SELECT
Foot switches
Headphones
CUBE-40XL
16 2 3
8
RING RING RINGTIP TIP TIP
RING RING RINGTIP TIP TIP
B A
FS-6
FS-5U
RING
TIP
Settings for momentary-type foot
switches
* To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn o the power on all devices before
making any connections.

Roland CUBE-80XL Specifications

General

Power Output	80 W
Looper	80 seconds
Channels	2
Delay/Reverb	Yes
Speaker	12 inch
Effects	Chorus, Flanger, Phaser, Tremolo
Type	Guitar Amplifier
Controls	Gain, Volume, EQ, Effects Level
Connectors	Input, Foot Switch
Inputs	1/4" phone type
Outputs	RECORDING OUT jack: 1/4" phone type
COSM Amp Models	11 types
