Roland CUBE-80XL User Manual

18

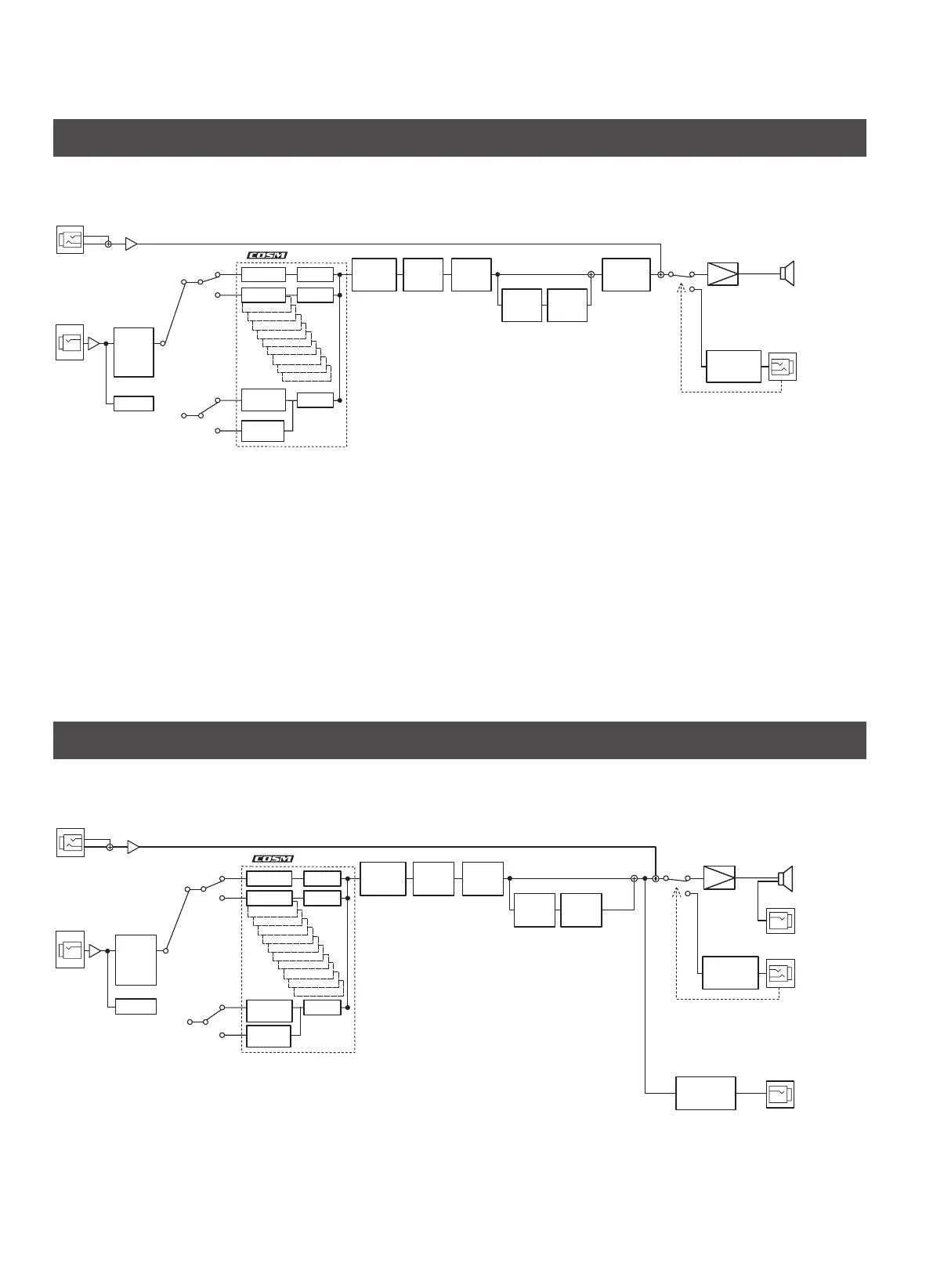

CUBE-40XL – Blockschaltbild
SELECT
SELECT
AMPLIFIER
AUX IN
INPUT
MUTE
POWER
AMP
SPEAKER
RECORDING OUT /
PHONES
CABINET &
SPEAKER
SIMULATOR
JC CLEAN
SOLO
JC CLEAN
VOLUME
VOLUME
VOLUME
SOLO
EFX
CHORUS/
TREMOLO
DELAY
LOOPER
VOLUME
DYNA AMP
EXTREME
R-FIER
BLACK PANEL
BRIT COMBO
TWEED
CLASSIC STACK
METAL
ACOUSTIC SIM
LEAD
EFX
FLANGER/
PHASER/
HEAVY
OCTAVE
REVERB
POWER
SQUEEZER
TUNER
LOOPER
LEAD
SOLO
* Wenn die REC OUT/PHONES-
Buchse verwendet wird,
wird über den Lautsprecher
des Geräts kein Sound
ausgegeben.
CUBE-80XL – Blockschaltbild
AMPLIFIER
AUX IN
INPUT
MUTE
POWER
AMP
SPEAKER
EXT SPEAKER
RECORDING OUT /
PHONES
CABINET &
SPEAKER
SIMULATOR
CABINET &
SPEAKER
SIMULATOR
JC CLEAN VOLUME
SOLO
EFX
CHORUS/
TREMOLO
DELAY
LOOPER
VOLUME
LINE OUT
SELECT
SELECT
DYNA AMP
EXTREME
R-FIER
BLACK PANEL
DLX COMBO
BRIT COMBO
TWEED
CLASSIC STACK
METAL
VOLUME
ACOUSTIC SIM
LEAD
VOLUME
EFX
FLANGER/
PHASER/
HEAVY
OCTAVE
REVERB
TUNER
LOOPER
LEAD
SOLO
JC CLEAN
SOLO
* Wenn die REC OUT/PHONES-
Buchse verwendet wird, wird
über den Lautsprecher des
Geräts kein Sound ausgegeben.

Roland CUBE-80XL Specifications

General

Power Output	80 W
Looper	80 seconds
Channels	2
Delay/Reverb	Yes
Speaker	12 inch
Effects	Chorus, Flanger, Phaser, Tremolo
Type	Guitar Amplifier
Controls	Gain, Volume, EQ, Effects Level
Connectors	Input, Foot Switch
Inputs	1/4" phone type
Outputs	RECORDING OUT jack: 1/4" phone type
COSM Amp Models	11 types
