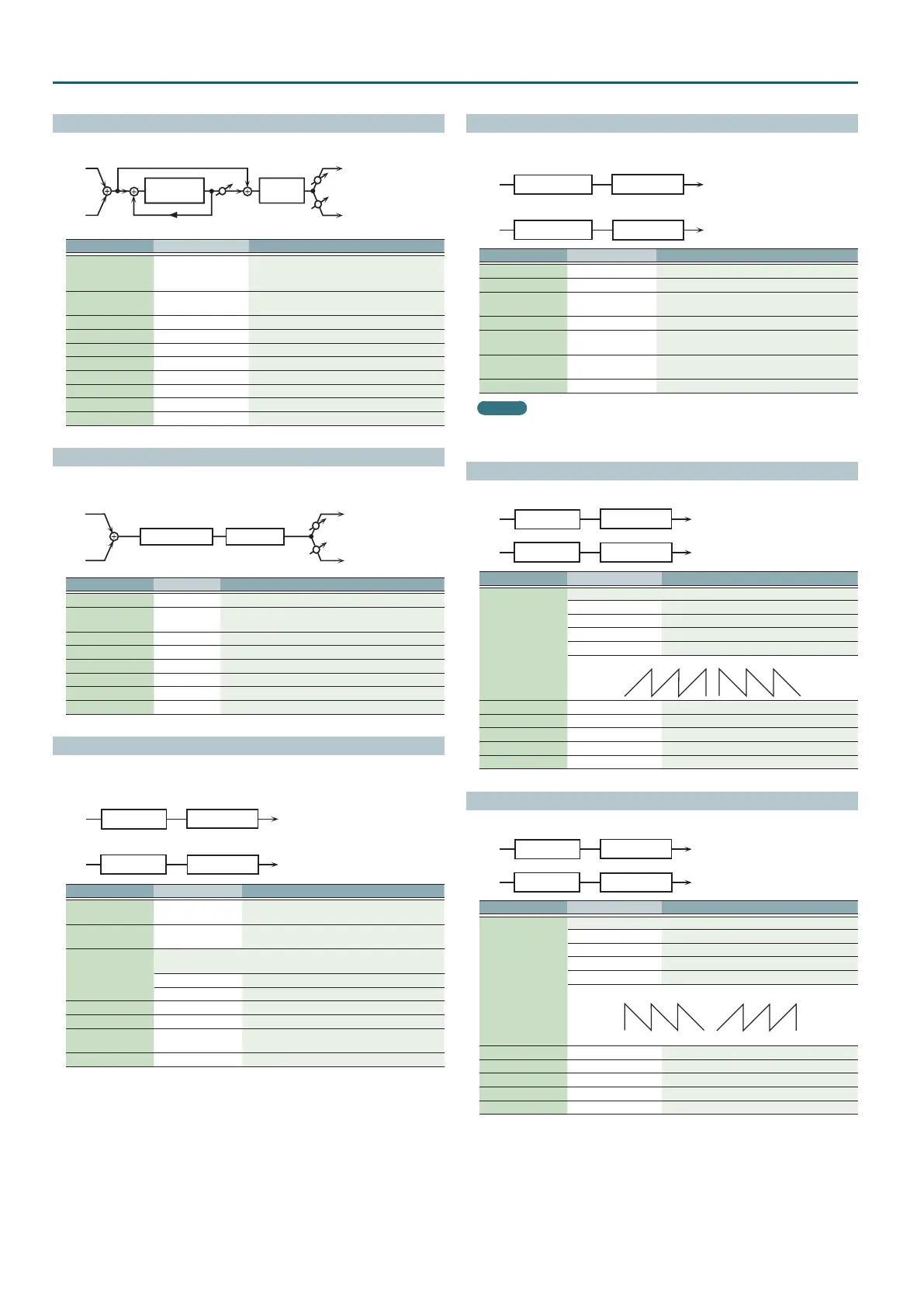

MFX/Chorus/Reverb Parameters
13: MLT STAGE PHASER
Extremely high settings of the phase dierence produce a deep phaser eect.
Resonance
Mix
L in
R in
L out
R out
Pan R
Pan L
2-Band
EQ
Multi Stage
Phaser
Parameter Value Explanation
Mode
4-STAGE, 8-STAGE,
12-STAGE, 16-STAGE,
20-STAGE, 24-STAGE
Number of phaser stages
Manual # 0–127
Adjusts the basic frequency from which the
sound will be modulated.
Rate # 0.05–10.00[Hz], note Frequency of modulation
Depth 0–127 Depth of modulation
Resonance # 0–127 Amount of feedback
Mix # 0–127 Level of the phase-shifted sound
Pan # L64–63R Stereo location of the output sound
Low Gain -15–+15[dB] Gain of the low range
High Gain -15–+15[dB] Gain of the high range
Level 0–127 Output level
14: INFINITE PHASER
A phaser that continues raising/lowering the frequency at which the sound is
modulated.
Infinite Phaser 2-Band EQ
L in
R in
L out
R out
Pan R
Pan L
Parameter Value Explanation
Mode 1–4 Higher values will produce a deeper phaser eect.
Speed # -100–+100
Speed at which to raise or lower the frequency at which
the sound is modulated (+: upward / -: downward)
Resonance # 0–127 Amount of feedback
Mix # 0–127 Volume of the phase-shifted sound
Pan # L64–63R Panning of the output sound
Low Gain -15–+15[dB] Amount of boost/cut for the low-frequency range
High Gain -15–+15[dB] Amount of boost/cut for the high-frequency range
Level 0–127 Output level
15: RING MODULATOR
This is an eect that applies amplitude modulation (AM) to the input signal,
producing bell-like sounds. You can also change the modulation frequency in
response to changes in the volume of the sound sent into the eect.
L in
R in
L out
R out
Ring Mod
2-Band EQ
2-Band EQ
Ring Mod
Parameter Value Explanation
Frequency # 0–127
Adjusts the frequency at which modulation is
applied.
Sens # 0–127
Adjusts the amount of frequency modulation
applied.
Polarity
Determines whether the frequency modulation moves towards higher
frequencies or lower frequencies.
UP Higher frequencies
DOWN Lower frequencies
Low Gain -15–+15[dB] Gain of the low frequency range
High Gain -15–+15[dB] Gain of the high frequency range
Balance # D100:0W–D0:100W
Volume balance between the direct sound (D)
and the eect sound (W)
Level 0–127 Output level
16: STEP RING MOD
This is a ring modulator that uses a 16-step sequence to vary the frequency at which
modulation is applied.
L in
R in
L out
R out
Step Ring Mod
2-Band EQ
2-Band EQ
Step Ring Mod
Parameter Value Explanation
Step 01–16 0–127 Frequency of ring modulation at each step
Rate # 0.05–10.00[Hz], note Rate at which the 16-step sequence will cycle
Attack # 0–127
Speed at which the modulation frequency
changes between steps
Low Gain -15–+15[dB] Amount of boost/cut for the low-frequency range
High Gain -15–+15[dB]
Amount of boost/cut for the high-frequency
range
Balance # D100:0W–D0:100W
Volume balance of the original sound (D) and
eect sound (W)
Level 0–127 Output level
MEMO
You can use MFX control to restart the step sequence from the beginning (p. 18,
p. 24).
17: TREMOLO
Cyclically modulates the volume to add tremolo eect to the sound.
L in
R in
L out
R out
Tremolo
2-Band EQ
2-Band EQ
Tremolo
Parameter Value Explanation
Mod Wave
Modulation Wave
TRI Triangle wave
SQR Square wave
SIN Sine wave
SAW1, 2 Sawtooth wave
SAW1 SAW2
Rate # 0.05–10.00[Hz], note Frequency of the change
Depth # 0–127 Depth to which the eect is applied
Low Gain -15–+15[dB] Gain of the low range
High Gain -15–+15[dB] Gain of the high range
Level 0–127 Output level
18: AUTO PAN
Cyclically modulates the stereo location of the sound.
L in
R in
L out
R out
Auto Pan
2-Band EQ
2-Band EQ
Auto Pan
Parameter Value Explanation
Mod Wave
Modulation Wave
TRI Triangle wave
SQR Square wave
SIN Sine wave
SAW1, 2 Sawtooth wave
SAW1 SAW2
L
R
L
R
Rate # 0.05–10.00[Hz], note Frequency of the change
Depth # 0–127 Depth to which the eect is applied
Low Gain -15–+15[dB] Gain of the low range
High Gain -15–+15[dB] Gain of the high range
Level 0–127 Output level
