Chapter 1 Introduction
1-2 Part Names and Functions
27
Chapter 1 Introduction

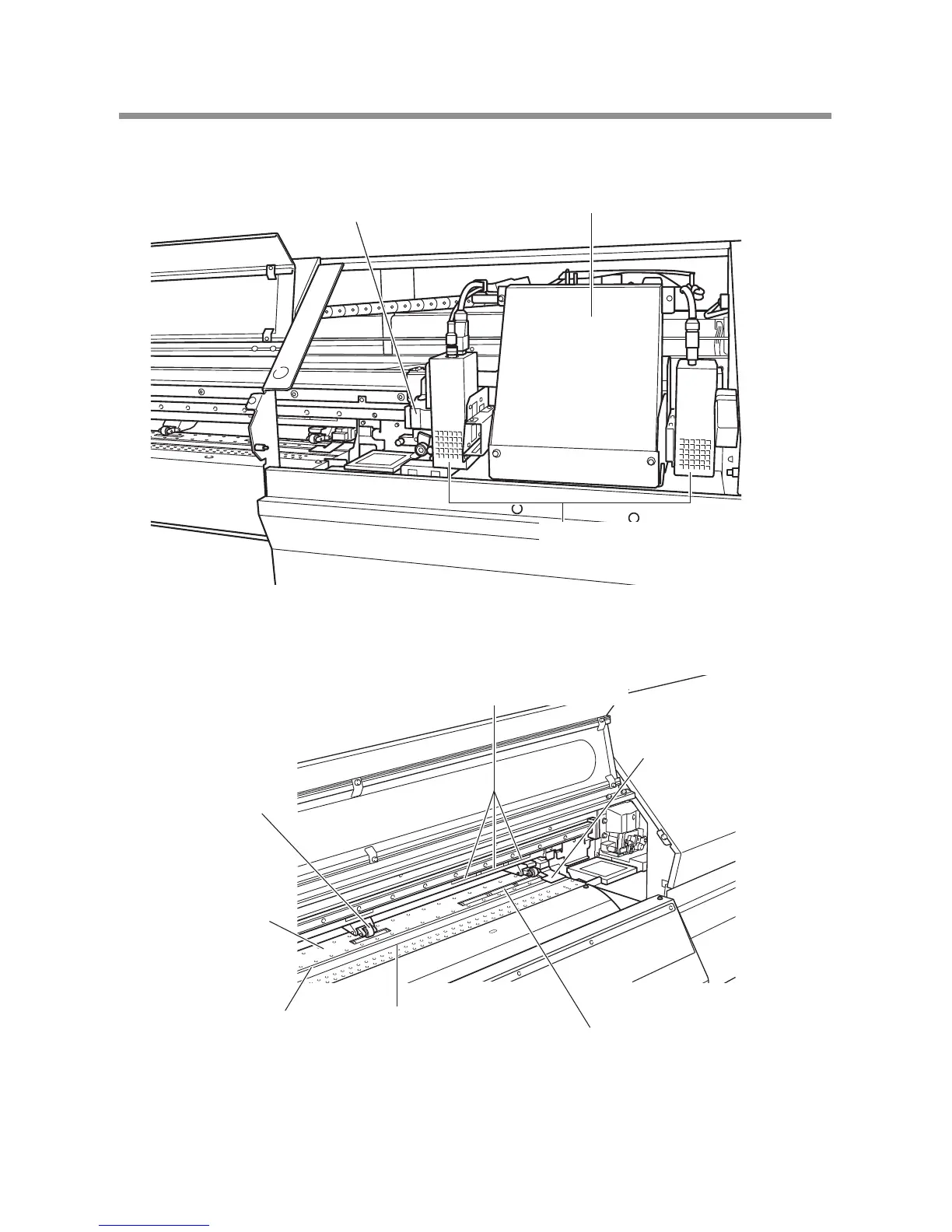

Grit rollers
These rollers move the media
forward and backward.
Knife guide
The separating knife passes
through this when you per-
form media cuto.
Blade protection
This protects the tip of the
blade during cutting.
Platen
This is the path over
which the media
passes. A suction
fan that keeps the
media from com-
ing loose are built
in.
Pinch rollers
These clamp the me-
dia when the loading
lever is pulled back
toward you.
Grit patterns
These indicate the locations of the grit
rollers. The pinch rollers must always be
placed within the area indicated by each
of these patterns.
Media clamps
These keep the media from
coming loose and prevent
fuzz on the cut edge of the
media from touching the
print heads.
Print-head carriage
The print heads are inside this.
Cutting carriage
The blade and the separating knife
are inside here.
UV emitter
This is the ultraviolet (UV) LED. It emits
light only during printing.
*The gures in this document depict the LEC-330.
