Correcting for Misalignment in Bidirectional Printing
19
2. Changes to the User’s Manual2. Changes to the User’s Manual
Corrections Performed from the [MEDIA SETTING] Menu

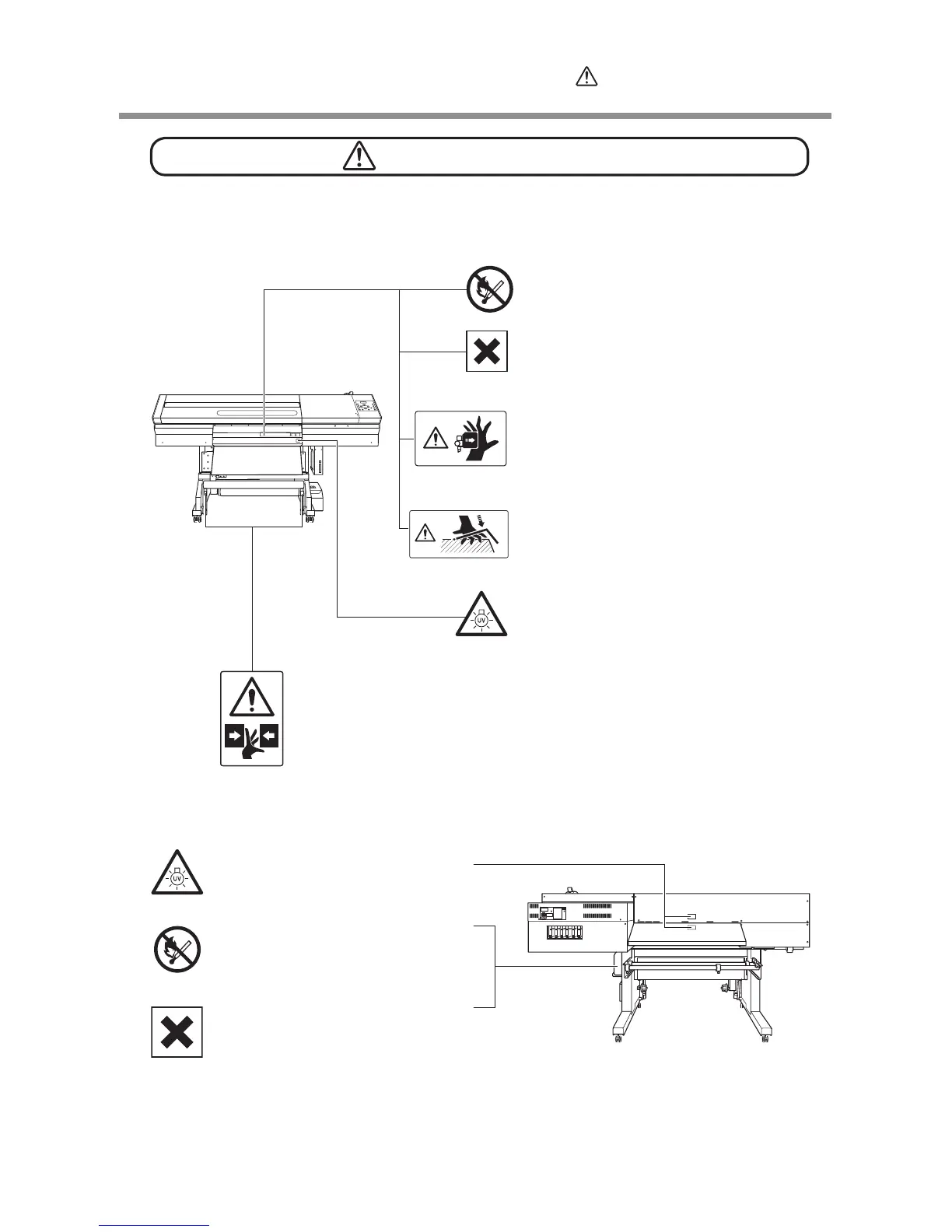

Models : LEC-540, LEJ-640
Articles in the User’s Manual
* This section only discusses the procedure for setting [ADJUST BI-DIR] on the [MEDIA SETTING] menu. For other setting
items, follow the instructions in the User’s Manual.
LEC-540
Procedure 4. “Performing the correction for misalignment in bidirectional printing” in
“Setup of Media ([MEDIA SETTING] menu)”
LEJ-640
Procedure 3. “Performing the correction for misalignment in bidirectional printing” in
“Setup of Media ([MEDIA SETTING] menu)”
Performing the correction for misalignment in bidirectional printing

Press to select [SET].
Press
to enable the setting.
The test pattern of bidirectional correction is output.

When the left gure is displayed, press .

Press to select [1] or [2].
Use
to set the correction value.
Select a correction value for “Simple No.1” in 1 and a correction value for
“Simple No.2” in 2.
Press to enable the setting.
To decide a Correction Value
Choose the value that produces the least misalignment of 2 lines.
When wavering between two numbers, select half value.
Simple No.1
Simple No.2
Current correction value
Current correction value
The least misalignment
This machine prints by the bidirectional mode (in which the print heads perform printing during
both their outbound pass and return pass). This printing method is called "Bidirectional Printing."
This method oers the advantage of being able to shorten output times, but subtle misalignment
occurs during the outbound and return passes. The procedure to correct this and eliminate
misalignment is "Bidirectional Correction."
ADJUST BI-DIR
[SET] NEXT
INPUT
ADJ. VALUES
ADJUST BI-DIR
1 ： 0 2 ： 0
