Roland R4000 User Manual

Manual
Weld Seam Detection System R4000 SND40
for Tubes, Cans and Drums
Technical data
B0059001 / Rev. 2.3
106
ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33

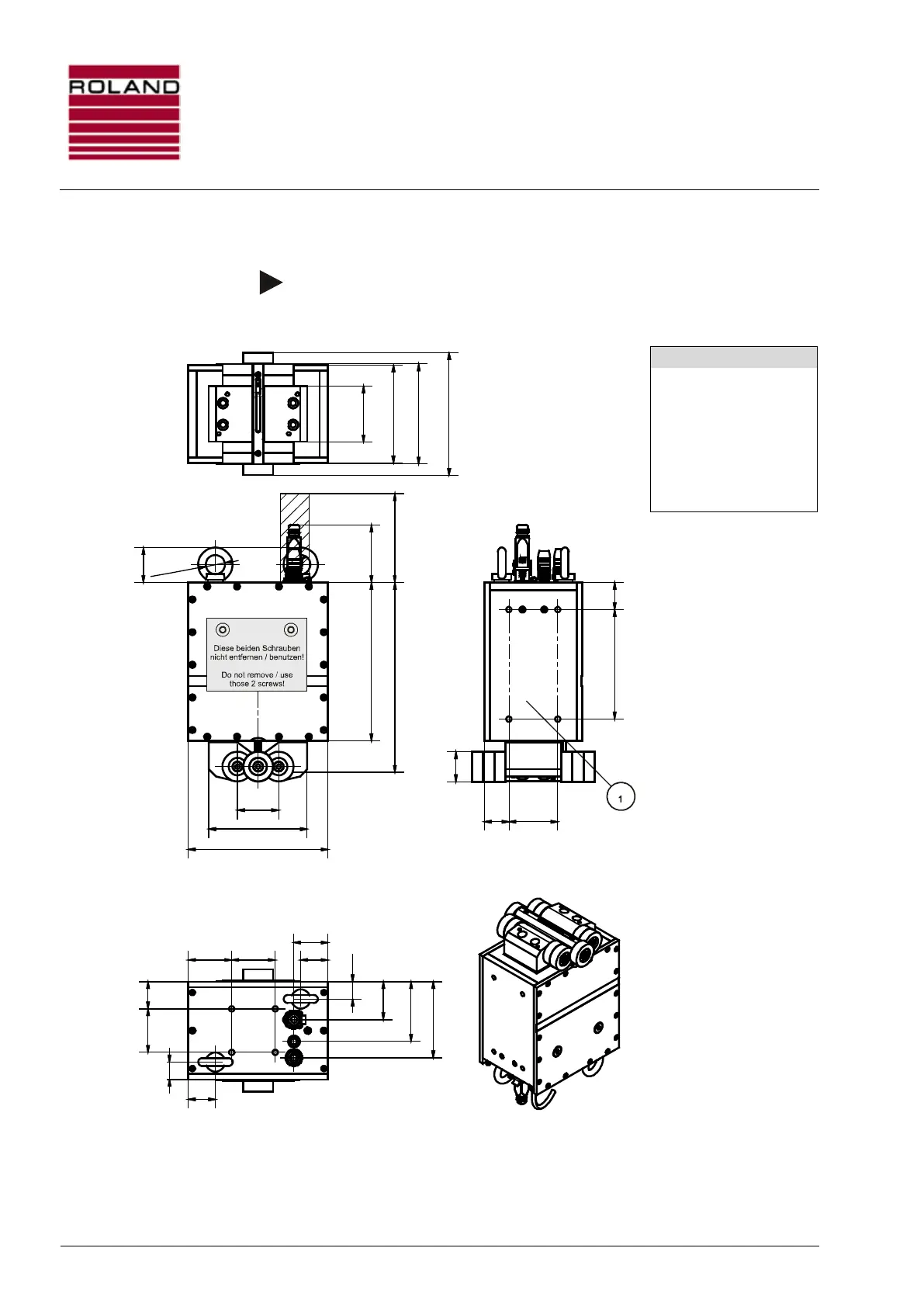

9.16.1 NS24-EC18x185 NT10-100-S Technical drawing
Note! When using the supplied rubber mounts, the total width
extends (for 90 mm, 45 mm per mount) from 257 mm to
347 mm.
Description
1 Thread holes M12 for
mounting the sensor.
Do not screw in the
mounting screws in for
more than
15 mm, since otherwise
the internal components
will be damaged.
Fig. 52: NS24-EC18x185 NT10-100-S Technical drawing NS24-EC18x185 NT10-100-S.wmf
Pos: 92 /Schw eissnaht/Senso ren/NS24/ NS24-EC30x185N T10-100- S Technische Daten @ 0\mod_1188219 837453_501. docx @ 4605 @ 22 @ 1
103 180
225,4
291,5
349,64
76
105,5
181
257
201,5
50
45

55

3
5
2
x
184,2
90
64
62,5
70
140
80
80
5080
50
50
32
32
110
x
