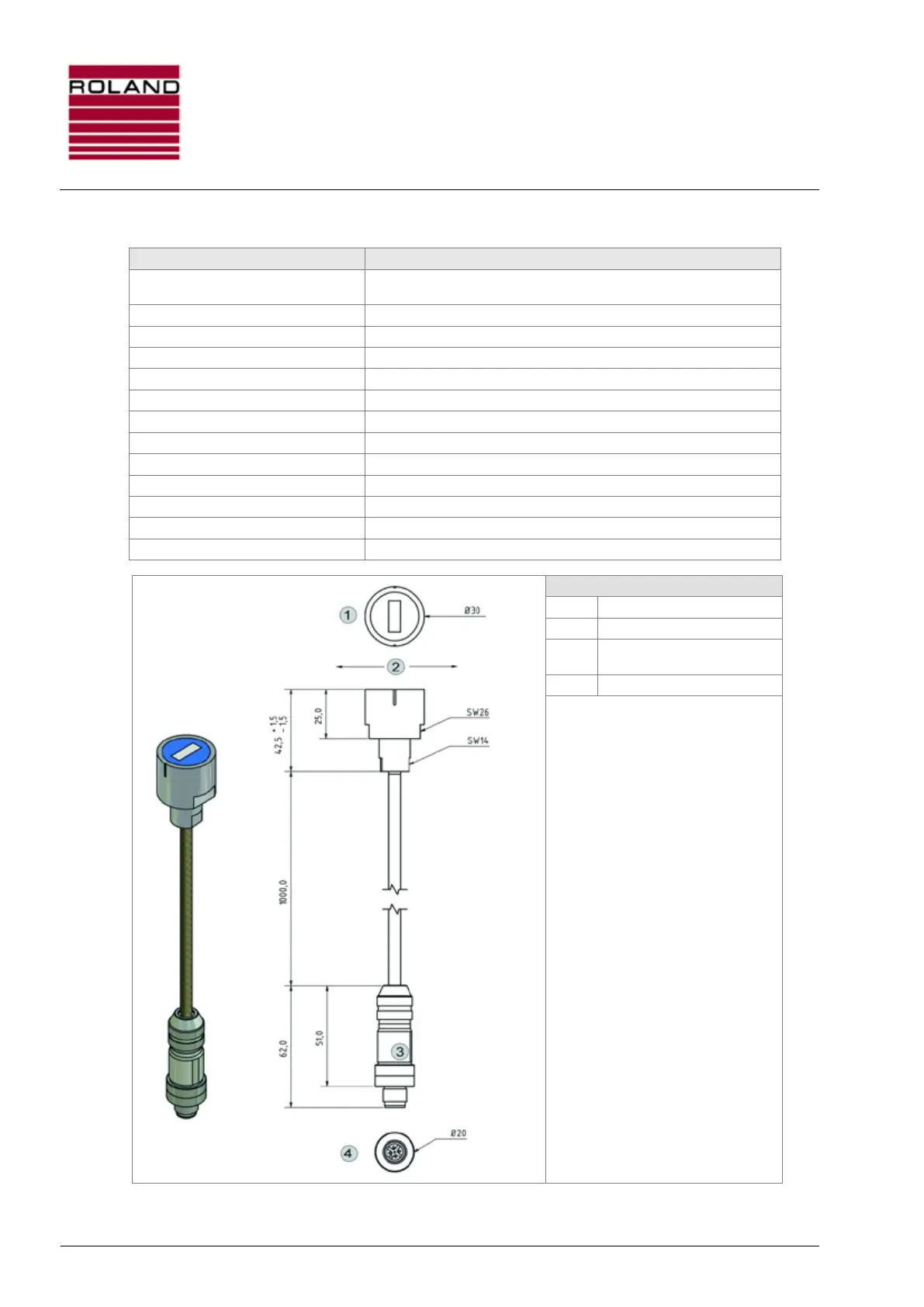

9.21 Eddy current probe EC30x25IT10-100-S
Technical data
Application:
Round material
Flat material
Diameter of tube: unlimited
Wall thickness: Depending on material
Measuring principle: Eddy current
Arrangement: axial
Width of track: 16 mm
Width of measuring patch: 20 mm
Ambient temperature: 10 - 40 °C (50 – 104°F) (operation)
Class of protection: IP65
Weight: 0.3 kg (0.66 lbs)
Material of enclosure: Stainless steel
Sensor cable: SM18CECM18S-GG
Sensor Connection Box: SCB-EC-S
Description
1: View – active area
2: Direction of material flow
3:
Cable plug
order no.: 2277704
1: View – active area
All dimensions in mm
Fig. 59: EC30x25IT10-100-S
