Technical data
ROLAND ELECTRONIC GmbH · Otto-Maurer-Str. 17 · DE 75210 Keltern · Phone +49 (0)7236-9392-0 · Fax +49 (0)7236-9392-33
125
9.32 Rubber mounts for NS24
Properties
Material: NBR (Acrylnitril-Butadien)
Metal parts zinc plated and
chromated
Weight: approx. 0.4 kg (0.88 lbs)
Hardness: 55+ / -5 Shore A
All dimensions in mm.

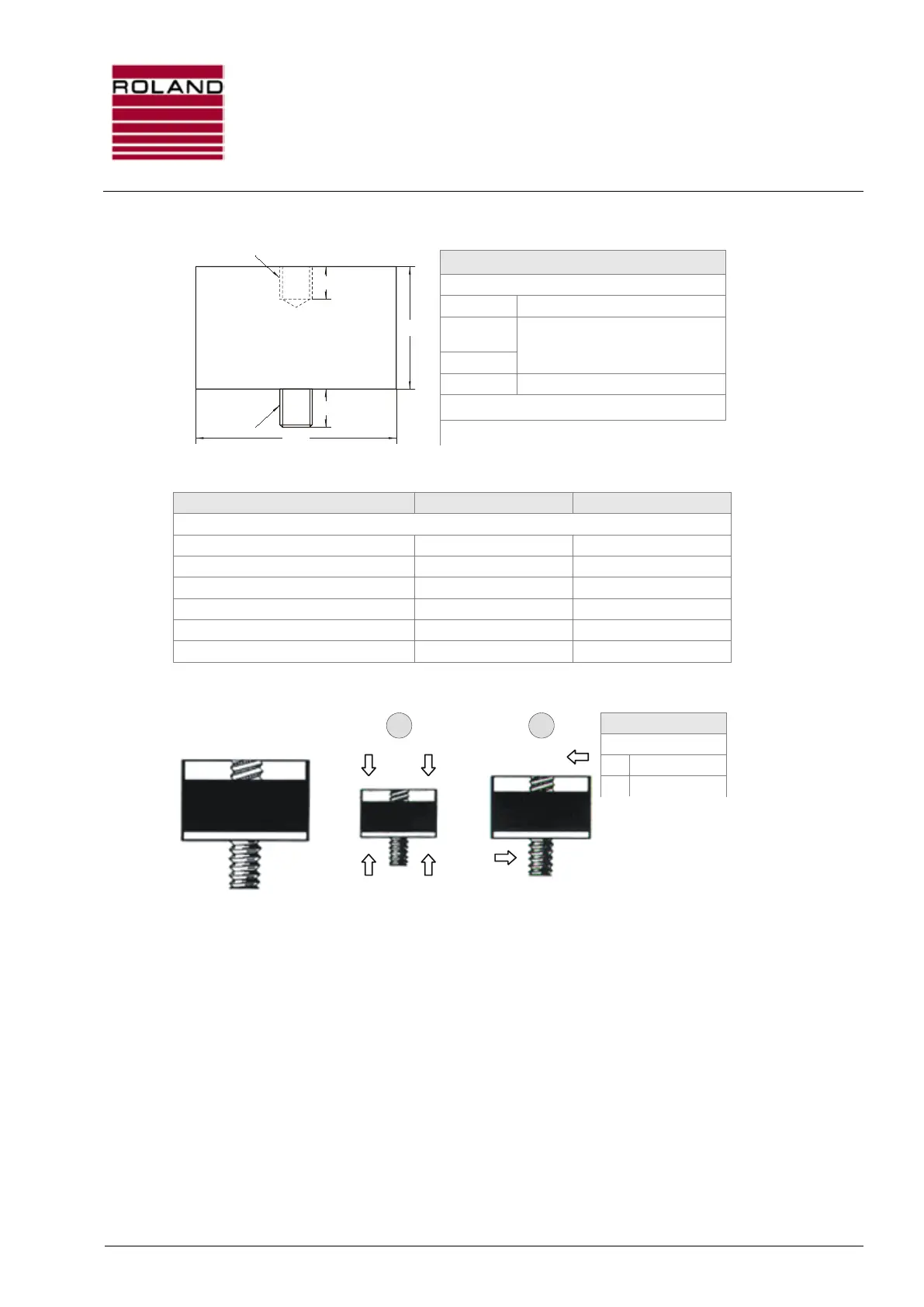

Fig. 74: Rubber mounts
Further properties
Spring rate (compression): 600 N/mm 3500 lbs/in.
Max. compression travel: 4.5 mm 0.18 in.
Max. compression force: 2900 N 600 lbs
Spring rate (shearing): 120 N/mm 700 lbs/in.
Max. shear travel: 10 mm 0.39 in.
Max. shear force: 1200 N 250 lbs
Description
1: Compression
2: Shearing
Fig. 75: Rubber conditions
M12
M12
Ø 75
45
14
12
1
2
