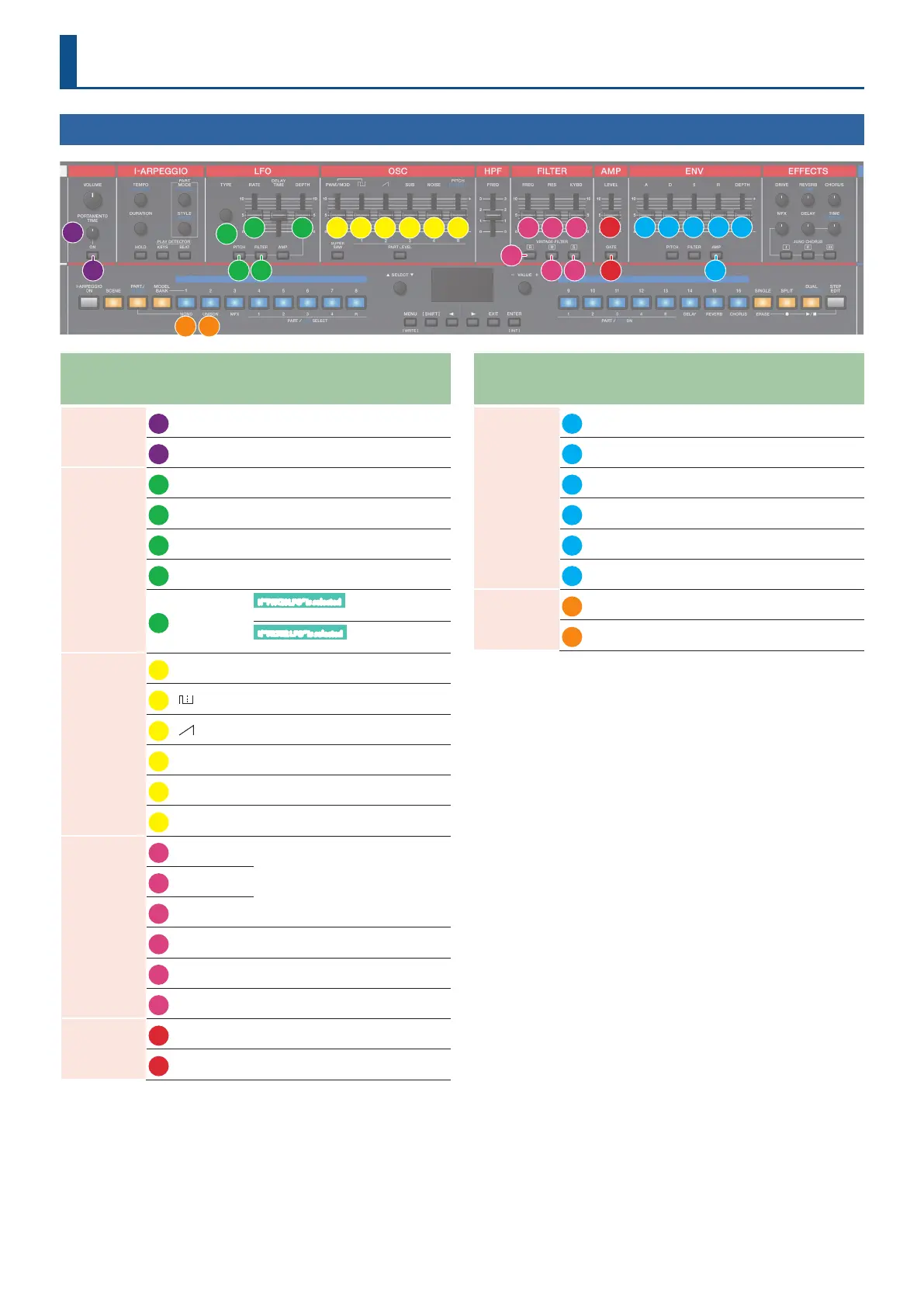

Controls on the JUNO-X and Their Associated Parameters
5
6
1
2
9 11 13 12 8 19
20
10 7 17 18
27
28 29
23 24 25 26
14
15 3 4 16 21 22
Parameter Guide
Section Controller Parameter
Destination or
operation when
used with the
[SHIFT] button
PORTAMENTO
1
ON Select PORTA ON
SH-101 TONE EDIT:
PORTA MODE
2
TIME PORTA TIME
SH-101 TONE EDIT:
PORTA TIME
LFO
3
PITCH Select PITCH LFO -
4
FILTER Select FILTER LFO -
5
TYPE LFO WAVEFORM
SH-101 TONE EDIT:
LFO WAVEFORM
6
RATE LFO RATE
SH-101 TONE EDIT:
LFO RATE
7
DEPTH
If “PITCH LFO” is selected
OSC LFO MOD
SH-101 TONE EDIT:
OSC LFO MOD
If “FILTER LFO” is selected
FILTER MOD
SH-101 TONE EDIT:
FILTER MOD
OSC
8
PWM/MOD PULSE WIDTH MOD
SH-101 TONE EDIT:
PULSE WIDTH MOD
9
PW LEVEL
SH-101 TONE EDIT:
PW LEVEL
10
SAW LEVEL
SH-101 TONE EDIT:
SAW LEVEL
11
SUB SUB OSC LEVEL
SH-101 TONE EDIT:
SUB OSC LEVEL
12
NOISE NOISE LEVEL
SH-101 TONE EDIT:
NOISE LEVEL
13
PITCH OSC RANGE
SH-101 TONE EDIT:
OSC RANGE
FILTER
14
[R]
Select FILTER TYPE
SH-101 TONE EDIT:
VINTAGE FLT TYPE
15
[M]
16
[S]
17
FREQ CUTOFF
SH-101 TONE EDIT:
CUTOFF
18
RES RESONANCE
SH-101 TONE EDIT:
RESONANCE
19
KYBD FLT KEY FOLLOW
SH-101 TONE EDIT:
FLT KEY FOLLOW
AMP
20
GATE Select G-AMP
SH-101 TONE EDIT:
AMP ENV SEL
21
LEVEL AMP LEVEL
SH-101 TONE EDIT:
AMP LEVEL
Section Controller Parameter
Destination or
operation when
used with the
[SHIFT] button
ENV
22
AMP Select ENV F&A -
23
A ENV ATTACK
SH-101 TONE EDIT:
ENV ATTACK
24
D ENV DECAY
SH-101 TONE EDIT:
ENV DECAY
25
S ENV SUSTAIN
SH-101 TONE EDIT:
ENV SUSTAIN
26
R ENV RELEASE
SH-101 TONE EDIT:
ENV RELEASE
27
DEPTH FLT ENV DEPTH
SH-101 TONE EDIT:
FLT ENV DEPTH
PART/FUNC
28
MONO Select SOLO
SH-101 TONE EDIT:
KEY MODE
29
UNISON Select UNISON
SH-101 TONE EDIT:
KEY MODE
* For other parameters, see the “JUNO-X Parameter Guide” (PDF).
