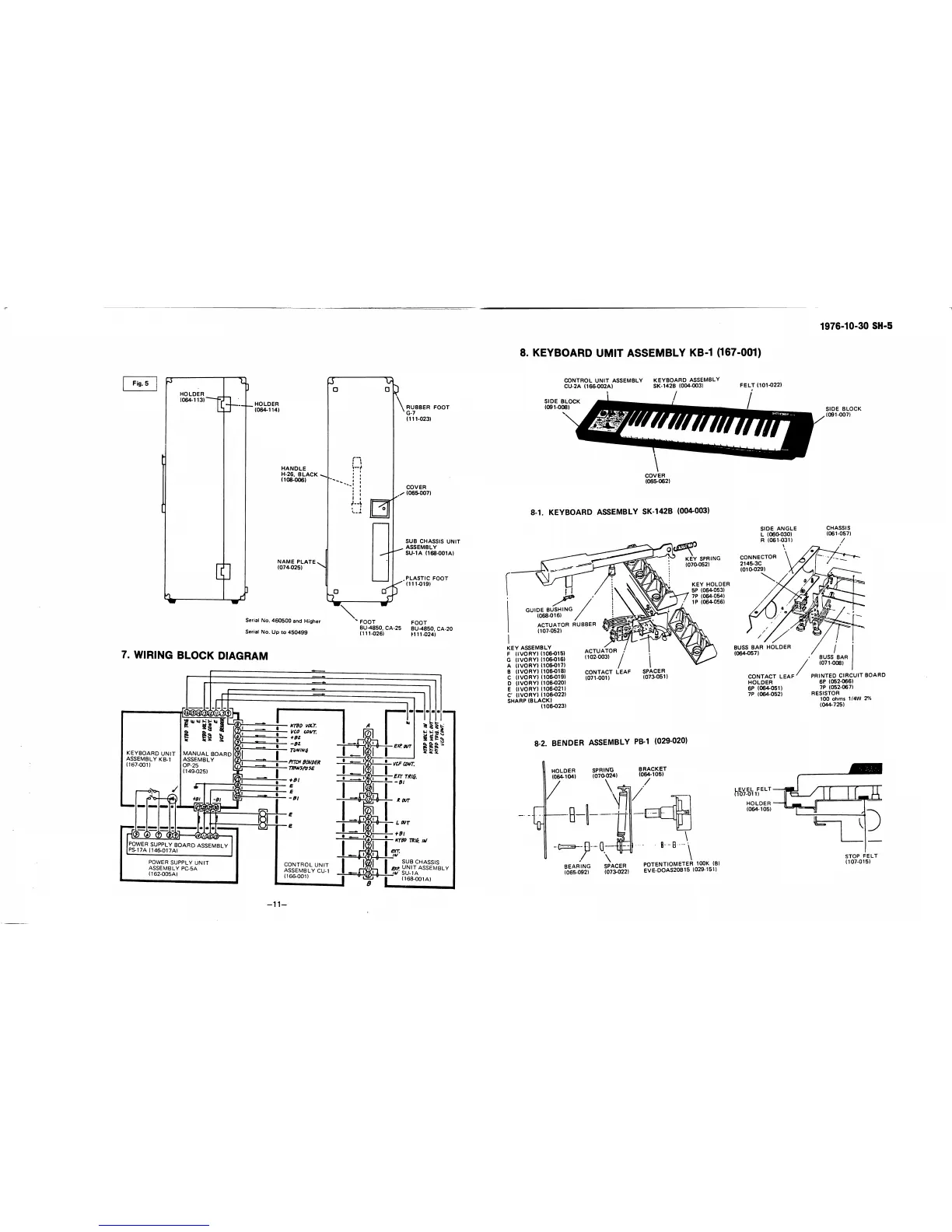

Roland SH-5 - 7. WIRING BLOCK DIAGRAM; 8. KEYBOARD UNIT ASSEMBLY KB-1 (167-001); 8-1. KEYBOARD ASSEMBLY SK-142 B (004-003); 8-2. BENDER ASSEMBLY PB-1 (029-020)

8. KEYBOARD UMIT ASSEMBLY KB-1 (167-001)
1976-10-30 SH-5
Fig. 5
HOLDER
(064-113)'
v
.HOLDER
(064-114)
HANDLE
H-26. BLACK
(108-006)
NAME PLATE
(074-025)
Serial No. 460500 and Higher
Serial No. Up to 450499
RUBBER FOOT
G-7
(111-023)
COVER
(065-007)
SUB CHASSIS UNIT
ASSEMBLY
SU-1A (168-001A)
.PLASTIC FOOT
(111-019)
SFOOT
BU-4850, CA-25
(111-026)
FOOT
BU-4850, CA-20
M11-024)
7. WIRING BLOCK DIAGRAM
KT90 VOLT.
\/CO COVT.
KEYBOARD UNIT
ASSEMBLY KB-1
(167-001)
MANUAL BOARD
ASSEMBLY
OP-25
(149-025)
POWER SUPPLY BOARD ASSEMBLY
PS-17A(146-017A)
I SUB CHASSIS
£r/j UNIT ASSEMBLY
POWER SUPPLY UNIT
ASSEMBLY PC-5A
(162-005 A)
CONTROL UNIT
ASSEMBLY CU-1
(166-001)
SU-1A
I (168-001 A)
CONTROL UNIT ASSEMBLY
CU-2A (166-002A)
KEYBOARD ASSEMBLY
SK-142B (004-003)
FELT (101-022)
SIDE BLOCK
(091-008)
SIDE BLOCK
(091-007)
COVER
(065-062)
8-1. KEYBOARD ASSEMBLY SK-142B (004-003)
SIDE ANGLE
L (060-030)
R (061-031)
\
CHASSIS
(061-057)
KEY SPRING
(070-052)
KEY HOLDER
5P (064-053)
7P (064-054)
1P (064-056)
CONNECTOR
2145-3C
(010-029)
ACTUATOR RUBBER
(107-052)
KEY ASSEMBLY
(IVORY) (106-015)
(IVORY) (106-016)
(IVORY) (106-017)
(IVORY) (106-018)
(IVORY) (106-019)
(IVORY) (106-020)
(IVORY) (106-021)
C (IVORY) (106-022)
SHARP (BLACK)
(106-023)
CONTACT LEAF
(071-001)
SPACER
(073-051)
BUSS BAR HOLDER
(064-057)
CONTACT LEAF'
HOLDER
6P (064-051)
7P (064-052)
BUSS BAR
(071-008)
PRINTED CIRCUIT BOARD
6P (052-066)
7P (052-067)
RESISTOR
100 ohms 1/4W 2%
(044-725)
8-2. BENDER ASSEMBLY PB-1 (029-020)
HOLDER
(064-104)
SPRING
(070-024)
BRACKET
(064-105)
I--B-
"\
HOLDER
(064-105)
BEARING
(065-092)
SPACER
(073-022)
POTENTIOMETER 100K (B)
EVE-DOAS20B15 (029-151)
STOP FELT
(107-015)
-11-
