Roland SH-5 - Bender and VCO Adjustments

1976-10-30 SH-5

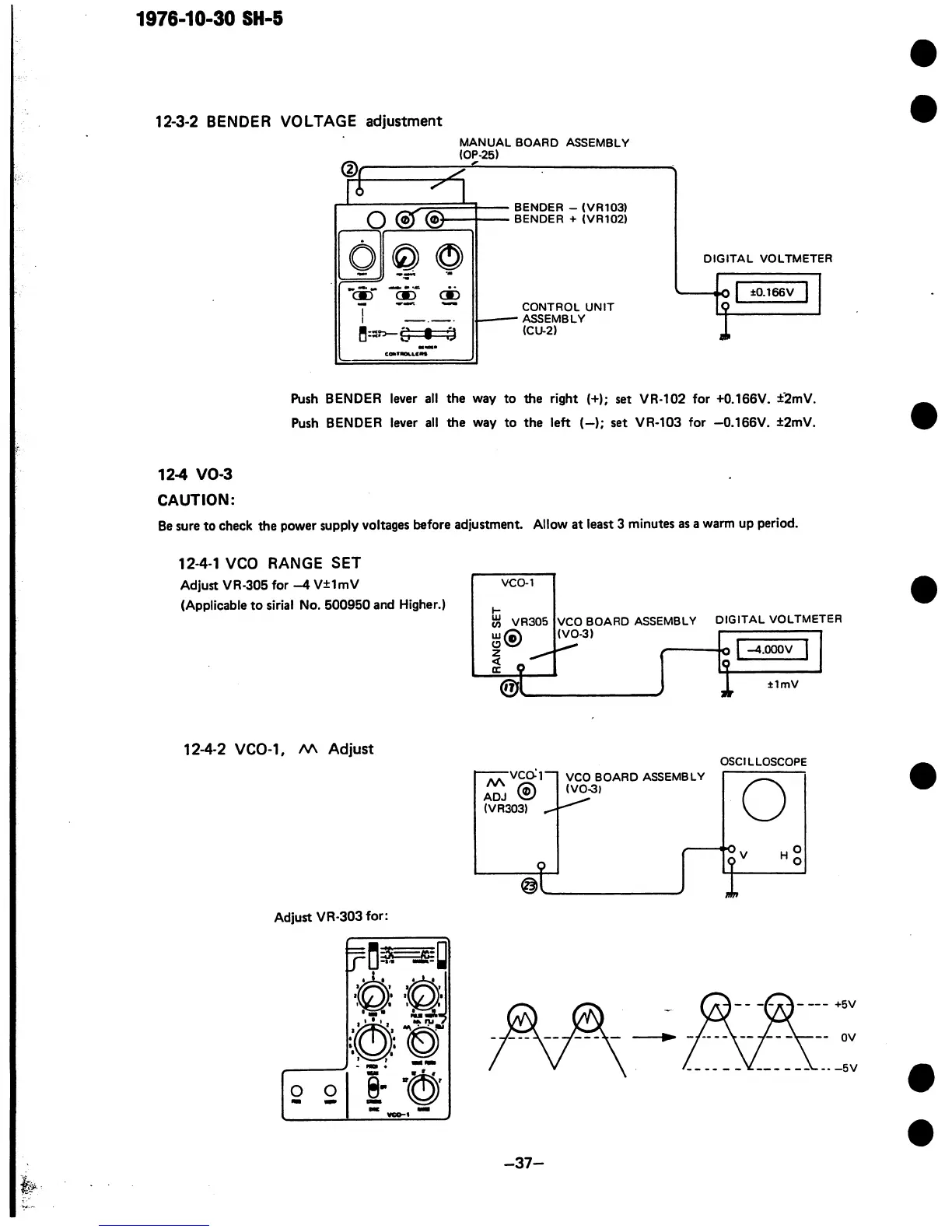

12-3-2 BENDER VOLTAGE adjustment
MANUAL BOARD ASSEMBLY
(OP-25)
BENDER - (VR103)
BENDER + (VR102)
CONTROL UNIT
ASSEMBLY
(CU-2)
DIGITAL VOLTMETER
±0.166V
Push BENDER lever all the way to the right (+); set VR-102 for +0.166V. ±*2mV.
Push BENDER lever all the way to the left (-); set VR-103 for -0.166V. ±2mV.
12-4 VO-3
CAUTION:
Be sure to check the power supply voltages before adjustment. Allow at least 3 minutes as a warm up period.
12-4-1 VCO RANGE SET
Adjust VR-305 for -4 V±1mV
(Applicable to sirial No. 500950 and Higher.)
VCO BOARD ASSEMBLY DIGITAL VOLTMETER
(VO-3)
| -4.000V
±lmV
12-4-2 VCO-1, AA Adjust
Adjust VR-303 for:
OSCILLOSCOPE
AA
ADJ *5
(VR303)
VCO BOARD ASSEMBLY
(VO-3)
/ V \
-37-
