Roland SH-5 - 9-2. CIRCUIT BOARD ASSEMBLY OP-19 A (149-019 A); 9-2 a. CIRCUIT BOARD ASSEMBLY OP-19 B (149-019 B)

1976-10-30 SH-5

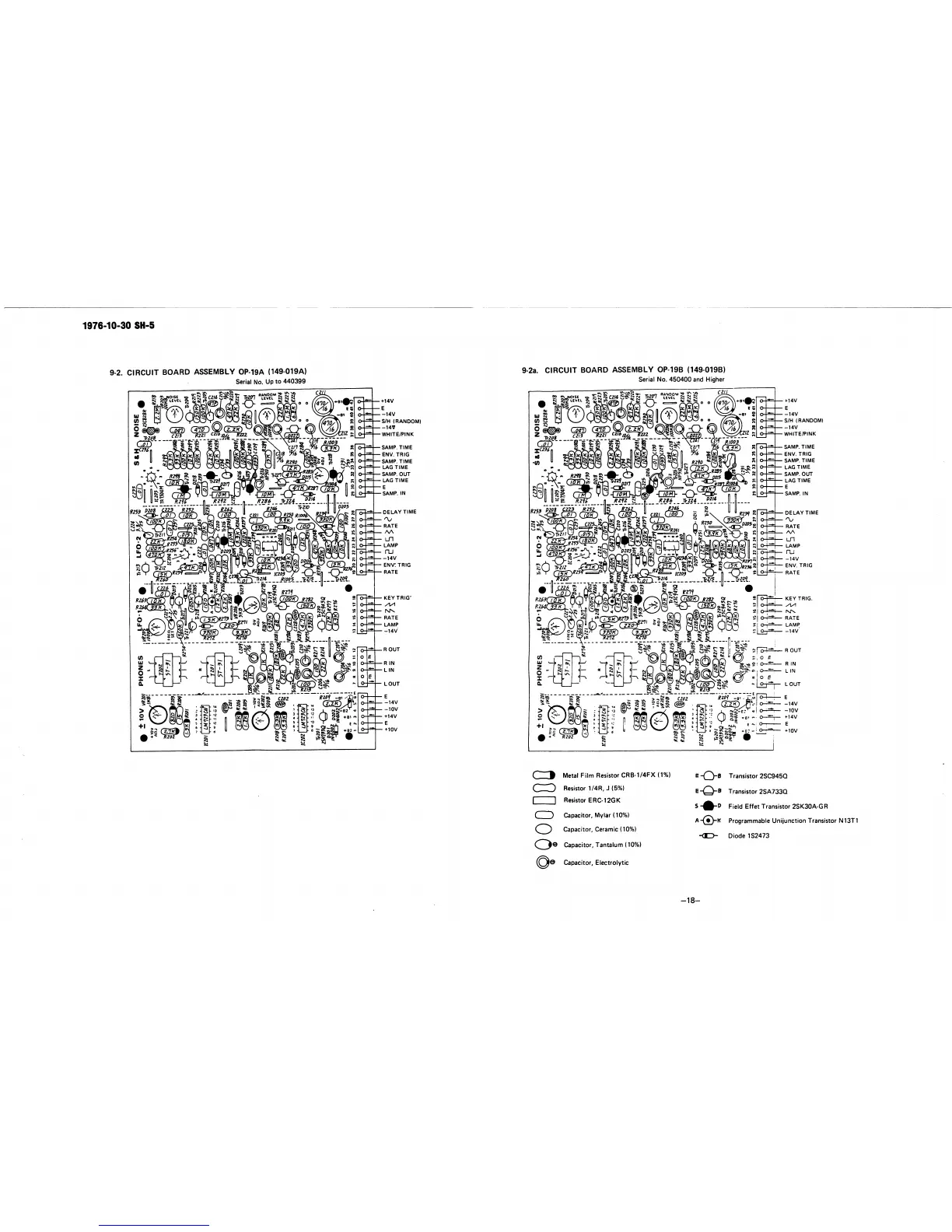

9-2. CIRCUIT BOARD ASSEMBLY OP-19A (149-019A)
Serial No. Up to 440399
+14V
•E
-14V
•S/H (RANDOM)
-14V
WHITE/PINK
•SAMP. TIME
•ENV. TRIG
-SAMP. TIME
LAG TIME
• SAMP. OUT
•LAG TIME
E
•SAMP. IN
9-2a. CIRCUIT BOARD ASSEMBLY OP-19B (149-019B)
Serial No. 450400 and Higher
■ +14V
E
.-14V
-S/H (RANDOM)
•-14V
■WHITE/PINK
- SAMP. TIME
• ENV. TRIG
• SAMP. TIME
LAG TIME
• SAMP. OUT
LAG TIME
E
- SAMP. IN
•DELAY TIME
RATE
AA
LTI
LAMP
ru
-14V
ENV. TRIG
RATE
KEY TRIG.
+1
Metal Film Resistor CRB-1/4FX (1%)
CZ3 Resistor 1/4R, J (5%)
I I Resistor ERC-12GK
C ) Capacitor, Mylar (10%)
Capacitor, Ceramic (10%)
Capacitor, Tantalum (10%)
Capacitor, Electrolytic
E -O"B Transistor 2SC945Q
E "O"B Transistor 2SA733Q
S -^-t> Field Effet Transistor 2SK30A-GR
A-{#J-K Programmable Unijunction Transistor N13T1
Diode 1S2473
-18-
