Roland SH-5 - 10. SUB CHASSIS UNIT ASSEMBLY SU-1 A (168-001 A)

1976-10-30 SH-5
10. SUB CHASSIS UNIT ASSEMBLY SU-1A (168-001 A)
SWITCH
SW-321
(001-018)
JACK
TJ-253-8
(009-008)
CLAMPER
SCF-L40
(047-021)
PACK ASSEMBLY
EX-13A (140-013A)
LONG NUT
M3 x 16.4mm
(120-002)
CHASSIS
(061-084A)
R904
JACK WASHER
(121-005)
JACK
SG-7615 #5
(009-001)
BUSHING
(068-005
PANEL
(072-087A)

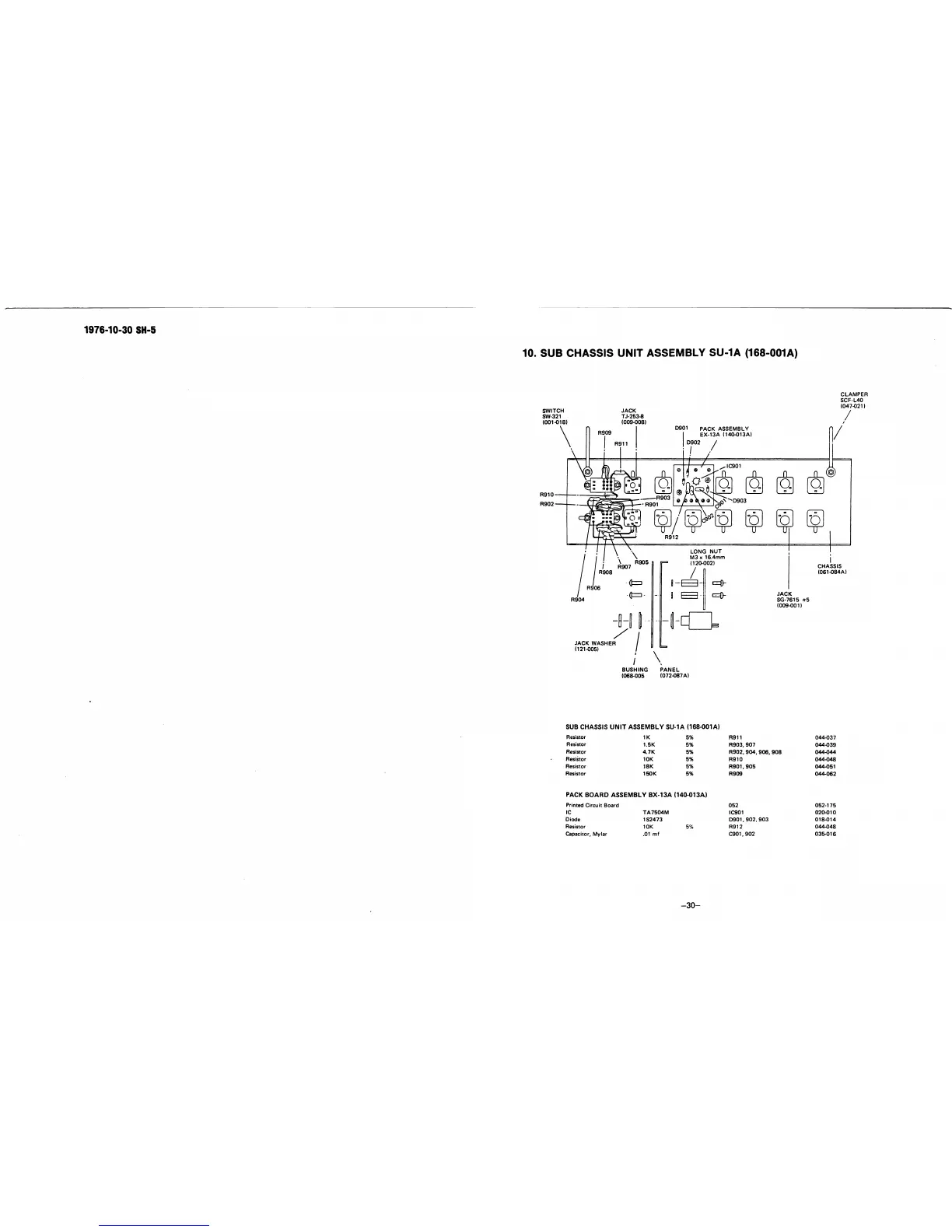

SUB CHASSIS UNIT ASSEMBLY SU-1A (168-001 A)
