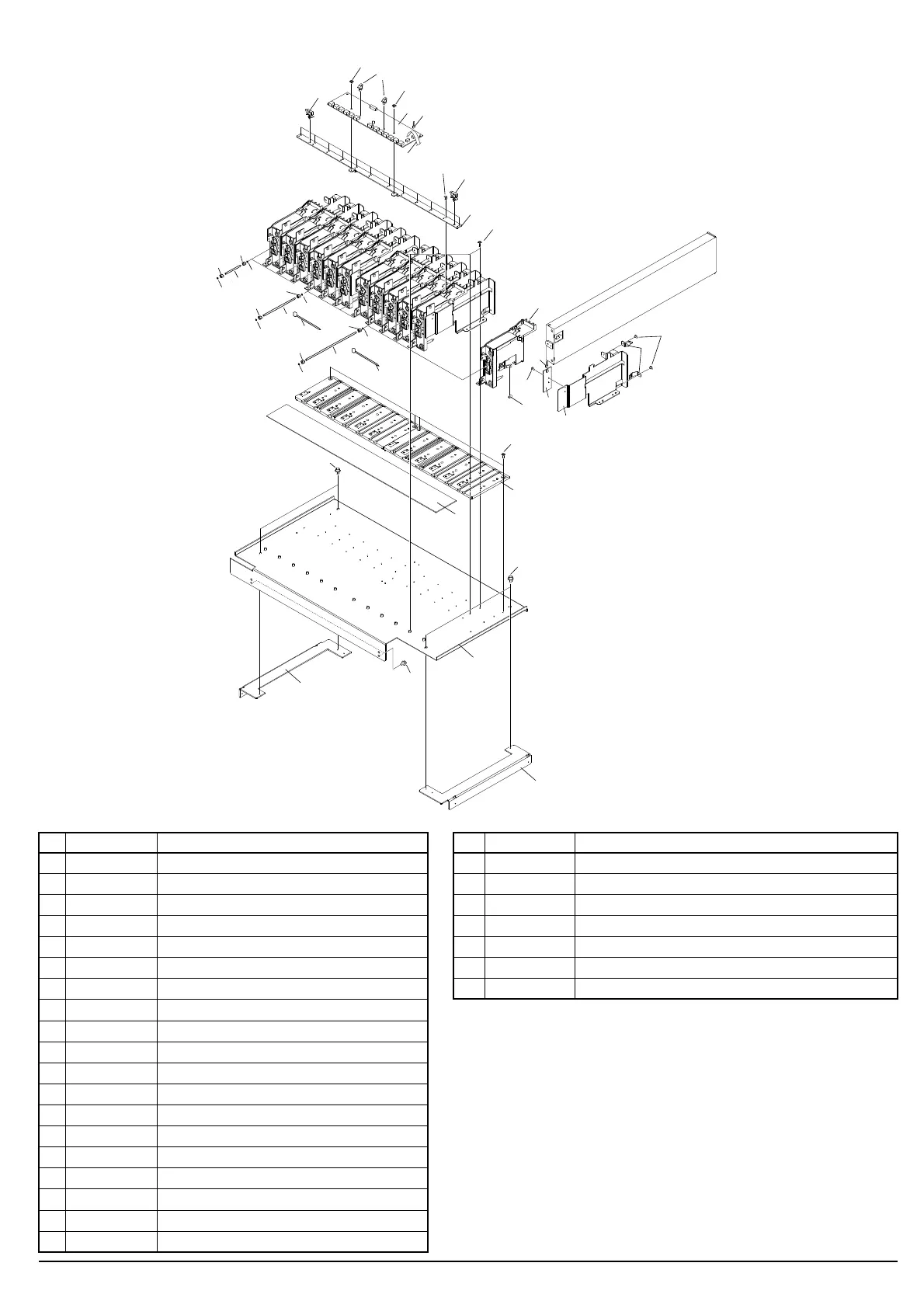

1-9 INK SYSTEM
PARTS LIST -Main Parts- PARTS LIST -Supplemental Parts-
Parts No. Parts Name Parts No. Parts Name
1 11909133 ADAPTER,SCREW 2FAI FJ-50 S1 31289112AS CUPSCREW SET,M3*10 NI 100 PCS.
2 W700311520 ASSY,CARTRIDGE IC BOARD XC-540 S2 31019116AS SCREW SET,BINDING M3*6 3CBC 100 PCS
3 W700311511 ASSY,INK TANK BOARD XC-540 S3 31019801 SCREW,BINDING S-TIGHT M3*6 3C 100PCS
4 1000002058 ASSY,TUBING 2*1100MM XC-540 S4 31049169AS SCREW SET,CAP M4*8 3CBC+PW 20PCS
5 1000002059 ASSY,TUBING 2*1300MM XC-540 S5 31289109AS CUPSCREW SET,M3*4 NI 100 PCS.
6 1000002060 ASSY,TUBING 2*900MM XC-540 S6 31329601AS CLAMP SET,INSULOK T-18S 100 PCS.
7 1000001703 CABLE-ASSY,INK CARTRIDGE XC-540 S7 31409801AS SADDLE,LOCKING WIRE LWS-0711Z 20P
8 1000001683 CABLE-ASSY,INK SERIAL XC-540
9 1000001899 CABLE-CARD,6P1 420L BB HIGH-V
10 11659218 HOLDER,IC SC-500
11 11659149 HOLDER,RING O 2FAI FJ-50
12 1000001473 PLATE,HOLDER I/C XC-540
13 1000001580 PLATE,INK CMCM XC-540
14 1000001509 PLATE,INK JOINT XC-540
15 21475141 SHEET,RAIL CABLE FJ-540
16 22625103 SPRING,PRESS CARTRIDGE SP-300
17 1000001471 STAND,INK CARTRIDGE XC-540
18 1000001542 STAY,I/C XC-540
19 21435109 TUBE,SILICONE 3*5*8 FJ-540
1-14
1
1
11
1
S4
S4
S1
S2
S4
18
17
15
2
12
10
S1
3
S5
S7
S7
S3
14
16
S5
19
13
18
1
1
1
6
4
5
11
11
11
11
11
7
9
8
S6
S6
S7
S5
To Next Page
