Roland SONAR V-STUDIO VS-100 - Signal Flow for SONAR Recording; Signal Flow for WAVE Recorder

42
Connections and signal flow

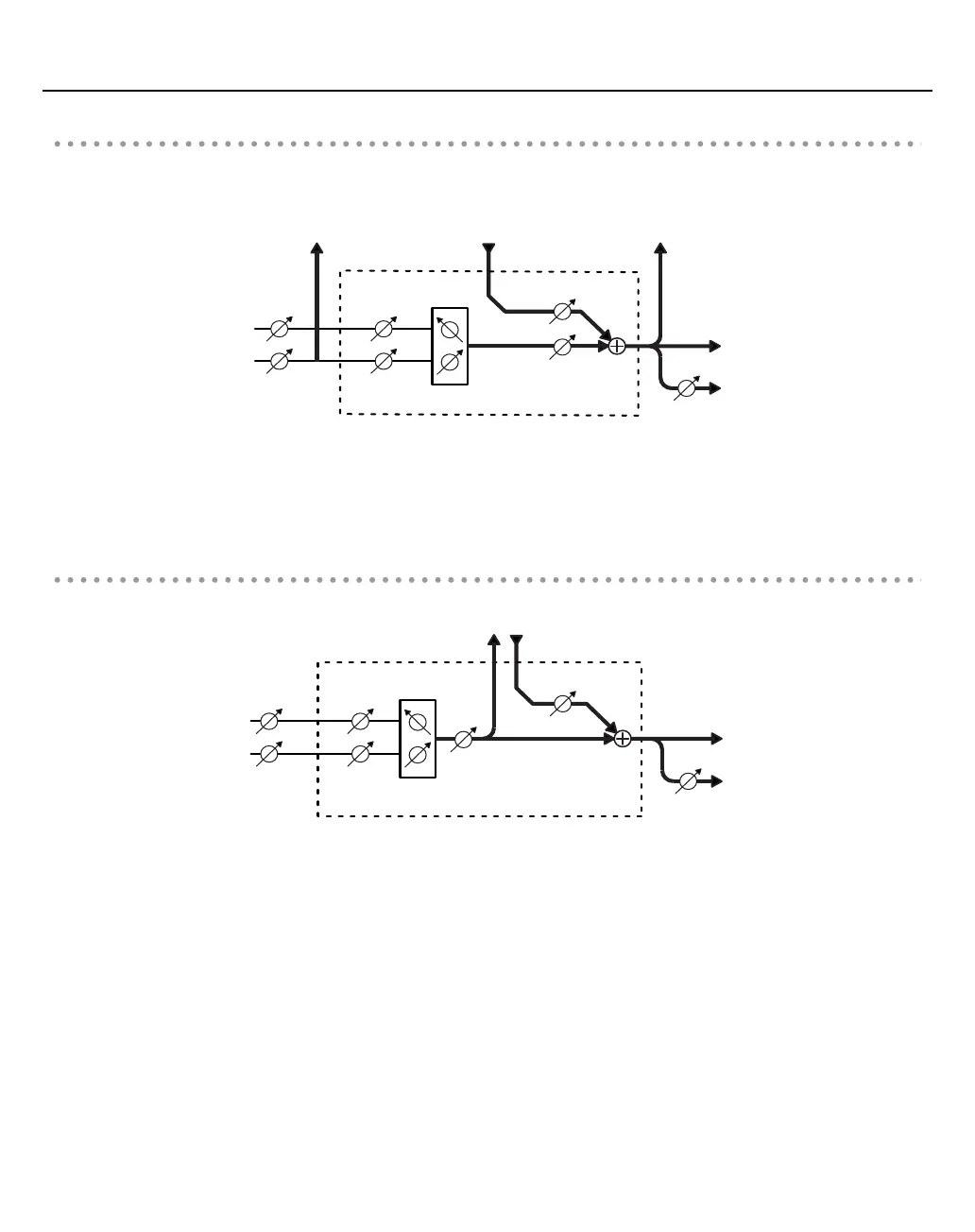

Signal flow when recording with SONAR
fig.routing01.eps
If you connect the SONAR V-STUDIO 100 to your computer with a USB cable, you can use SONAR to record sounds
input to INPUT 1L/INPUT 2R.
* The [PAN] knob does not have any effect on USB audio.
Signal flow when recording with the WAVE recorder
fig.routing02.eps
If the SONAR V-STUDIO 100 is not connected to a computer, the WAVE recorder function is available. Press the
Record button to record sounds input to INPUT 1L/INPUT 2R.
To adjust the balance between the sounds input to INPUT 1L and INPUT 2R, use the [PAN] knob.
For more information about using the WAVE recorder function, see “Using the WAVE recorder” (p. 26).
INPUT
MAIN OUTPUT 1/2
To USB
1L
2R
MIXER
[SENS]
[LEVEL]
[MAIN MIX]
[PLAYBACK]
[VOLUME]
[PAN]
WAVE IN
1-2
WAVE OUT
1-2
WAVE IN
MAIN
PHONES output
INPUT
MAIN OUTPUT 1/2
PHONES output
1L
2R
MIXER
[SENS]
[LEVEL]
[MAIN MIX]
[PLAYBACK]
[VOLUME]
[PAN]
To WAVE RECORDER
