Example 2: Full Set Kit
If you wish to connect a hi-hat control pedal (FD-7; sold separately) to the HH CTRL/TRIG 4 jack, set
the [HH CTRL/TRIG 4] select switch (p. 40) to HH CTRL. If you wish to connect an external pad, set the
switch to TRIG 4.

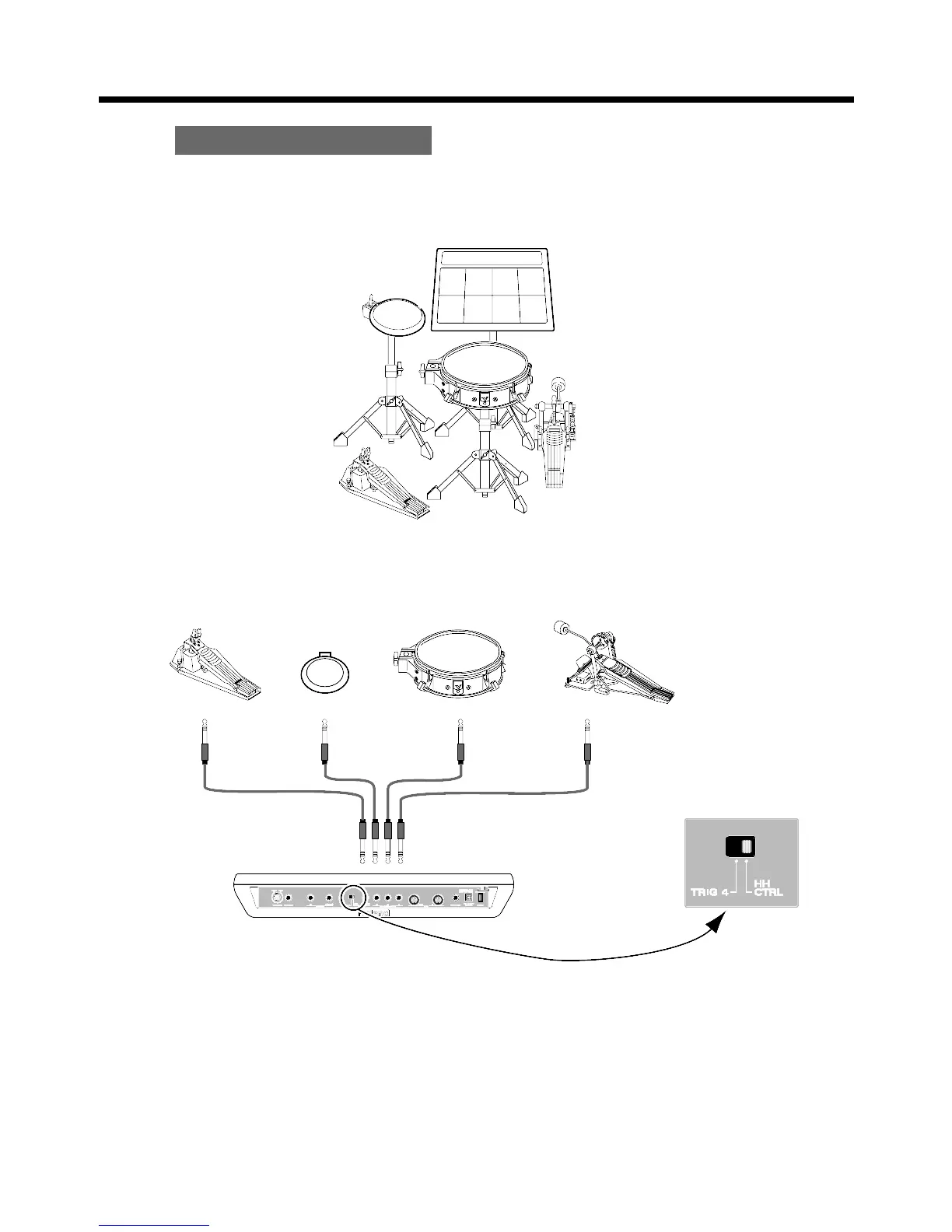

fig.39
Set to HH CTRL
TRIGGER INPUT (1–3)
HH CTRL
/TRIG 4
TRIG 1
TRIG 2TRIG 3
HH CTRL/TRIG 4
Pad (PD-7)
Pad (PD-120) Kick Trigger Unit (KD-7)
+ Kick Pedal
Hi-Hat Control Pedal (FD-7)
Roland
Tom1
Crash Splash Ride China
Tom2 Tom3 Tom4
Kick
Snare
Hi-Hat
Hi-Hat Control Pedal
