Page 34 RollSeal SC-325 & SC-650 Controllers Part No 4801-5156 Rev 1-2017
12 Smart Controller External Wiring Diagrams, Schematics, etc.
This section contains the external wiring diagrams for the Smart Controllers and where applicable the RollSeal
Automatic Doors.

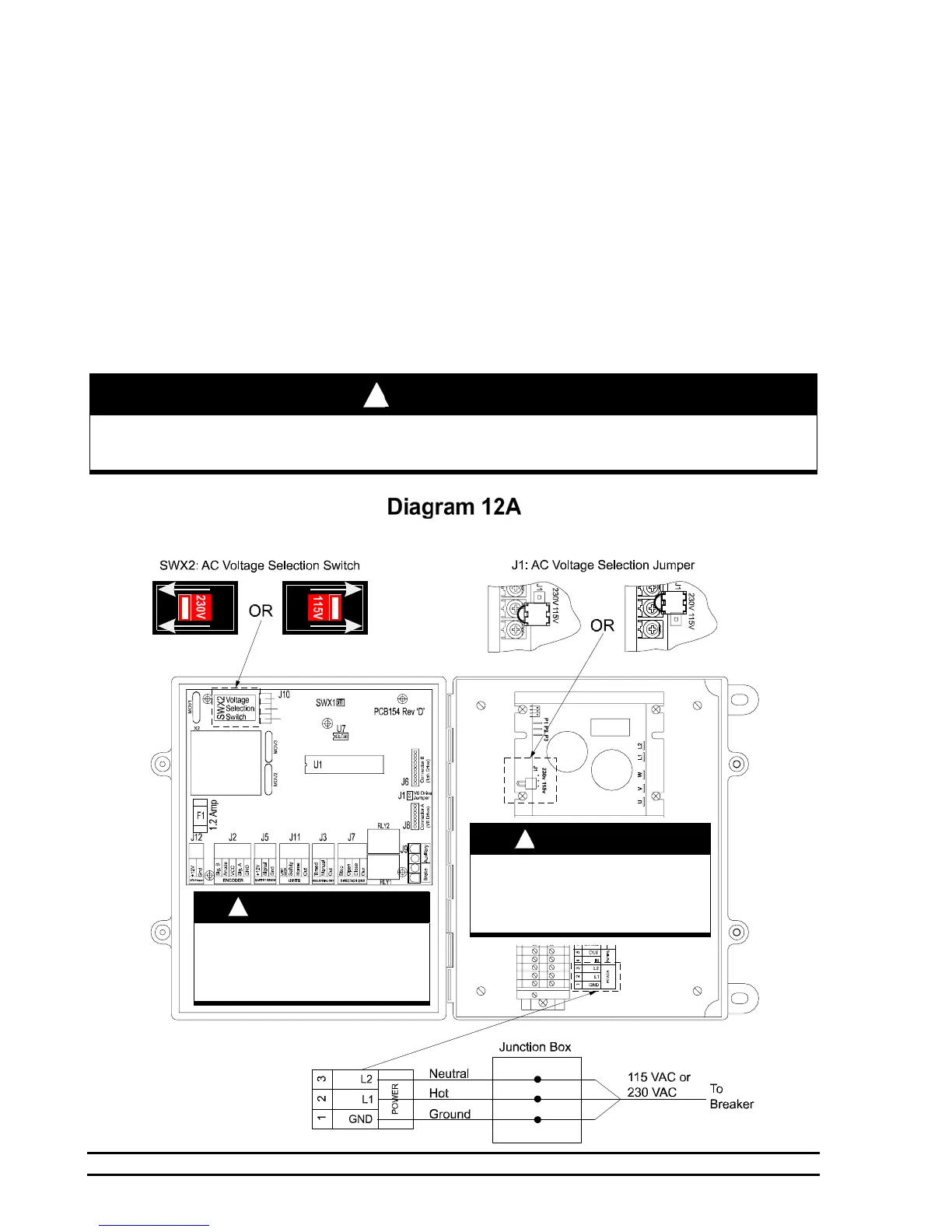

12.1 Connecting AC Power to the Smart Controller
The SC-325 Controllers are factory preset to 115 VAC and the RS-500 Doors are factory prewired to require
a 115 VAC power supply.
The SC-650 Controllers are factory preset to 230 VAC and the RS-600 Doors are factory prewired to require
a 230 VAC power supply.
The SC-325 Controller and RS-500 Door can be field upgraded to accommodate either 115 VAC or 230 VAC
power supply. If the desired power supply voltage is different from the factory preset/prewired voltage, the
appropriate version Brake Rectifier must be ordered separately, field-installed on the RS Door, and the SC
Controller switch & jumper settings changed accordingly.
Smart Controller – Right & Left Side Compartments
WARNING!
Ensure the Drive AC Selection Jumper and PCB 154 AC Selection Switch Are
Set Accordingly BEFORE Power Is Applied To The Controller.
WARNING!
Dangerous High Voltages!
Allow Approximately 5 Minutes For The
Controller To Power-Down Before
Changing Switch Settings, Jumper
Placement, Or Wiring.
WARNING!
Only a qualified electrician should
install and/or service this equipment.
Failure to observe precautions could
result in equipment damage, severe
bodily injury, or loss of life.
!
To Next Page
