Part No 4801-5156 Rev 1-2017 RollSeal SC-325 & SC-650 Controllers Page 35

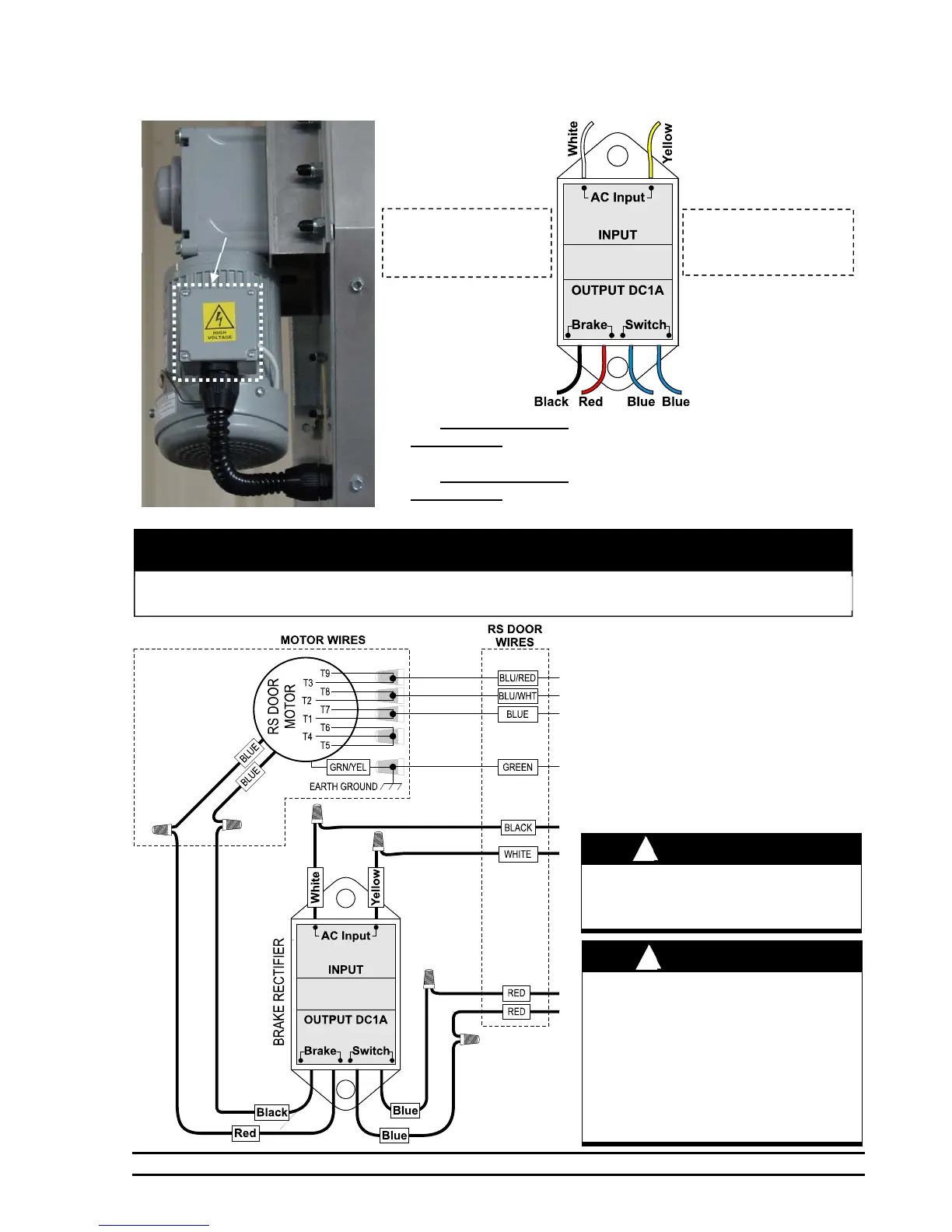

12.2 RS-500/600 Motor Brake Rectifier Wiring Diagram
RS-500 Door
Motor
Junction Box
The SC-325/SC-650 Controllers and
RS 500/600 Doors can be field upgraded
to accommodate either 115 VAC or 230
VAC power supply. If the desired
power supply voltage is different from
the factory preset/prewired voltage, the
appropriate version Brake Rectifier
must be ordered separately, field-
installed on the RS Door, and the SC
Controller switch & jumper settings
changed accordingly.
WARNING!
Dangerous High Voltages!
Allow Approximately 5 Minutes For The
Controller To Power-Down Before Changing
Switch Settings, Jumper Placement, Or Wiring.
WARNING!
Use The Correct RS Door
Brake Rectifier For The Specific
Required Voltage!
Using a 230 VAC brake rectifier with a 115
VAC power supply can result in improper door
operation due to the mechanical brake not
releasing properly. Using a 115 VAC brake
rectifier with a 230 VAC power supply can
result in damage to the mechanical brake
and/or brake rectifier resulting in door failure.
NOTE!
If your serial # comes after ‘0010156’, then the wiring in the diagram below changes from: Blue w/White Stripe
changes from T8 & T2 to now use T9 & T3 instead. The Blue w/Red Stripe now uses T8 and T2.
HHT p/n: 3017-5050
A200-D90-UL
(for 200~230 VAC)
HHT p/n: 3017-5052
A100-D90
(for 100~115 VAC)
The SC-325 Controllers are factory preset to 115 VAC and the
RS-500 Doors factory prewired to require a 115 VAC power
supply.
The SC-650 Controllers are factory preset to 230 VAC and the
RS-600 Doors factory prewired to require a 230 VAC power
supply.
!
!
