Page 42
RollSeal SC-325 & SC-650 C
ontrollers
Part No 4801-5156 Rev 1-2017
13.2

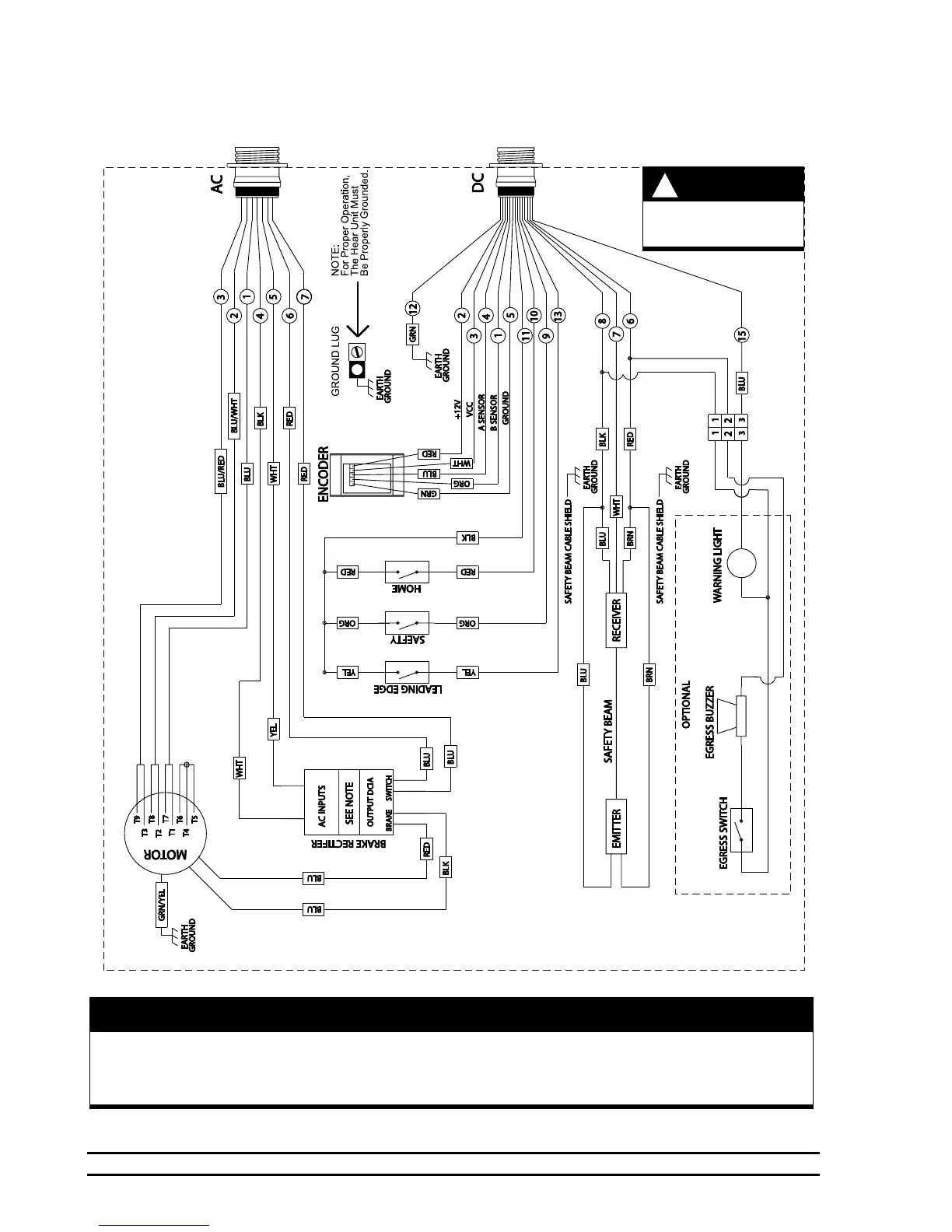

RollSeal Automatic Door Wiring Diagram
WARNING!
Head Unit Must Be
Properly Grounded.
NOTE
If your serial # comes after ‘0010156’, the wiring diag
ram changes from:
Blue w/White Stripe changes from T8 & T2 to now u
se T9 & T3.
The Blue w/White Stripe now uses T8 & T2.
!
41
43
Table of Contents
Default Chapter
2
Table of Contents
2
1 Warnings (Avertissements)
4
2 Limited Warranty
10
3 Ratings and Specifications
11
4 Introduction
12
How the Smart Controllers Communicate with the Rollseal Automatic Doors
12
5 Smart Controller User Interface
13
The Power Switch
13
The Display Indicator
13
Interpreting the Display Indicator
14
Software Version and Model Number
14
Actual Position Reading
14
Unknown Position Indication
14
Assumed Position Indication
14
Jog Mode Indication
14
Service Reminder Indication
15
Safety Beam
15
Leading Edge Switch
15
Home Switch
15
Safety Switch
15
6 SC-325 and SC-650 Initial Setup
16
Program Mode
16
Acceleration and Deceleration Range
18
Switch Settings
19
Door Setup
20
7 Jog Mode
20
8 Door Activation Methods
20
Directional Switch Input
21
Manual (Single) Switch Input
21
Timed Switch Input
22
9 Troubleshooting Controller And/Or Door
23
P12 - Input Status Indicators
23
Error Codes and Recommended Action
24
10 Controller Installation and Setup
25
Tools Required
25
Installation Instructions
25
Typical Smart Controller Installation
26
Connection of Controller to Head Unit
26
Installation of Prewired Switches
27
Power Connection with Disconnect
27
Preparation for Operation
28
11 Smart Controller Internal Diagrams, Schematics, Etc
29
Smart Controller SC-325 V1 Layout
29
Smart Controller SC-325 V1 Connection Diagram (Internal Wiring)
30
Smart Controller SC-325 V2, SC-650 V1 & V2 Layout
31
Smart Controller SC-325 V2, SC-650 V1 & V2 Connection Diagram (Internal Wiring)
32
SC-325 and SC-650 PLUS Internal Wiring
33
12 Smart Controller External Wiring Diagrams, Schematics, Etc
34
Connecting AC Power to the Smart Controller
34
RS-500/600 Motor Brake Rectifier Wiring Diagram
35
Connecting to the Automatic Doors
36
Warning Light Control Wiring
37
Interlocking Two Automatic Doors
37
Connecting Operator Switches for Directional and Sequential Switch Input
38
Connecting Switches and BEA Remote Receiver to the Smart Controller
39
13 Connecting Switches to the SC-325 Wiring Option "-W01"Controller 6607-8058
40
Connecting Moving Door Warning Light to the Smart Controller
41
Rollseal Automatic Door Wiring Diagram
42
Rollseal Smart Controller Wiring Diagram
43
14 Accessories
44
Remote Transmitter and Receiver (Ordered Separately)
44
2-Button Close/Open Switch Module (Ordered Separately)
44
Ceiling/Wall Mount Pull Switch Assembly (Ordered Separately)
44
Motion Detectors, Infrared Sensors and Loop Sensors (Ordered Separately)
45
Wiring Falcon XL and EX Motion Detectors
45
Wiring Falcon IS40 Infrared and Microwave Sensors
45
Wiring IRIS Infrared and Microwave Sensor
46
Wiring Matrix2 Loop Sensor
46
15 Replacement Parts and Optional Accessories
47
SC-325 Controller
47
SC-650 Controller
48
Replacement Parts and Accessories
49
