Page 46 RollSeal SC-325 & SC-650 Controllers Part No 4801-5156 Rev 1-2017

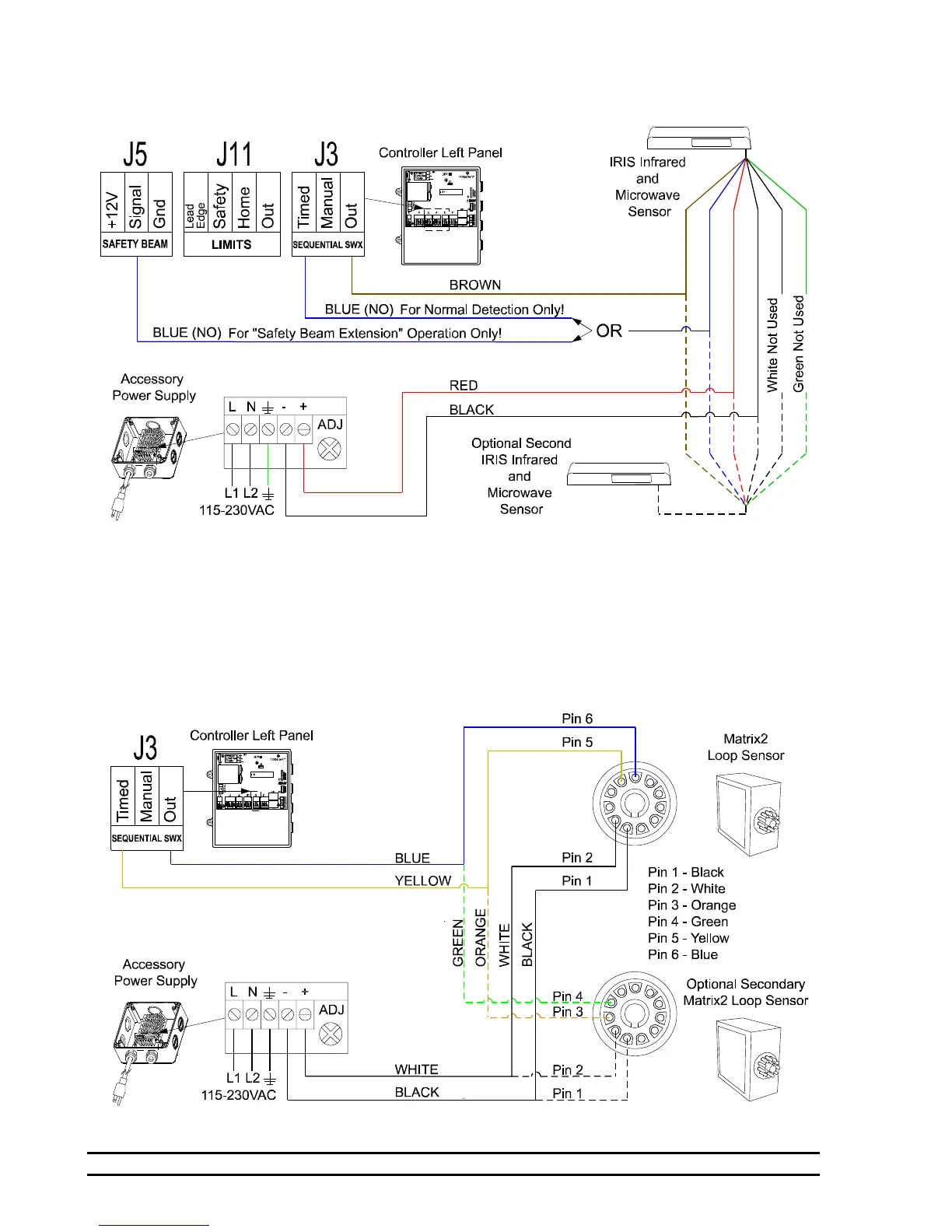

14.4.3 Wiring IRIS Infrared and Microwave Sensor
14.4.4 Wiring Matrix2 Loop Sensor
