Part No. 4801-5329 Rev 3-09 SW 100 Sidewall Curtain System Page 14
Reference to Items in Figure 11 – Remove Limit Switch Cover
Item Description Item Description
1 Drive Unit 15 Hand Crank
2 Output Shaft 16 Not Used
3 Not Used 17 Not Used
4 Copper Sealing Ring 18 Mounting Bore
5 Double Chain 19 Chain
6 Limit Switch Cover 20 Chain Coupling
7 Connector 21 Drive Pipe Shaft
8 Not Used 22 Direction Arrow
9 Terminal Box Cover 23 Not Used
10 Electric Motor 24 Worm Wheel
11 Warning Label 25 Bracket
12 Motor Shaft 26 Not Used
13 Adaptor 27 Not Used
14 Electric Drill 30 Seal

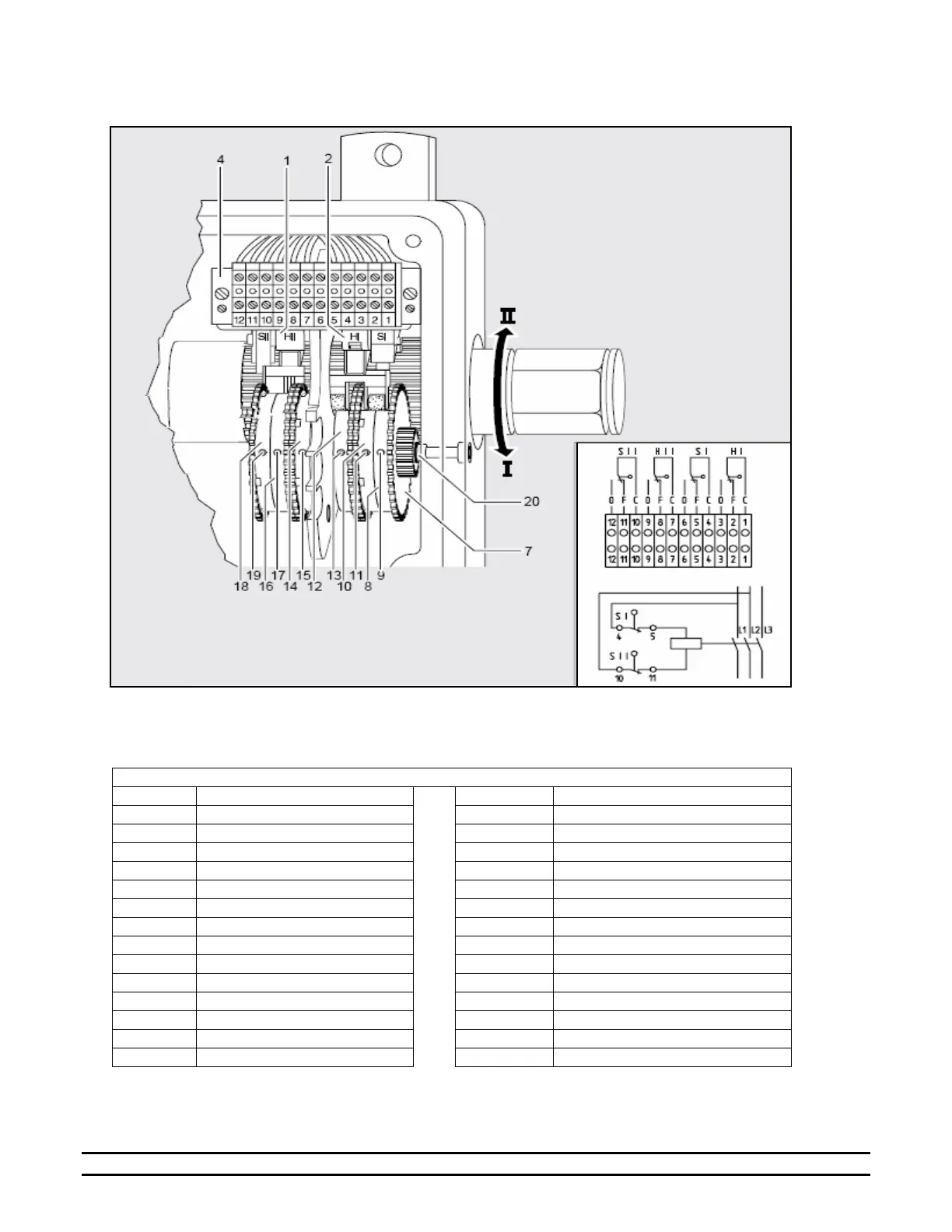

Figure 12 - Adjust Limit Switch
Torque =1.3 to
1.5 in.-lb.
To Next Page
