TAPMATE
™
XL 424 OPERATING MANUAL
13

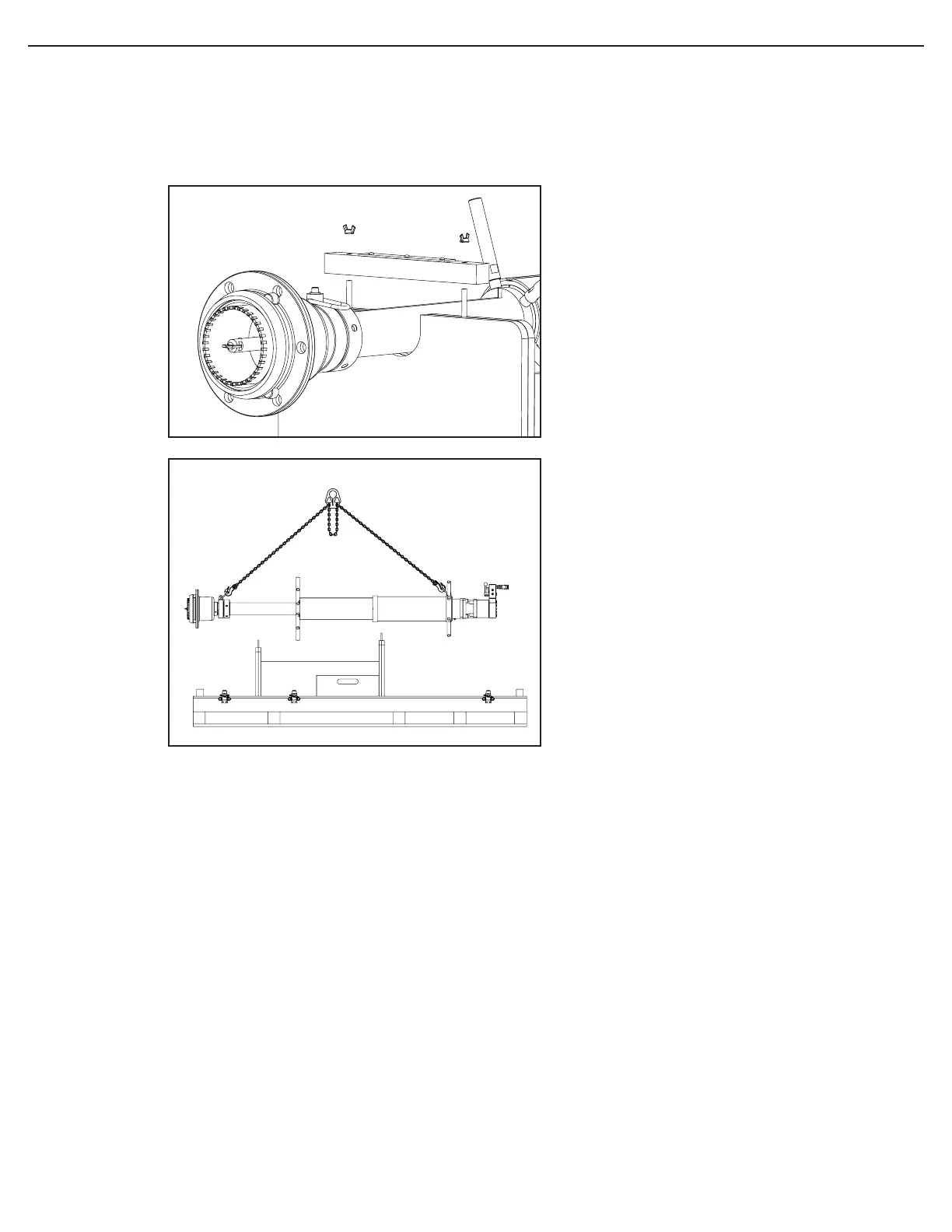

13. Remove the Front Workstation Brace from
the Crate.
14. The TapMate XL‑424 is now ready to be
lifted and attached to the gate valve. When
lifting the Machine, use the Lifting Rings at
the Rear of the Machine and at the Small
Adapter Hub as your lift points. Adjust the
Chain Choker so that the Machine is as level
as possible.
g. 20
g. 21
TAPMATE XL-424 SET-UP FOR 4"-12" TAPS (CONT.)
