TAPMATE
™
XL 424 OPERATING MANUAL
35
TM-XL
SHIPPING CRATE
WORKSTATION
(366-61)
10
6
2
8
11
3
3
9
3
12
5
4
7
1

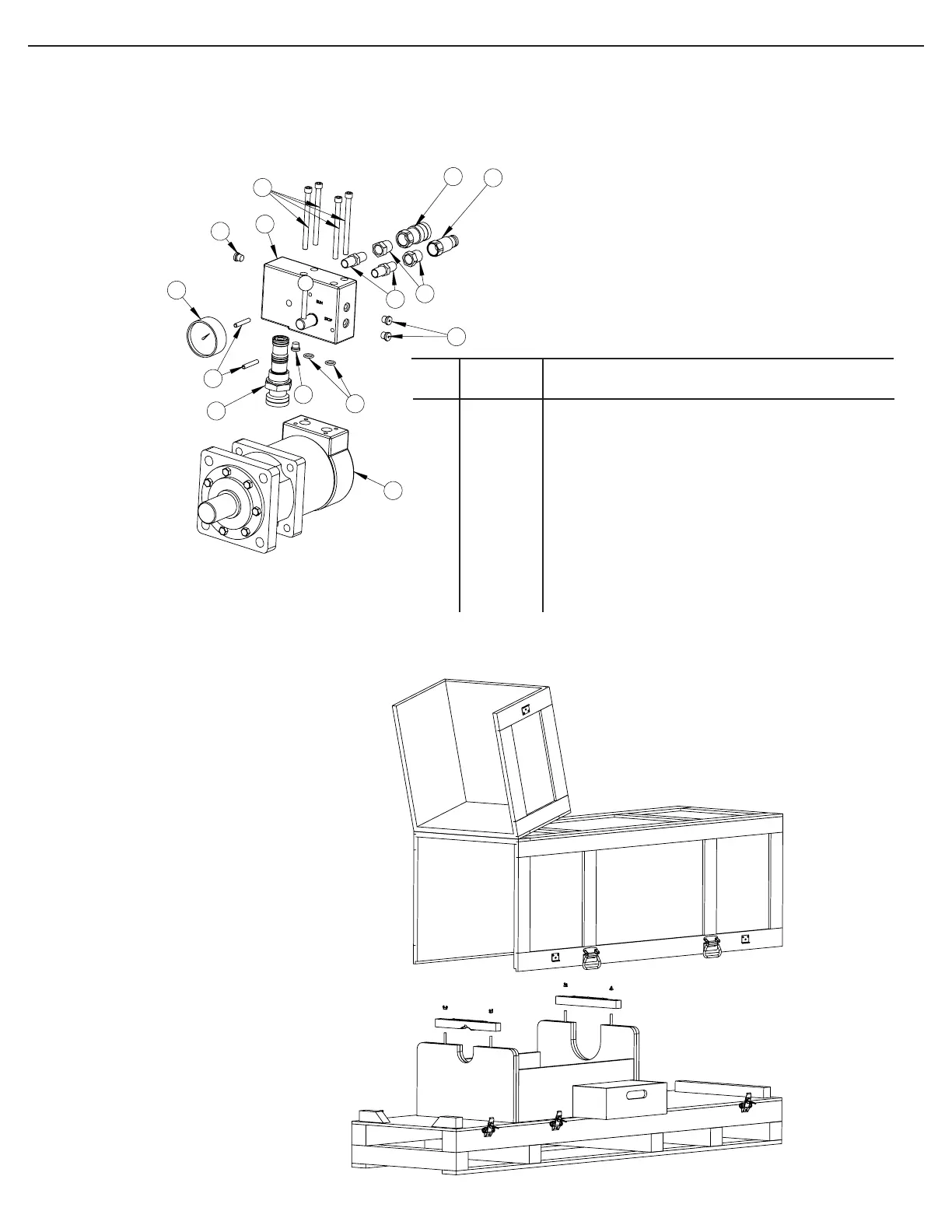

HYDRAULIC MOTOR ASSEMBLY
(366-72-10)
1 366‑72‑700 TM‑XL, HYD MOTOR, WT700930C8330AAAAB
2 TM‑XL, HYD MOTOR/MANIFOLD O‑RING
3 366‑72‑07 TM‑XL, HYD HOLLOW HEX PLUG, 4 HP5ON
4 366‑72‑05 TM‑XL, HYD MOTOR FLOW CONTROL
5 366‑72‑06 TM‑XL, HYD PRESSURE GAUGE, 0‑3,000 PSI
6 366‑72‑04 TM‑XL, HYD MOTOR MANIFOLD
7 366‑72‑09 TM‑XL, HYD MOTOR MANIFOLD BOLTS, 5/16"‑18 X 4‑1/2"
8 372‑13‑11 HD 3/8 IN. X 3/8 IN. NPT HYD. NIPPLE WEATHERHEAD
9 372‑13‑10 HD 1/2 IN. X 3/8 IN. NPT BUSHING WEATHERHEAD
10 372‑13‑7 HD QUICK DISCONNECT,FEMALE 1/2 IN. FLUSH FACE
11 372‑13‑6 HD QUICK DISCONNECT,MALE 1/2 IN. FLUSH FACE
12 375‑50‑15 VE VALVE KEY DOWEL PIN 1/4 DIA. X 1‑1/2 IN. LONG
REF
NO.
ITEM
NUMBER
DESCRIPTION
