Romac Transmate TapMate - Parts Identification; Base Machine Components

TAPMATE
™
XL 424 OPERATING MANUAL
28
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

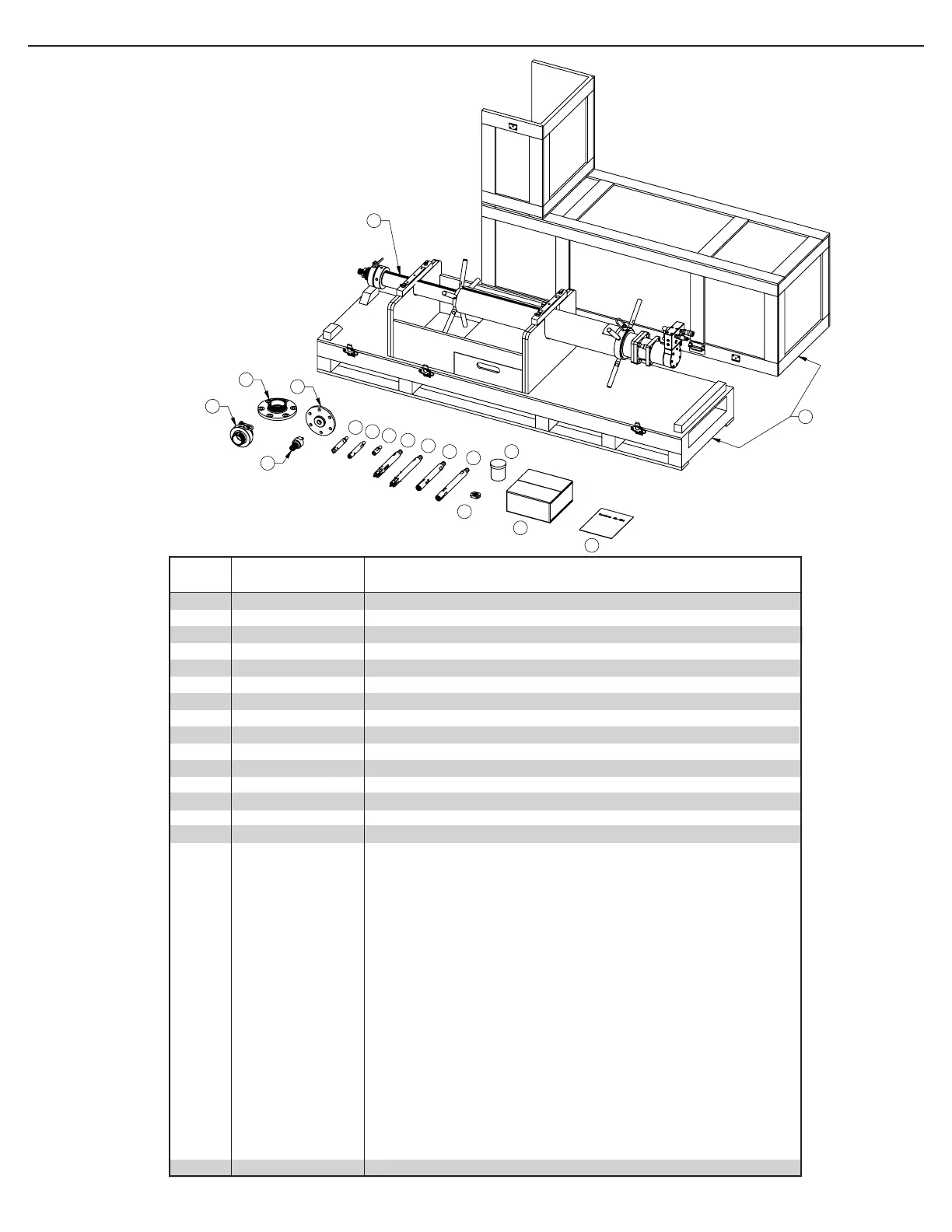

TAPMATE™ XL-424 (366-00)
Items included with Base Machine
REF
NO.
ITEM NUMBER
DESCRIPTION
1 366‑00 Base Machine (see following page for parts list)
2 366‑61 TM‑XL, STORAGE‑WORK STATION CRATE
3 366‑43 TM‑XL, LARGE ADAPTER HUB
4 366‑42 TM‑XL, SMALL ADAPTER HUB
5 366‑10 TM‑XL, LARGE SHAFT HEAD ASSEMBLY
6 366‑11 TM‑XL, SMALL SHAFT HEAD ASSEMBLY
7 350‑21‑A TM,SHAFT NOSE COMPLETE
8 350‑04 TM,PVC PILOT
9 350‑14 TM,PILOT DRILL EXTENSION REQUIRED FOR 10 & 12 TAPS
10 366‑38‑2 TM‑XL, SHAFT NOSE, COMPLETE (14" ‑ 16")
11 366‑38 TM‑XL, SHAFT NOSE, COMPLETE (18" ‑ 24")
12 366‑39‑2 TM‑XL, PVC PILOT, COMPLETE (14" ‑ 16")
13 366‑39 TM‑XL, PVC PILOT, COMPLETE (18" ‑ 24")
14 350‑52 TM, JAM NUT (FOR CUTTERS)
15 353‑10‑1 B1, LUBRICANT, TECH‑LUBE TAPPING COMPOUND
16 366‑66‑10 TM‑XL, TOOL KIT & SPARE PARTS (items listed below, not pictured)
8FW‑410 WASHER,304SS, 5/8 IN.(4)
350‑05‑80.96‑52 TM,HUB ADAPTER NUTS (4)
350‑23‑512 TM,LEAD TUBE PRESSURE PLUG (3)
350‑05‑571 TM,ADAPTER BELL O‑RING
355‑60‑3 35,ALLEN WRENCH,1/8 IN.
353‑60‑31 B1,ALLEN WRENCH 3/16 IN
355‑60‑4 35, 12 IN. SPUD WRENCH
356‑01‑03 BT SLIDE GATE PIPE NIPPLE 1/2 IN. x,1‑1/2 IN.
360‑19 QVIM,ZIRC FITTING,1/8 IN.NPT STRAIGHT, PN 5000
935‑00090 PIPE PLUG,1/2‑14 NPT W/SQ HEAD
366‑66‑12 TM‑XL, ADJUSTABLE LIFTING CHAIN
366‑44 TM‑XL, ADAPTER HUB O‑RING, 2‑237, NITRILE
372‑08 HD HYDRAULIC COUPLING SET SCREW SHSS,1/4‑20 X 1/2 IN. (3)
366‑02‑10 TM‑XL, CUTTER BOLT, 5/8"‑11 X 1" HEX HEAD, ZINC (4)
366‑66‑09 TM‑XL, PIN STYLE ADJUSTABLE SPANNER WRENCH, 4‑1/2" ‑ 6‑1/4"
366‑66‑08 TM‑XL, 3/8 HEX BIT SOCKET X 6 IN LONG ‑ 1/2 SQ DRIVE
366‑66‑14 TM‑XL, ALLEN WRENCH, 5/32 IN.
366‑68 TM‑XL, ANTI‑SEIZE LUBRICATING COMPOUND SAMPLE, FASTORQ A/G
17 Operating Manual
