Romac Transmate TapMate - Shaft Nose Assemblies

TAPMATE
™
XL 424 OPERATING MANUAL
34

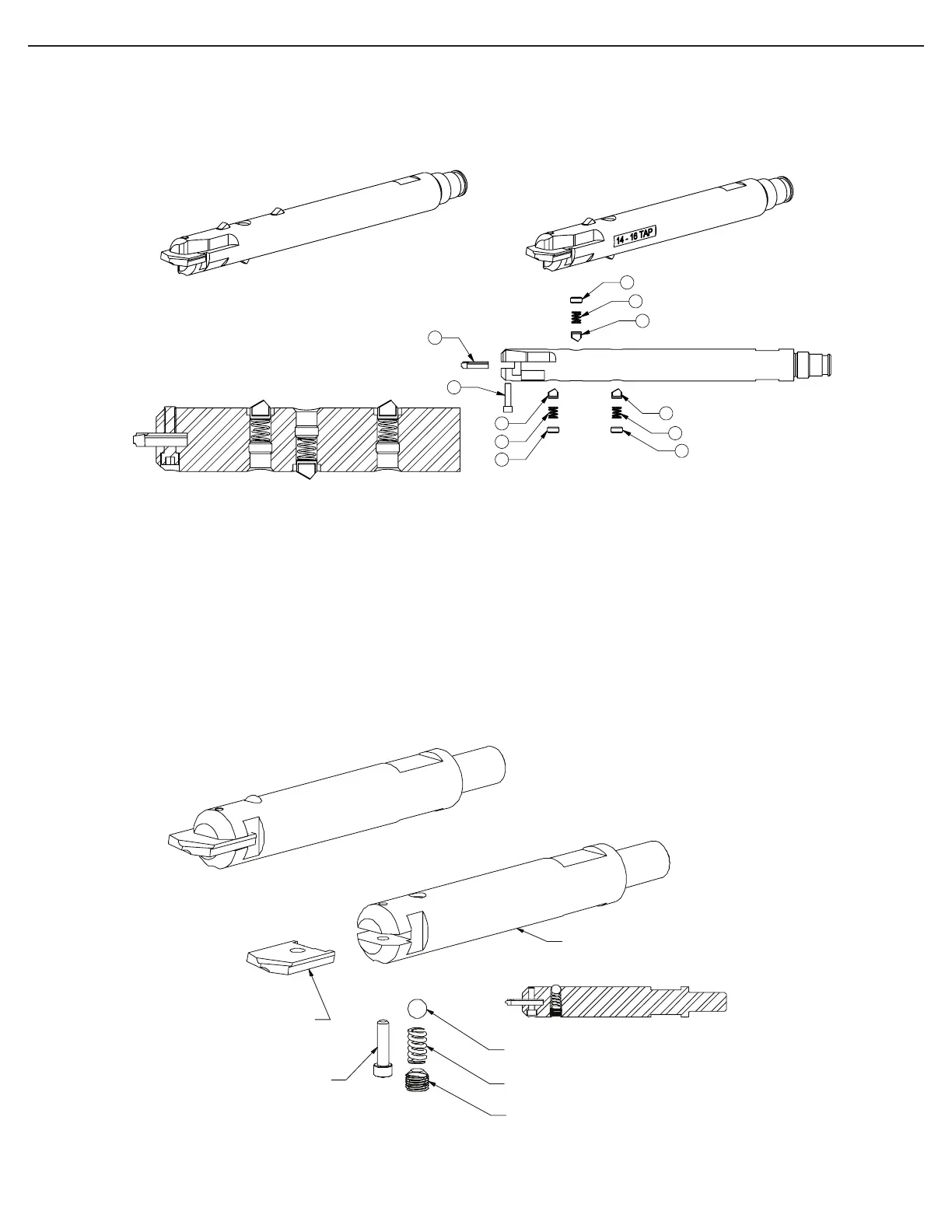

TM-XL,SHAFT NOSE,COMPLETE
(18" - 24")
366-38
1) 360-22-03
2) 360-22-04
3) 360-22-02
4) 358-88-01
5) 362-06-03
QVIM,SHAFT NOSE RETAINING PIN SET SCREW
QVIM,SHAFT NOSE RETAINING PIN SPRING
QVIM,SHAFT NOSE RETAINING PIN
IVS, SPADE BIT 1 3/8 IN. FOR SHAFT NOSE
QVR,6 REAMER CLAMP SCREW,
QTY 3
QTY 3
QTY 3
QTY 1
QTY 1
4
1
2
3
3
2
1
3
2
1
5
QTY 2
QTY 2
QTY 2
QTY 1
QTY 1
366-38
TM-XL,SHAFT NOSE, COMPLETE
(14" - 16")
366-38-2
366-38-2
350-21-512
TM, COUPON RETAINER SET SCREW
3/8-24 x 3/8 SHSS, CUP POINT
350-21-55
TM, COUPON RETAINER SPRING
350-21-561
TM, COUPON RETAINER BALL, 5/16350-03-531
TM, SPADE BIT LOCK SCREW
10-24 x 3/4 IN. LONG S.H.C.S.
350-03-08
TM, PILOT SPADE BIT 1 IN.
TM, SHAFT NOSE
TM,SHAFT NOSE COMPLETE
350-21-A
