TAPMATE
™
XL 424 OPERATING MANUAL
33

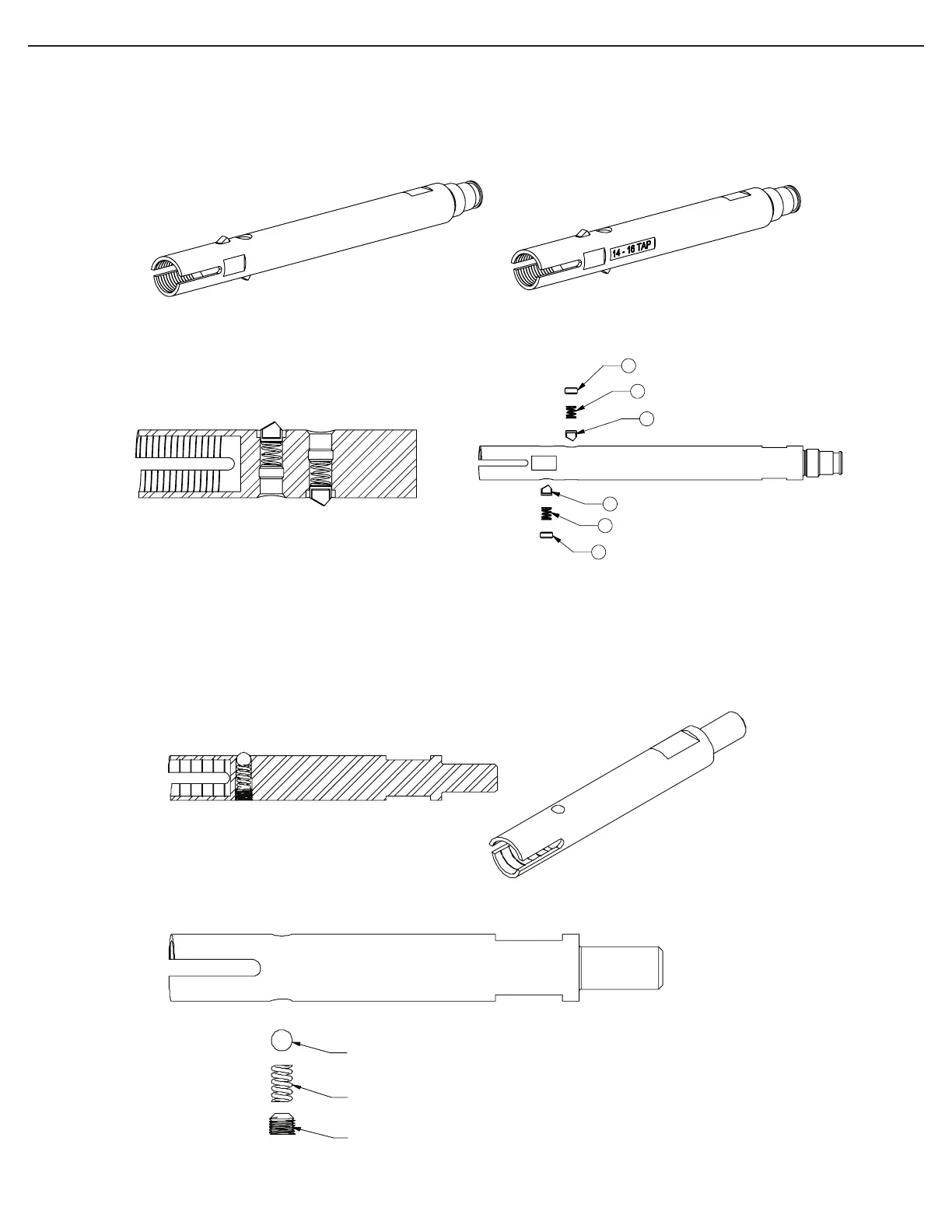

TM-XL,PVC PILOT,COMPLETE
(18" - 24")
366-39
1
2
3
3
1
2
TM-XL,PVC PILOT, COMPLETE
(14" - 16")
366-39-2
1) 360-22-03
2) 360-22-04
3) 360-22-02
QVIM,SHAFT NOSE RETAINING PIN SET SCREW
QVIM,SHAFT NOSE RETAINING PIN SPRING
QVIM,SHAFT NOSE RETAINING PIN
QTY 2
QTY 2
QTY 2
350-04 TM, PVC PILOT
350-21-561 TM,COUPON RETAINER BALL,5/16
350-21-55 TM,COUPON RETAINER SPRING
350-21-512 TM,COUPON RETAINER SET SCREW,3/8-24 X 3/8
