Romac Transmate TapMate - Adapter Hub Installation and Removal

TAPMATE
™
XL 424 OPERATING MANUAL
8

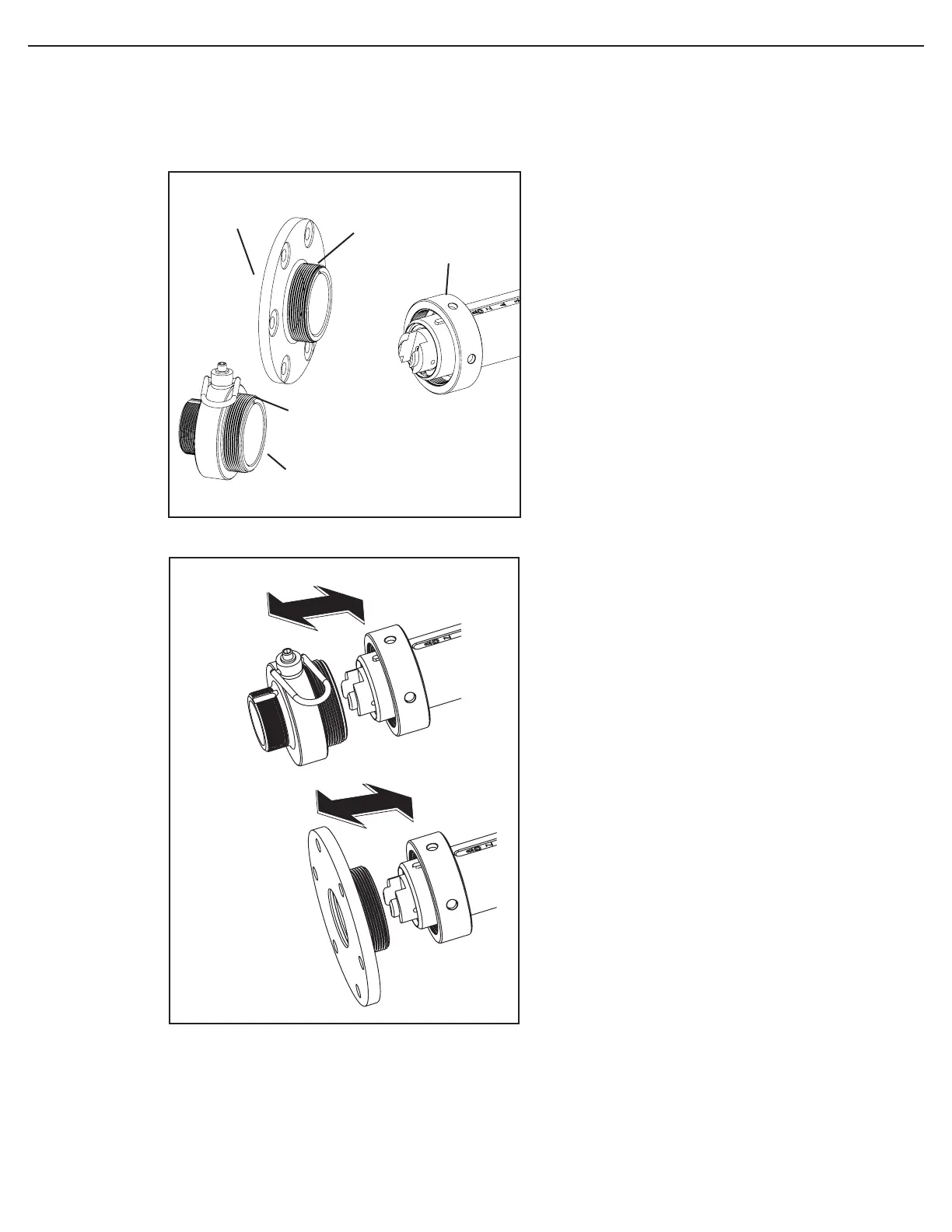

ADAPTER HUB INSTALLATION AND REMOVAL
Large Adapter
Hub
Keyway
Keyway
Lead Tube
Locking Collar
Small Adapter
Hub
Installation:
1. Select the appropriate Adapter Hub for the size
of Adapter Bell to be used (Small Adapter Hub
for 4"‑12" and Large Adapter Hub for 14"‑24").
2. Align the Keyway in the Adapter Hub with the
Key in the top of the Lead Tube (see g. 7).
3. Slide Adapter Hub over the end of the Lead
Tube and engage the threads of the Lead Tube
Locking Hub Collar (see g. 8).
Large Adapter
Hub
Small Adapter
Hub
g. 7
g. 8
