TAPMATE
™
XL 424 OPERATING MANUAL
9
ADAPTER HUB INSTALLATION AND REMOVAL (cont.)
4. Tighten with a Spanner Wrench.
Removal:
1. Unscrew the Adapter Hub from the Lead
Tube Locking Collar with the Spanner
Wrench.
2. Slide the Adapter Hub off the Lead
Tube and store in Shipping Crate / Work
Station.

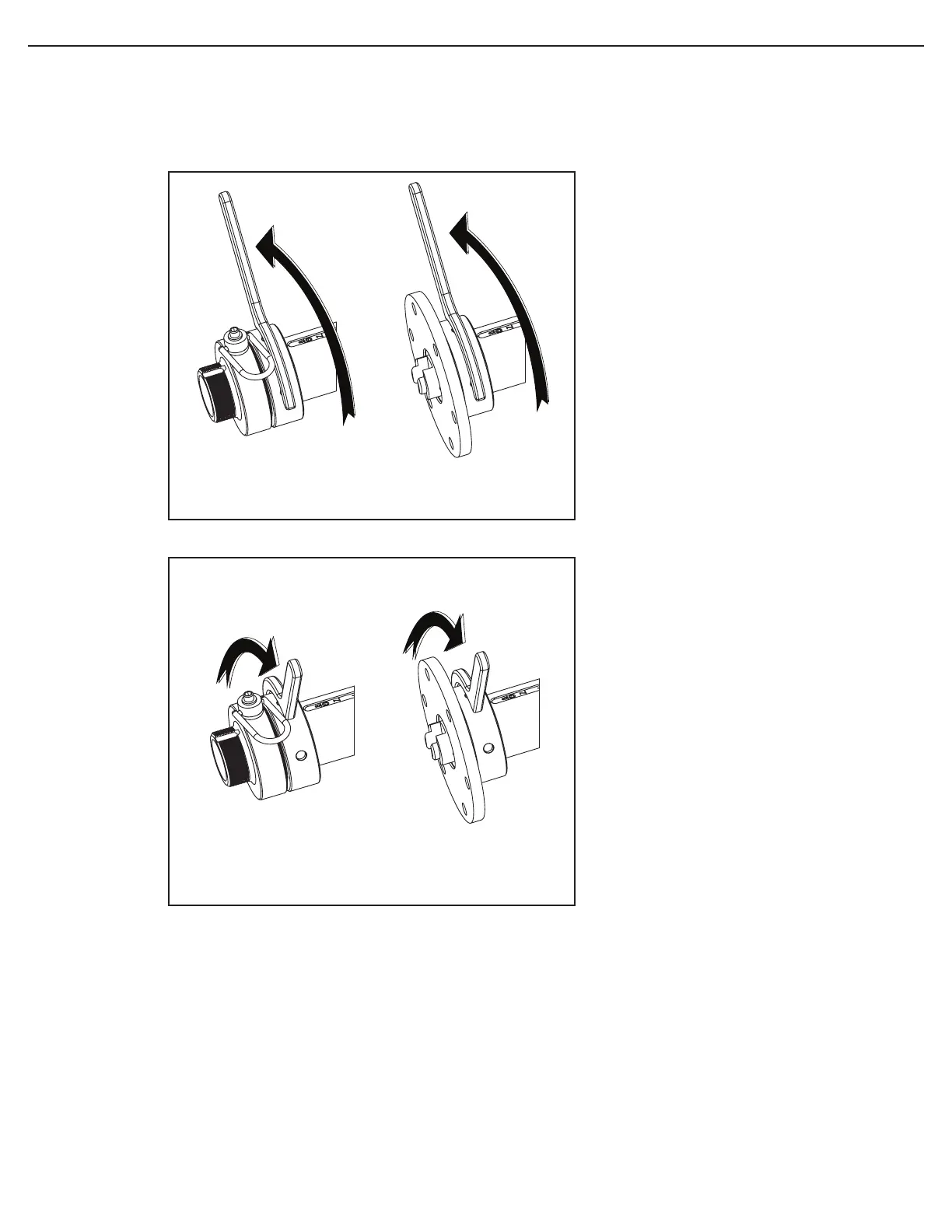

Large Adapter HubSmall Adapter Hub
Large Adapter HubSmall Adapter Hub
g. 9
g. 10
