Romac Transmate TapMate - Shaft Head Assemblies and Jam Nut

TAPMATE
™
XL 424 OPERATING MANUAL
32
JAM NUT SOLD AS A COMPLETE UNIT
ADDITIONAL SCREWS SOLD SEPARATELY
TM, JAM NUT
350-52
350-52-1
TM JAM NUT SCREW
1/4-28 X 3/4 SHCS
3
1
2
4

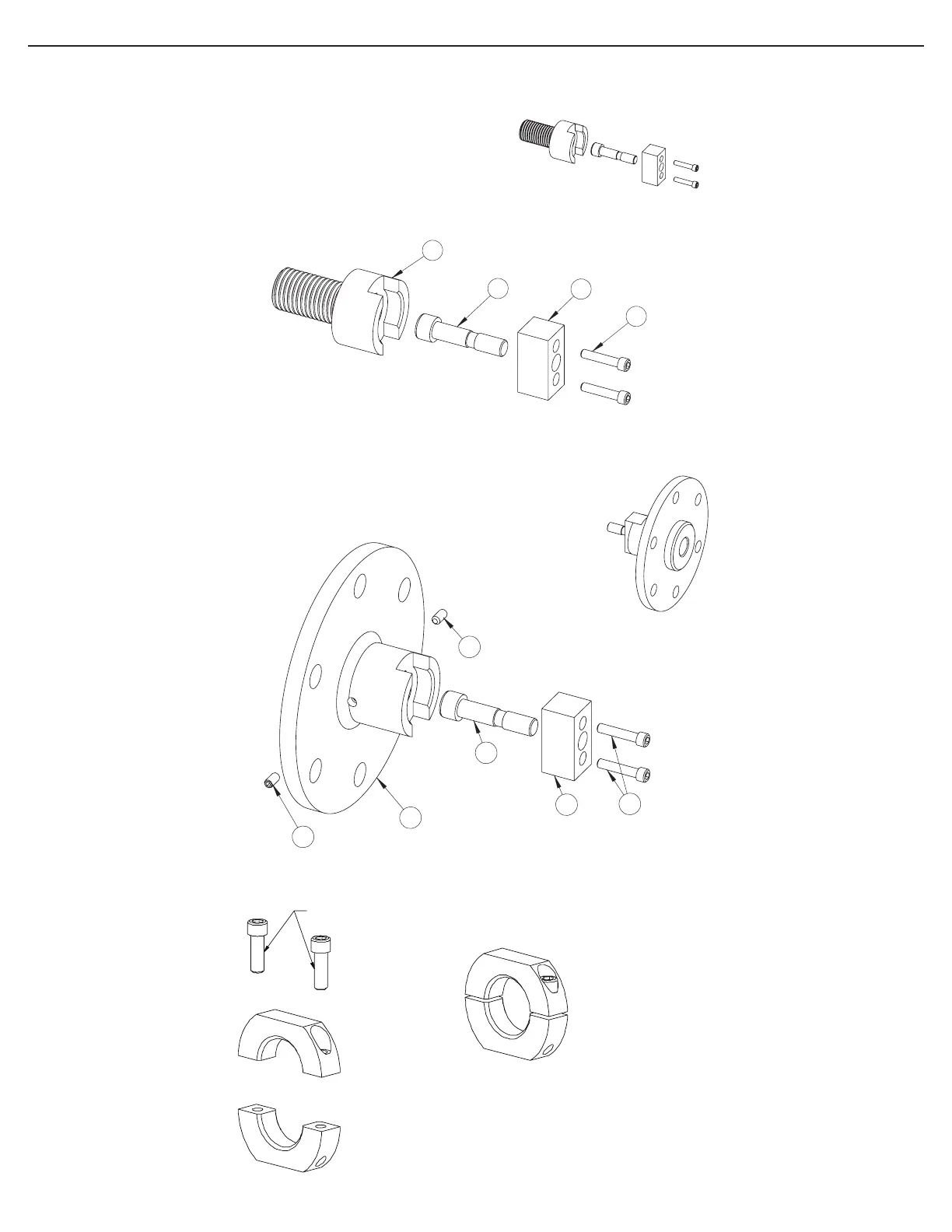

366-11 TM-XL, SMALL SHAFT HEAD ASSEMBLY
TM-XL, SMALL SHAFT HEAD
TM-XL, SHAFT HEAD BOLT
TM-XL, SHAFT HEAD KEY
TM-XL, SHAFT HEAD KEY SCREW, SHCS 1/4-20 X 1-1/4,
1) 366-11-01
2) 366-09-01
3) 366-09-02
4) 366-09-03
HD HYDRAULIC COUPLNG SET SCREW SHSS,1/4-20 X 1/2 IN.
TM-XL, SHAFT HEAD KEY
TM-XL, SHAFT HEAD BOLT
TM-XL, LARGE SHAFT HEAD
4
5) 372-08
5
1
2
3
TM-XL, SHAFT HEAD KEY SCREW, SHCS 1/4-20 X 1-1/4,
5
1) 366-10-01
2) 366-09-01
3) 366-09-02
4) 366-09-03
366-10 TM-XL, LARGE SHAFT HEAD ASSEMBLY
