TAPMATE
™
XL 424 OPERATING MANUAL
25
PERFORMING THE TAP (cont.)
18. Release the water pressure in the
Adapter Bell by opening the Exhaust
Valve on the back of the Adapter Bell
(14‑24” adapters).
19. Reattach the Lifting Chains
(see gs. 42 & 43).
Small Adapter Hub
Lifting Ring
Rear Lifting Ring

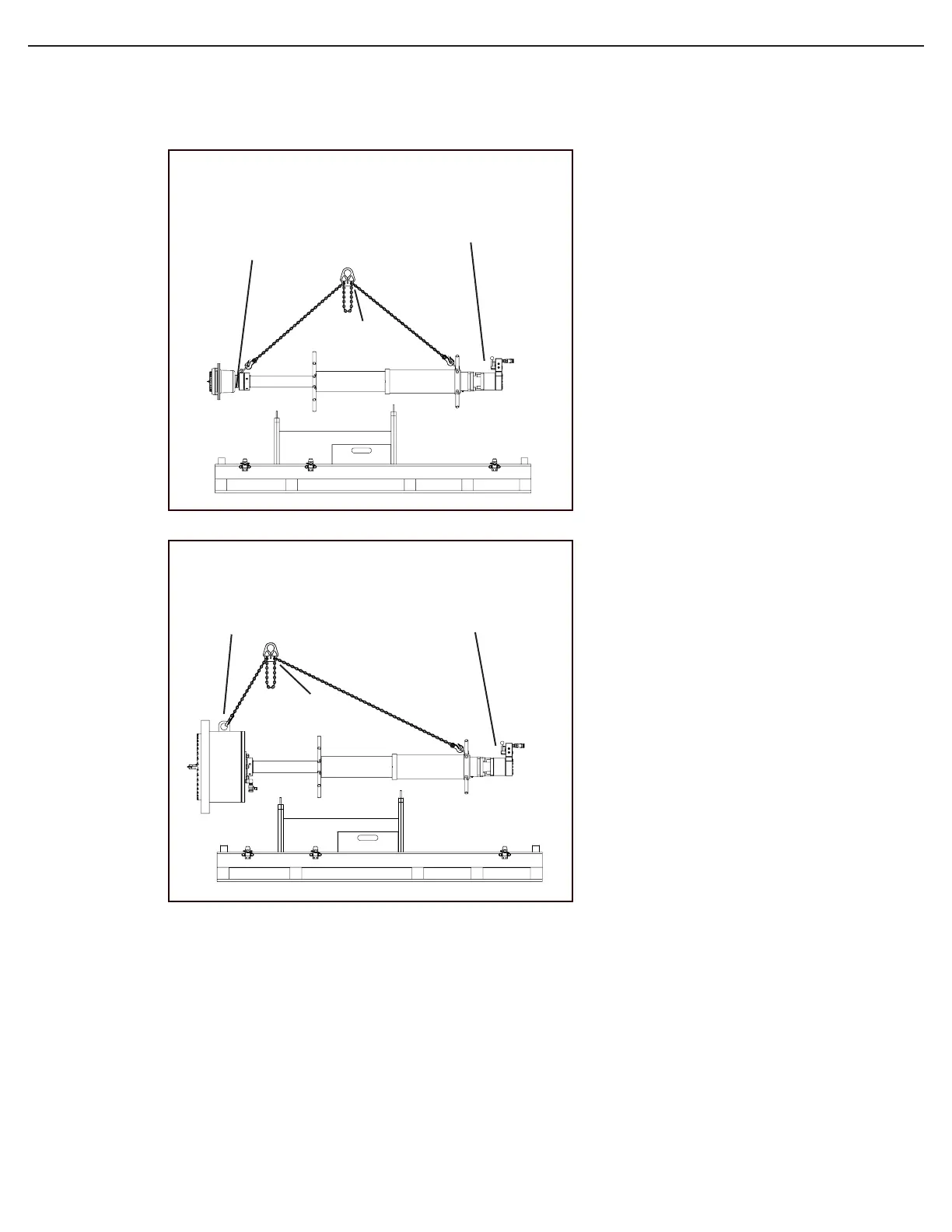

LIFTING CHAIN POSITIONS FOR 4" - 12" TAPS
Adjust for
Level Lift
g. 42
Lifting Eye
Rear Lifting Ring
Adjust for
Level Lift
LIFTING CHAIN POSITIONS FOR 14" - 24" TAPS
g. 43
