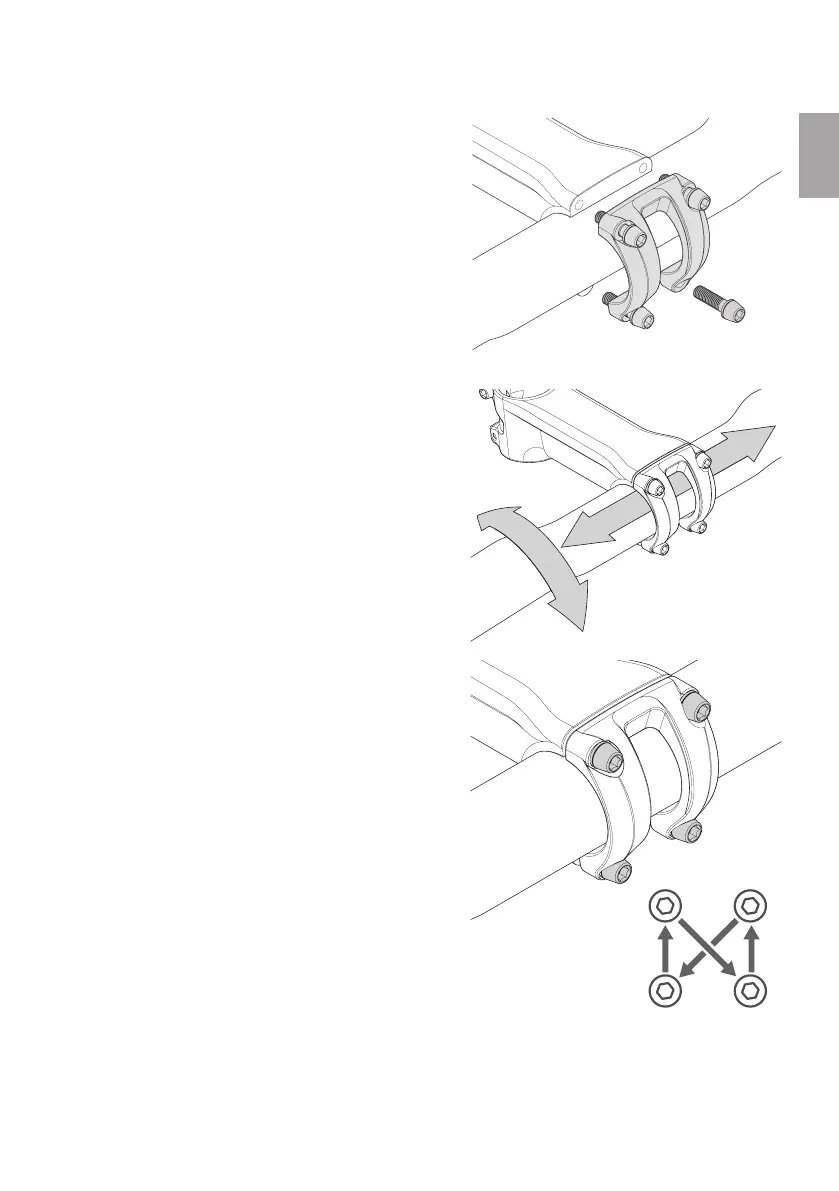

3.3 Adjusting the angle of the handlebar
1. Loosen the handlebar clamp bolts by turning them anti-clockwise until the angle of your handlebar can be adjusted.
2. Check whether there is a protective film between handlebar and stem.
If there is a protective film:
2.1 Completely loosen the handlebar clamp bolts and remove the
handlebar clamp(s).
2.2 Remove the handlebar and take off the protective film.
2.3 Re-install the handlebar and handlebar clamp(s).
2.4 Turn the clamp bolts clockwise and tighten them just enough
so that the handlebar can still be moved.
3. Centrally align the handlebar and adjust the angle.
4. Tighten the bolts of the handlebar clamp alternately in small
increments until you have reached the tightening torque.
For the required tightening torque see the stem of your bike or
chapter “8.4 Torques”.
