Quick Start Guide
2. Units with flanged process connections:
a. Install the flanges in the process pipe. The distance between flanges should
be equal to the overall length of the flowmeter, plus clearance for gaskets.
b. Install the unit between the flanges, using studs, nuts, and gaskets
appropriate for the flange size/rating and process conditions. Proper
support is needed at the flange connections as shown below.
See Figure 12.
3. Units with threaded process conditions:
a. Install the unit using the appropriate threaded connection hardware.
4. Units with Socketweld Bodies:
a. To ensure perpendicularity of the pipe to the orifice fitting, the socket
diameter is smaller than the standard pipe OD. The pipe OD must be
machined-to-fit prior to welding.
b. To prevent damage, remove the transmitter prior to welding.

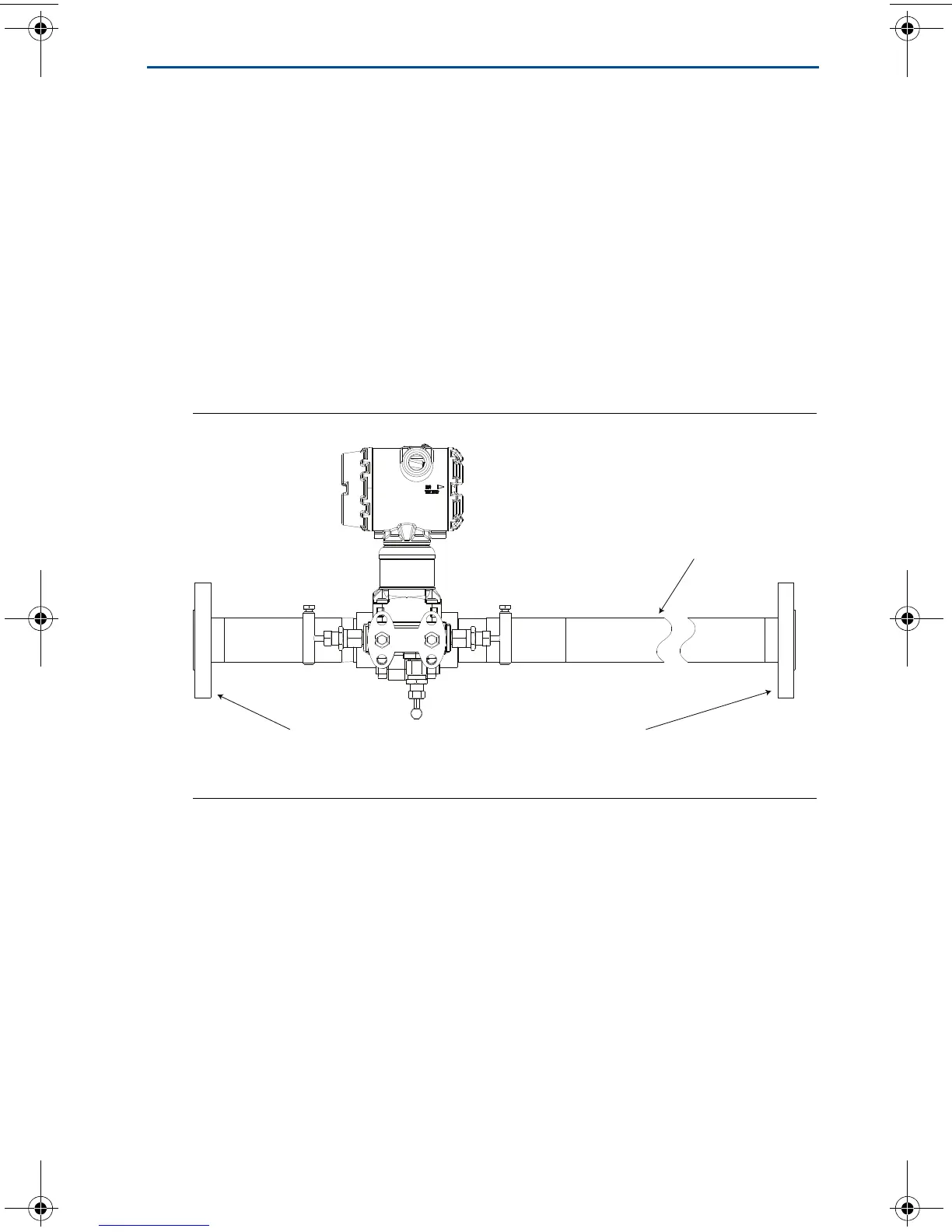

Figure 12. Recommended Support Locations for Installation
A. Support
B. No step
5. Once the Rosemount 1195 is installed ensure that it is supported properly and
take precautions to ensure that it is not used as a step. Refer to Figure 12 for
support locations.
