Rosemount 1195 - Primary Element Orientation

Quick Start Guide
7
June 2016
3.0 Primary element orientation

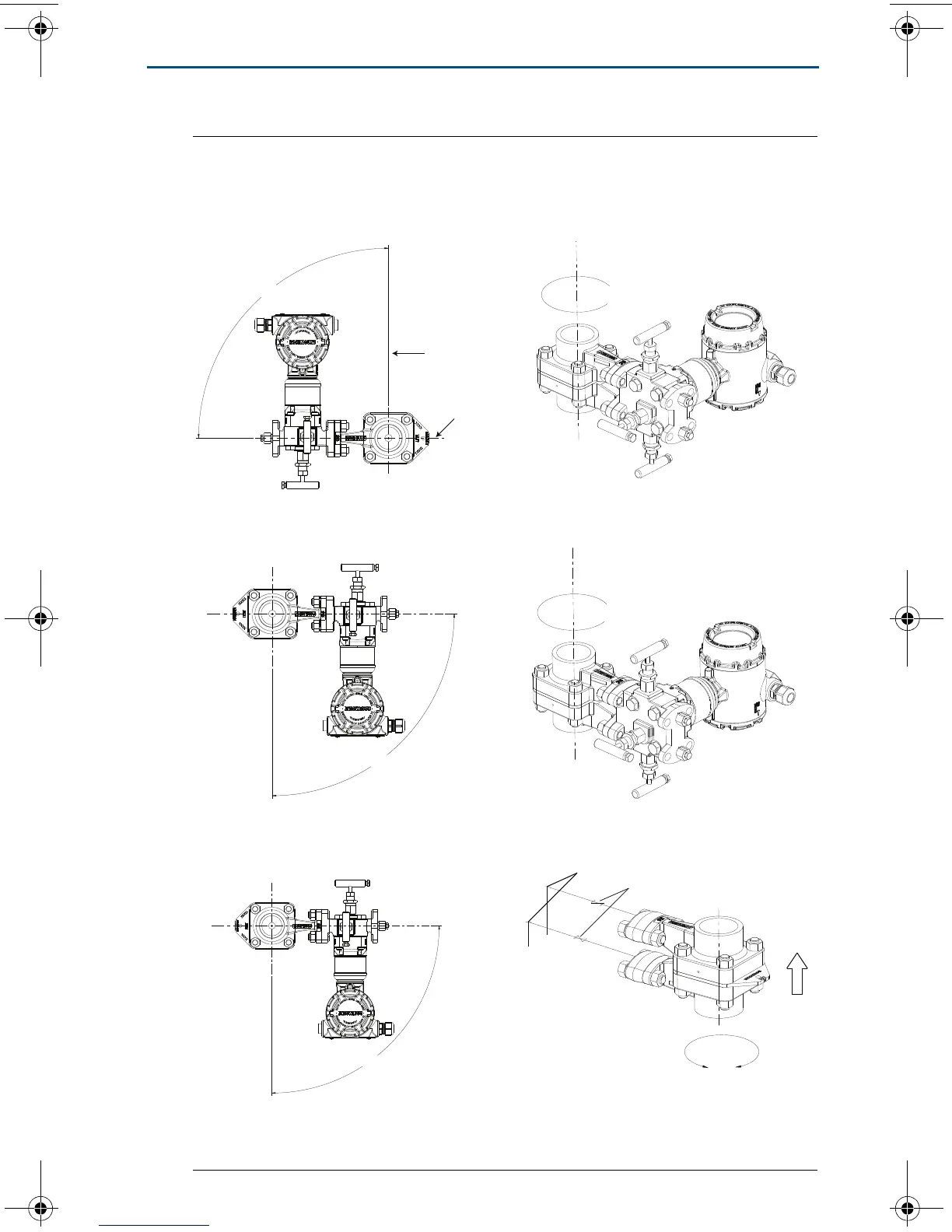

Figure 9. Rosemount 1195 Flowmeter Orientation with Traditional Style
Manifold
Gas (horizontal) Gas (vertical)
Liquid (horizontal) Liquid (vertical)
Steam (horizontal) Steam (vertical)
A. 90° recommended zone
B. Vertical plane
C. Horizontal plane
D. 360° recommended zone
E. Block valves
F. Vent valves
A
B
C
D
A
C
B
D
A
C
B
FLOW
F
E
D
