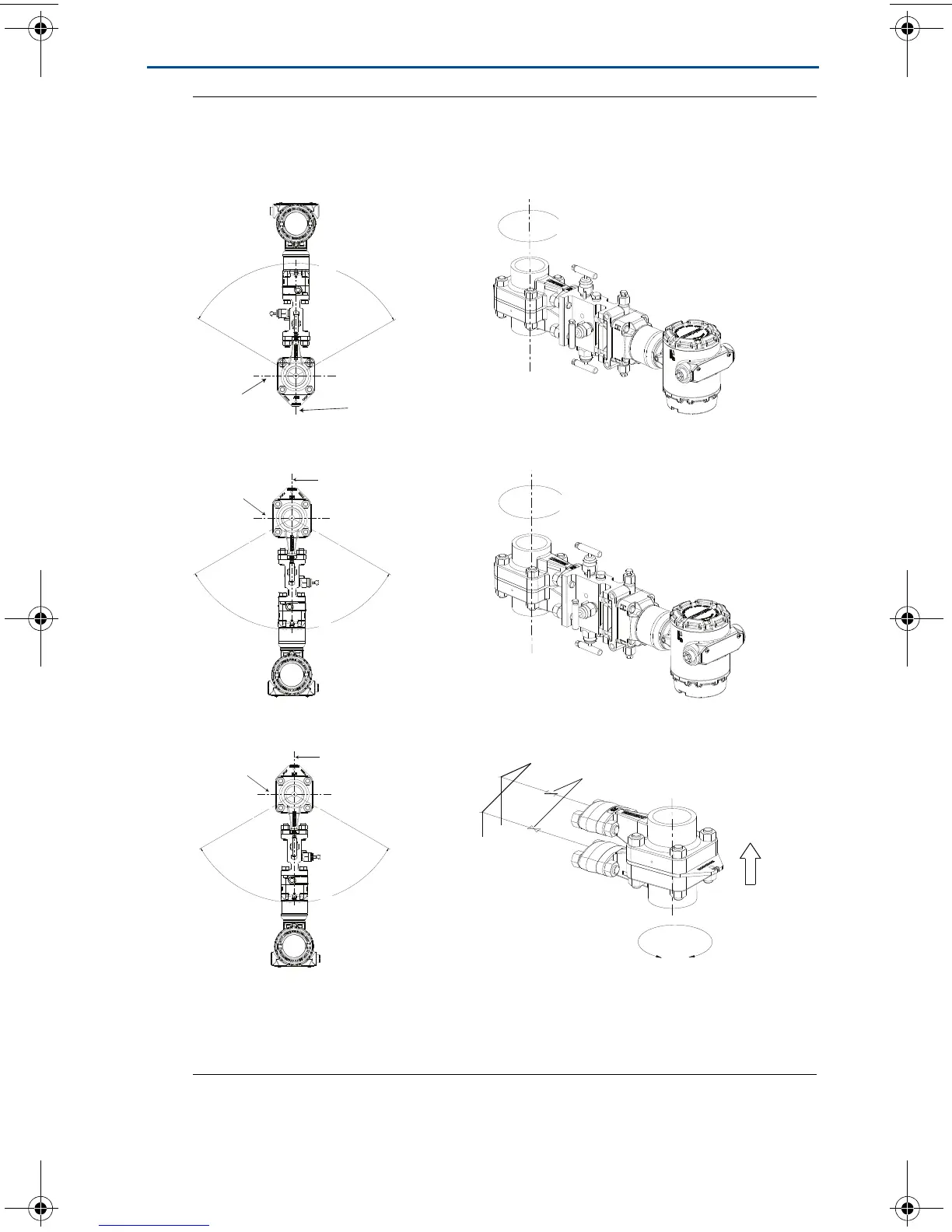

Figure 10. Rosemount 1195 Flowmeter Orientation with Flange by Flange
Manifold
Gas (horizontal) Gas (vertical)
Liquid (horizontal) Liquid (vertical)
Steam (horizontal) Steam (vertical)
A. 120° recommended zone
B. Horizontal plane
C. Vertical plane
D. 360° recommended zone
E. Block valves
F. Vent valves
A
B
C
D
A
B
C
D
A
B
C
FLOW
F
E
D
