5.2 Remote mount
Gas applications-transmitter located above Rosemount 1195 Taps
1. Pressurize line.
2. Open equalizer valve on transmitter manifold.
3. Open high and low side transmitter manifold valves.
4. Open drain/vent valves on transmitter manifold to ensure no liquids are
present.
5. Close drain/vent valves.
6. Close low side transmitter manifold valve.
7. Check transmitter zero according to transmitter manual.
8. Close equalizer on transmitter manifold.
9. Open low side valve on transmitter manifold. The system is now operational.

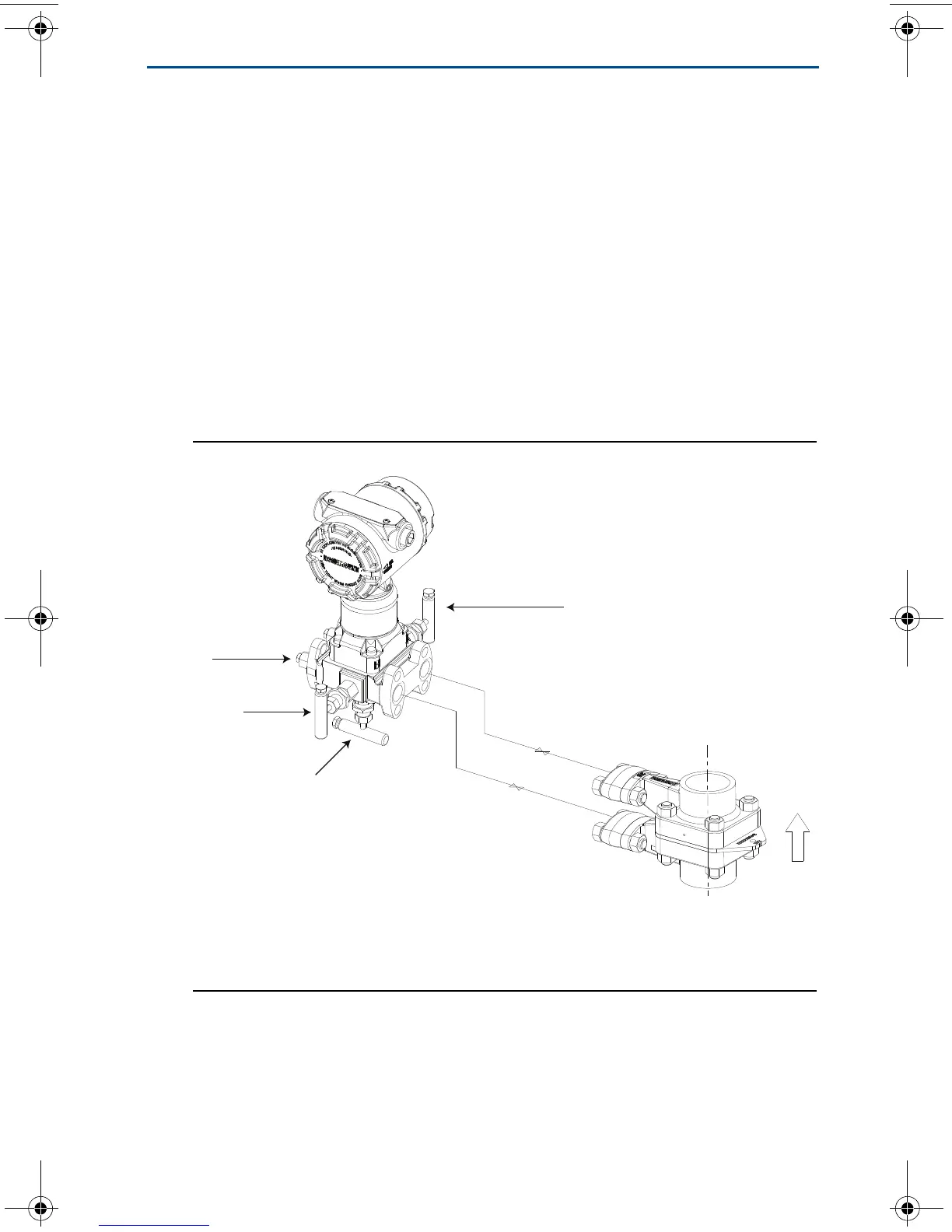

Figure 13. Remote Gas Service
(1)
A. Low valve
B. Vent
C. High valve
D. Equalizer valve
1. Applicable to both body assemblies.
