Rosemount 3051SFA - Page 196

Reference Manual
00809-0100-4809, Rev DA
Appendix A: Specifications and Reference Data
September 2015
188
Specifications and Reference Data

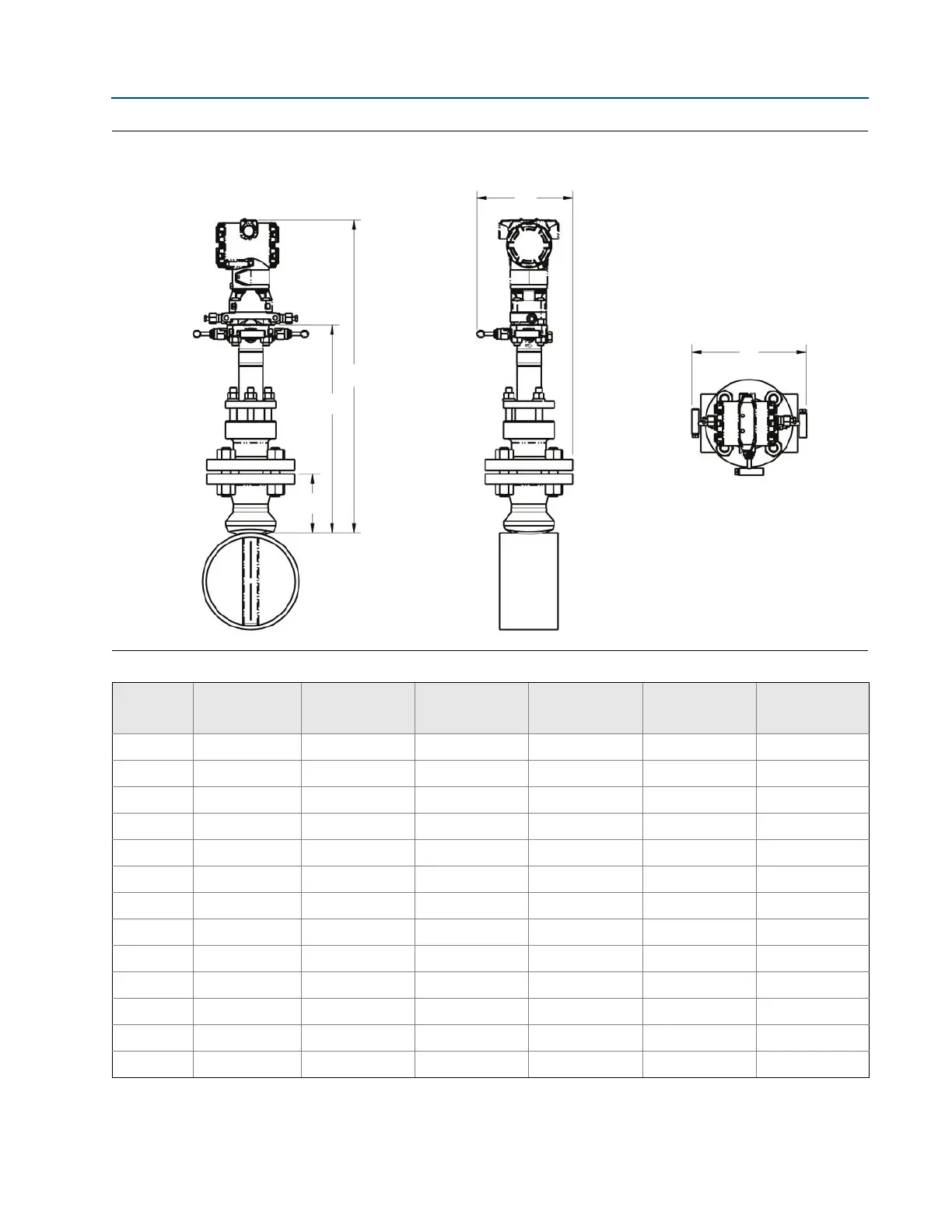

Figure 10. Rosemount 3051CFA Flange-Lok Annubar Flowmeter
(1)
Front view Side view Top view
1. The Flange-Lok Annubar model can be direct mounted up to 600# ANSI (1440 psig at 100 °F [99 bar at 38 °C]).
Table 38. 3051CFA Flange-Lok Annubar Flowmeter Dimensional Data
Sensor size
Flange size and
rating
A ± 0.125
(3.2)
B ± 0.25
(6.4)
C (Max) D (Max) E (Max)
1 1
1
/2 – 150# 3.88 (98.6) 12.25 (311.2) 19.35 (491.5) 9.00 (228.6) 6.30 (160.0)
1 1
1
/2 – 300# 4.13 (104.9) 12.25 (311.2) 19.35 (491.5) 9.00 (228.6) 6.86 (174.2)
1 1
1
/2 – 600# 4.44 (112.8) 12.25 (311.2) 19.35 (491.5) 9.00 (228.6) 6.86 (174.2)
1 DN40/PN16 3.09 (78.5) 12.25 (311.2) 19.35 (491.5) 9.00 (228.6) 6.86 (174.2)
1 DN40/PN40 3.21 (81.5) 12.25 (311.2) 19.35 (491.5) 9.00 (228.6) 6.86 (174.2)
1 DN40/ PN100 3.88 (98.6) 12.25 (311.2) 19.35 (491.5) 9.00 (228.6) 6.86 (174.2)
2 2 – 150# 4.13 (104.9) 14.25 (362.0) 21.35 (542.3) 9.00 (228.6) 6.80 (172.7)
2 2 – 300# 4.38 (111.3) 14.25 (362.0) 21.35 (542.3) 9.00 (228.6) 7.05 (179.1)
2 2 – 600# 4.75 (120.7) 14.25 (362.0) 21.35 (542.3) 9.00 (228.6) 7.05 (179.1)
2 DN50/PN16 3.40 (86.4) 14.25 (362.0) 21.35 (542.3) 9.00 (228.6) 7.05 (179.1)
2 DN50/PN40 3.52 (89.4) 14.25 (362.0) 21.35 (542.3) 9.00 (228.6) 7.05 (179.1)
2 DN50/ PN100 4.30 (109.2) 14.25 (362.0) 21.35 (542.3) 9.00 (228.6) 7.05 (179.1)
3 3 – 150# 4.63 (117.6) 17.50 (444.5) 24.60 (624.8) 9.00 (228.6) 7.55 (191.8)
A
B
C
E
D
