Specifications and Reference Data
A.16.2 3051CF dimensional drawings

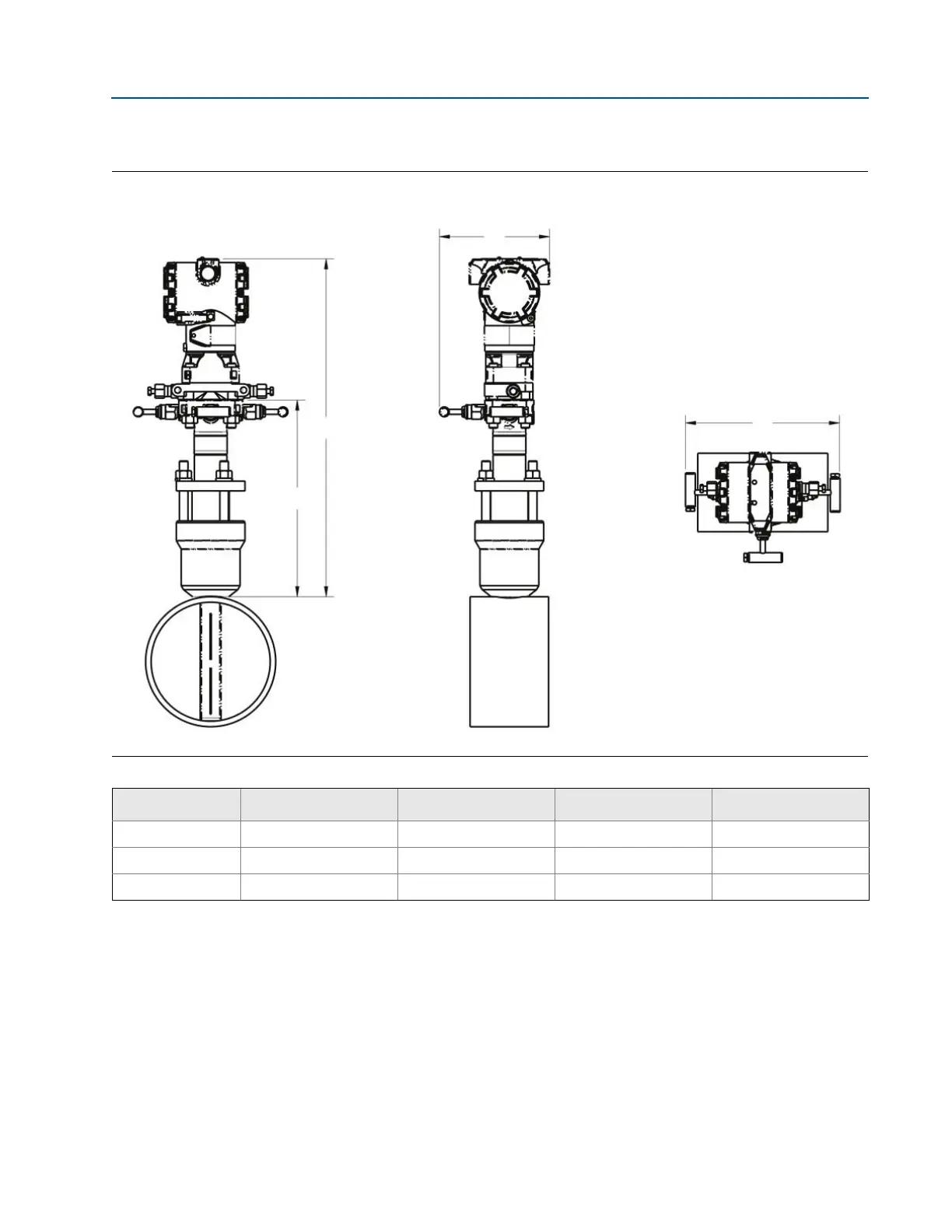

Figure 9. Rosemount 3051CFA Pak-Lok Annubar Flowmeter
(1)
Front view Side view Top view
1. The Pak-Lok Annubar model is available up to 600# ANSI (1440 psig at 100 °F [99 bar at 38 °C]).
Table 37. 3051CFA Pak-Lok Annubar Flowmeter Dimensional Data
Sensor size A (Max) B (Max) C (Max) D (Max)
1 8.50 (215.9) 14.60 (370.8) 9.00 (228.6) 6.00 (152.4)
2 11.0 (279.4) 16.35 (415.3) 9.00 (228.6) 6.00 (152.4)
3 12.00 (304.8) 19.10 (485.1) 9.00 (228.6) 6.00 (152.4)
Dimensions are in inches (millimeters).
A
B
C
D
