Rosemount 3051SFA - 405 Dimensional Drawings

Reference Manual
00809-0100-4809, Rev DA
Appendix A: Specifications and Reference Data
September 2015
212
Specifications and Reference Data
A.16.6 405 Dimensional drawings

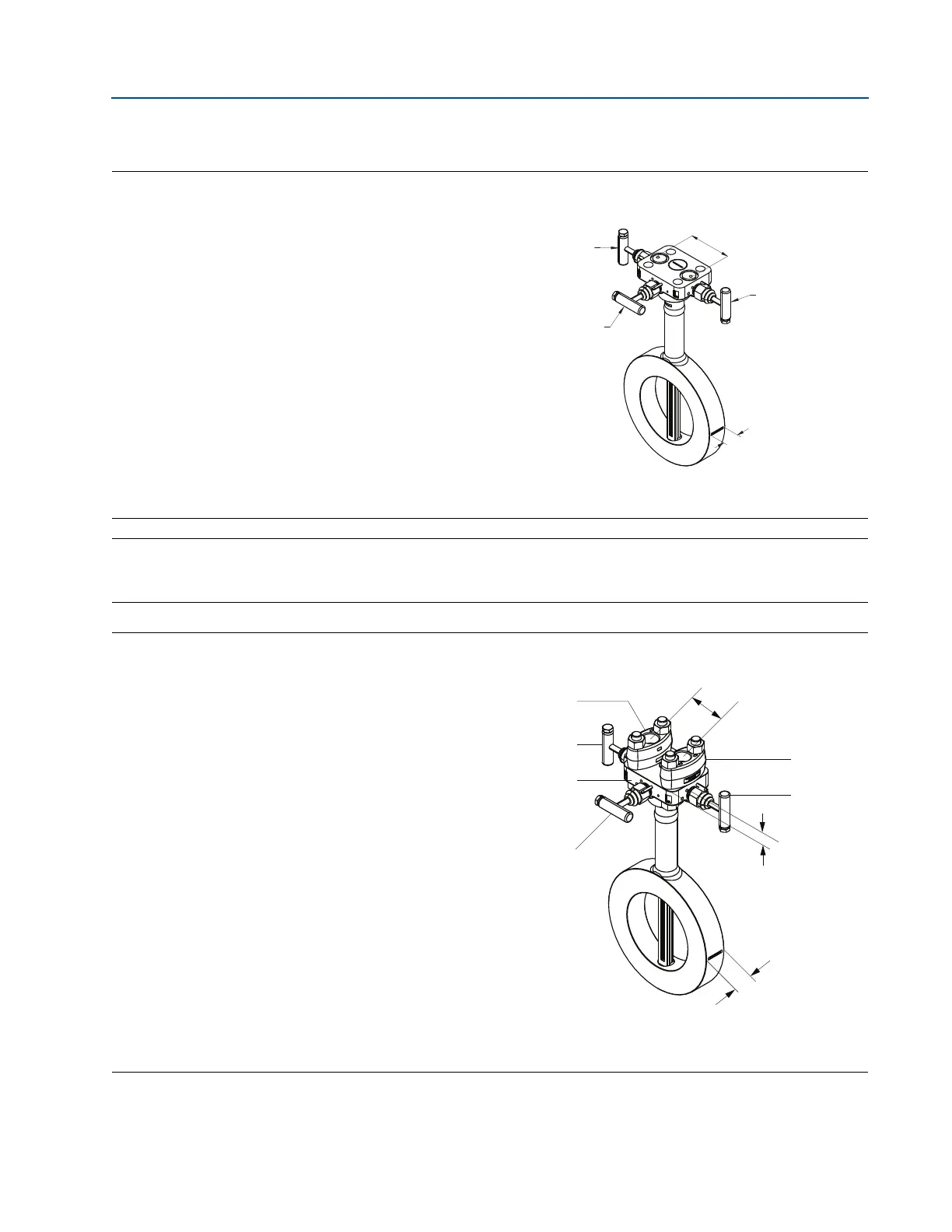

Figure 26. Rosemount 405 Compact Orifice Plate (Direct Mount)
Note
Transmitter connection code A3 is to be used with a traditional style transmitter. This is a stainless steel adapter
plate for allowing the direct mount of traditional style transmitters.
Figure 27. Rosemount 405 Compact Orifice Plate (Remote Mount Transmitter)
Front view (transmitter connection A3) Front view (transmitter connection D3)
Compact Annubar Primary Element
(Primary element type Code A)
Transmitter Connection A3 not available with Primary
Element Technology A
A. High instrument valve
B. Adapter plate
C. Equalizer valve
D. Low instrument valve
Adapter plate (R3) Flange adapter (R3 with option E)
Compact Annubar Primary Element
(primary element type code A)
Transmitter Connection R3 not available with Primary Element
Technology A
A.
1
/2-in. NPT
B. High instrument valve
C. Adapter plate
D. Equalizer valve
E. Flange adapter
F. Low instrument valve
1.125 (28.58)
A
C
D
2.13 (54.1)
A
B
C
D
0.85 (21.6)
E
F
2.13 (54.1)
1.125 (28.58)
