A.16.5 585 dimensional drawings

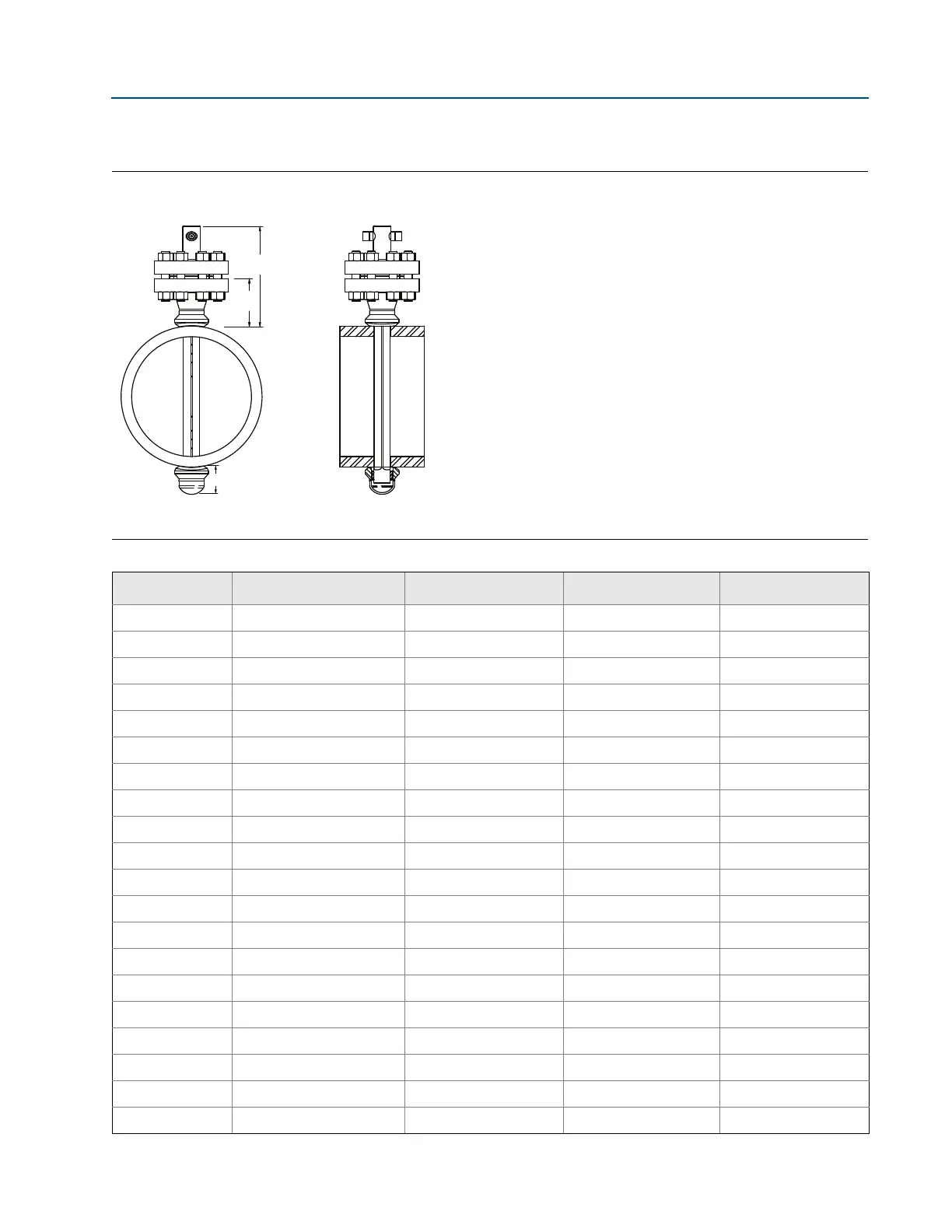

Figure 23. Rosemount 585 Flanged with Opposite Side Support Annubar Primary Element
Note: Dimensions are shown with a remote-mount connection. Using direct-mount will add 0.15-in. for sensor size 11 and 22 or 3.15-in. for
sensor size 44 to Dimension B.
Front view Side view
Table 51. 585 Flanged with Opposite Side Support Dimensional Data
Sensor size Flange size and rating A ± 0.125 (3.2) B ± 0.25 (6.4) F (Max)
11 1
1
/2-in.– 150# 3.88 (98.6) 9.70 (246.4) 3.10 (78.7)
11 1
1
/2-in. – 300# 4.13 (104.9) 10.07 (255.8) 3.10 (78.7)
11 1
1
/2-in. – 600# 4.44 (112.8) 10.70 (271.8) 3.10 (78.7)
11 DIN40/PN16 3.21 (81.5) 9.05 (229.9) 3.10 (78.7)
11 DIN40/PN40 3.21 (81.5) 9.05 (229.9) 3.10 (78.7)
11 DIN40/ PN100 3.88 (98.6) 10.03 (254.8) 3.10 (78.7)
11 1
1
/2-in. – 900# 4.94 (125.5) 11.57 (293.9) 3.60 (91.4)
11 1
1
/2-in. – 1500# 4.94 (125.5) 11.57 (293.9) 3.60 (91.4)
11 1
1
/2-in. – 2500# 6.75 (171.5) 13.88 (352.6) 3.60 (91.4)
22 2-in. – 150# 4.13 (104.9) 10.01 (254.3) 4.50 (114.3)
22 2-in. – 300# 4.38 (111.3) 10.38 (263.7) 4.50 (114.3)
22 2-in. – 600# 4.75 (120.7) 11.13 (282.7) 4.50 (114.3)
22 DIN50/PN16 3.40 (86.4) 9.24 (234.7) 4.50 (114.3)
22 DIN50/PN40 3.52 (89.4) 9.44 (239.8) 4.50 (114.3)
22 DIN50/ PN100 4.30 (109.2) 10.53 (267.5) 4.50 (114.3)
22 2-in. – 900# 5.88 (149.4) 12.76 (324.1) 4.50 (114.3)
22 2-in. – 1500# 5.88 (149.4) 12.76 (324.1) 4.50 (114.3)
22 3-in. – 2500# 9.88 (250.1) 17.88 (454.2) 4.50 (114.3)
44 3-in. – 150# 4.63 (117.6) 10.69 (271.5) 3.90 (99.1)
44 3-in. – 300# 5.00 (127.0) 11.26 (286.6) 3.90 (99.1)
