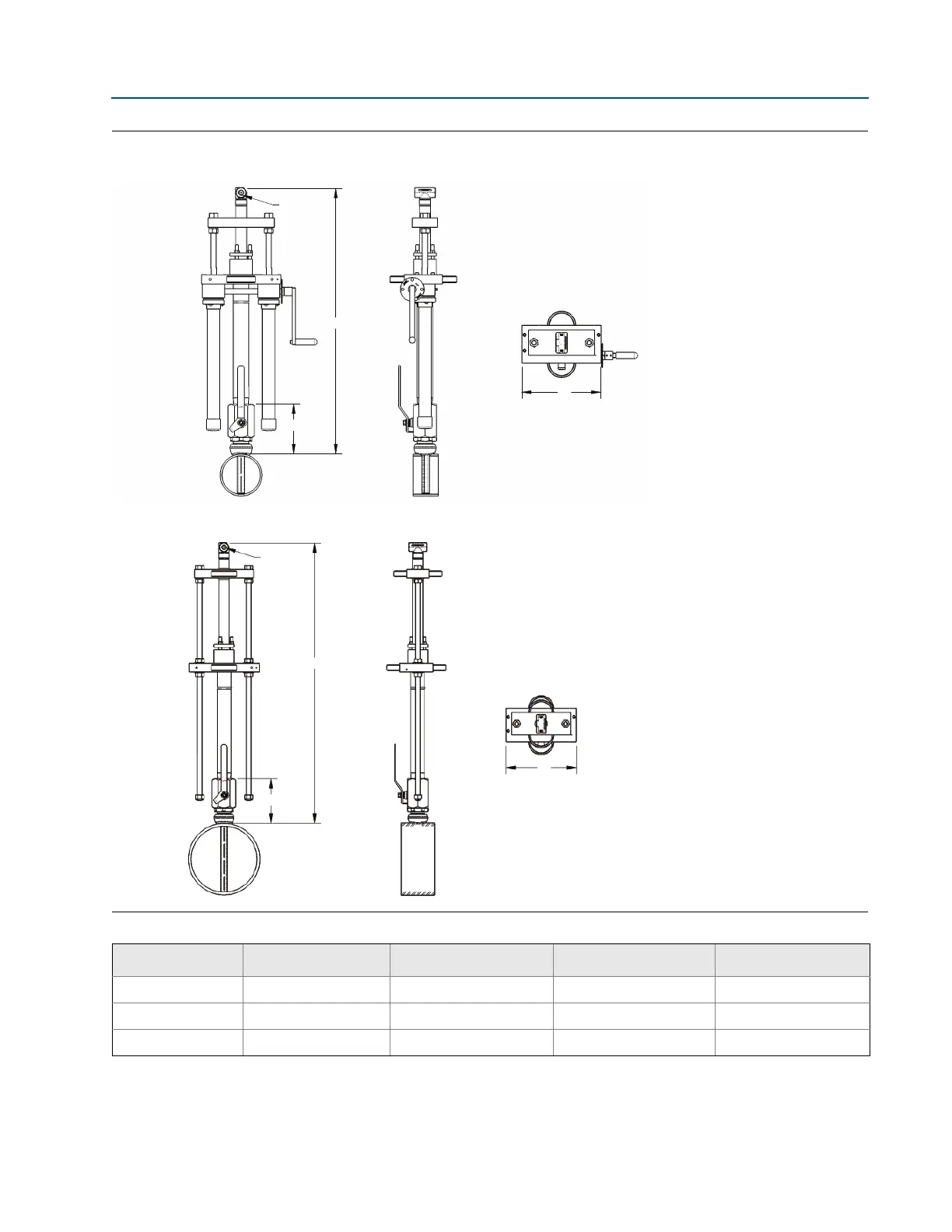

Figure 22. Threaded Flo-Tap 485 Annubar Primary Element
Front view Side view Top view
Front view Side view Top view
Table 50. Threaded Flo-Tap 485 Annubar Primary Element Dimensional Data
(1)(2)
1. Inserted, B Dimension = Pipe I.D. + Wall Thickness + A + B
I
2. Retracted, B Dimension = 2 ⫻ (Pipe I.D. + Wall Thickness + A) + B
I
Sensor size A ± 0.50 (12.7) B
I
(Max) (Gear Drive) B
I
(Max) (Manual) D (Max)
1 7.51 (190.9) N/A 16.96 (430.8) 10.50 (266.7)
2 8.17 (207.5) 23.62 (599.9) 20.39 (517.9) 12.56 (319.0)
3
(3)
3. Sensor Size 3 is not available in a Threaded Flo-Tap.
N/A N/A N/A N/A
-in. NPT
or SW
1
/
2
A
B
D
Gear Drive
-in. NPT
or SW
1
/
2
B
A
D
Manual
