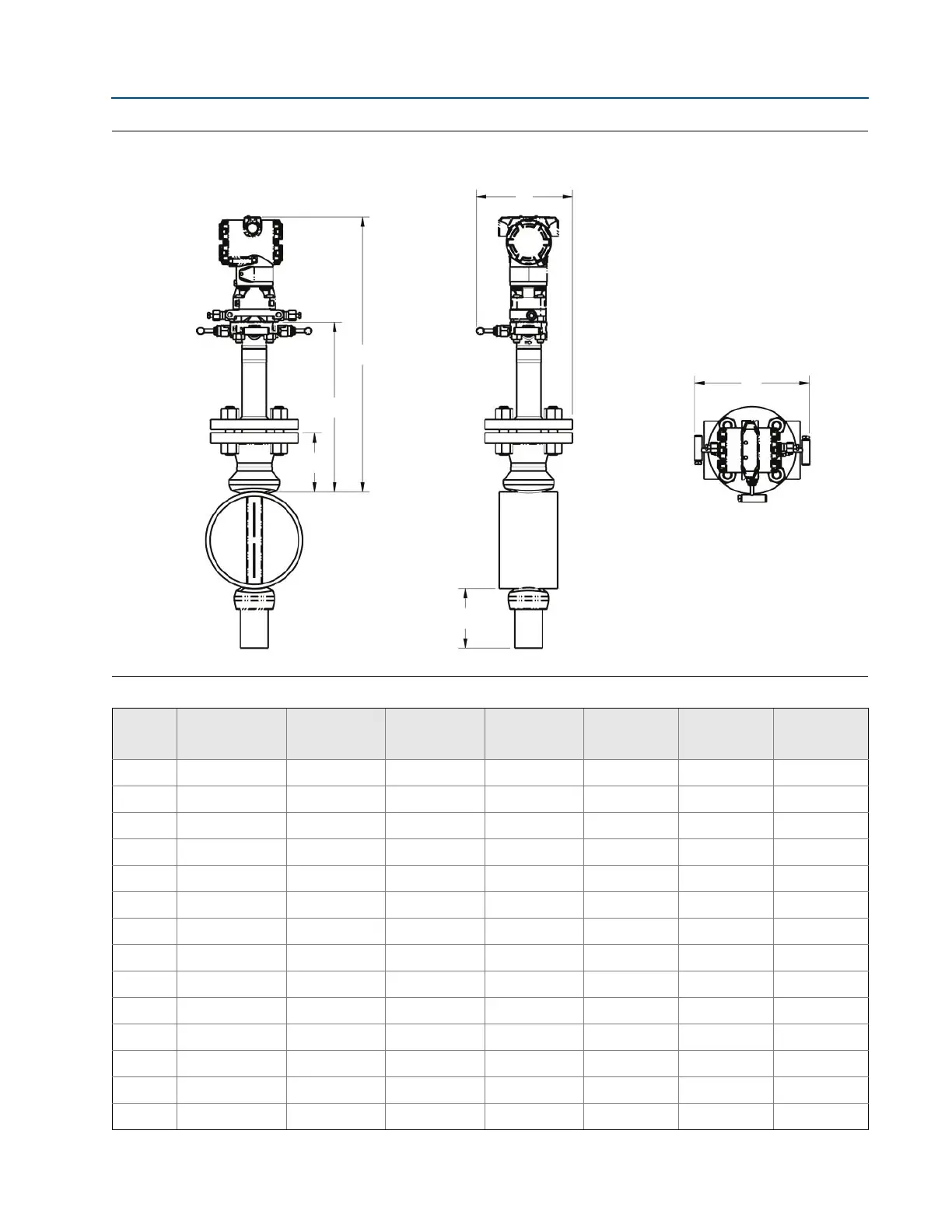

Figure 11. Rosemount 3051CFA Flanged Annubar Flowmeter
Front view Side view Top view
Table 39. 3051CFA Flanged Annubar Flowmeter Dimensional Data
Sensor
size
Flange size and
rating
A ± 0.125
(3.2)
B ± 0.25
(6.4)
C ± 0.25
(6.4)
D (Max) E (Max) F (Max)
1 1
1
/2 – 150# 3.88 (98.6) 11.00 (279.4) 18.10 (459.7) 9.00 (228.6) 6.30 (160.0) 3.50 (88.9)
1 1
1
/2 – 300# 4.13 (104.9) 11.00 (279.4) 18.10 (459.7) 9.00 (228.6) 6.86 (174.2) 3.50 (88.9)
1 1
1
/2 – 600# 4.44 (112.8) 11.00 (279.4) 18.10 (459.7) 9.00(228.6) 6.86 (174.2) 3.50 (88.9)
1 DN40/PN16 3.09 (78.5) 11.00 (279.4) 18.10 (459.7) 9.00 (228.6) 6.86 (174.2) 3.50 (88.9)
1 DN40/PN40 3.21 (81.5) 11.00 (279.4) 18.10 (459.7) 9.00 (228.6) 6.86 (174.2) 3.50 (88.9)
1 DN40/ PN100 3.88 (98.6) 11.00 (279.4) 18.10 (459.7) 9.00(228.6) 6.86 (174.2) 3.50 (88.9)
1 1
1
/2 – 900# 4.94 (125.5) 9.31 (236.5) N/A N/A N/A 3.50 (88.9)
1 1
1
/2 – 1500# 4.94 (125.5) 9.31 (236.5) N/A N/A N/A 3.50 (88.9)
1 1
1
/2 – 2500# 6.76 (171.7) 11.63 (295.4) N/A N/A N/A 4.00 (101.6)
2 2 – 150# 4.13 (104.9) 12.00 (304.8) 19.10 (458.1) 9.00 (228.6) 6.80 (172.7) 5.00 (127.0)
2 2 – 300# 4.38 (111.3) 12.00 (304.8) 19.10 (458.1) 9.00 (228.6) 7.05 (179.1) 5.00 (127.0)
2 2 – 600# 4.75 (120.7) 12.00 (304.8) 19.10 (458.1) 9.00 (228.6) 7.05 (179.1) 5.00 (127.0)
2 DN50/PN16 3.40 (86.4) 12.00 (304.8) 19.10 (458.1) 9.00 (228.6) 7.05 (179.1) 5.00 (127.0)
2 DN50/PN40 3.52 (89.4) 12.00 (304.8) 19.10 (458.1) 9.00 (228.6) 7.05 (179.1) 5.00 (127.0)
A
B
C
E
D
F
