Appendix A: Specifications and Reference Data
September 2015
192
Specifications and Reference Data

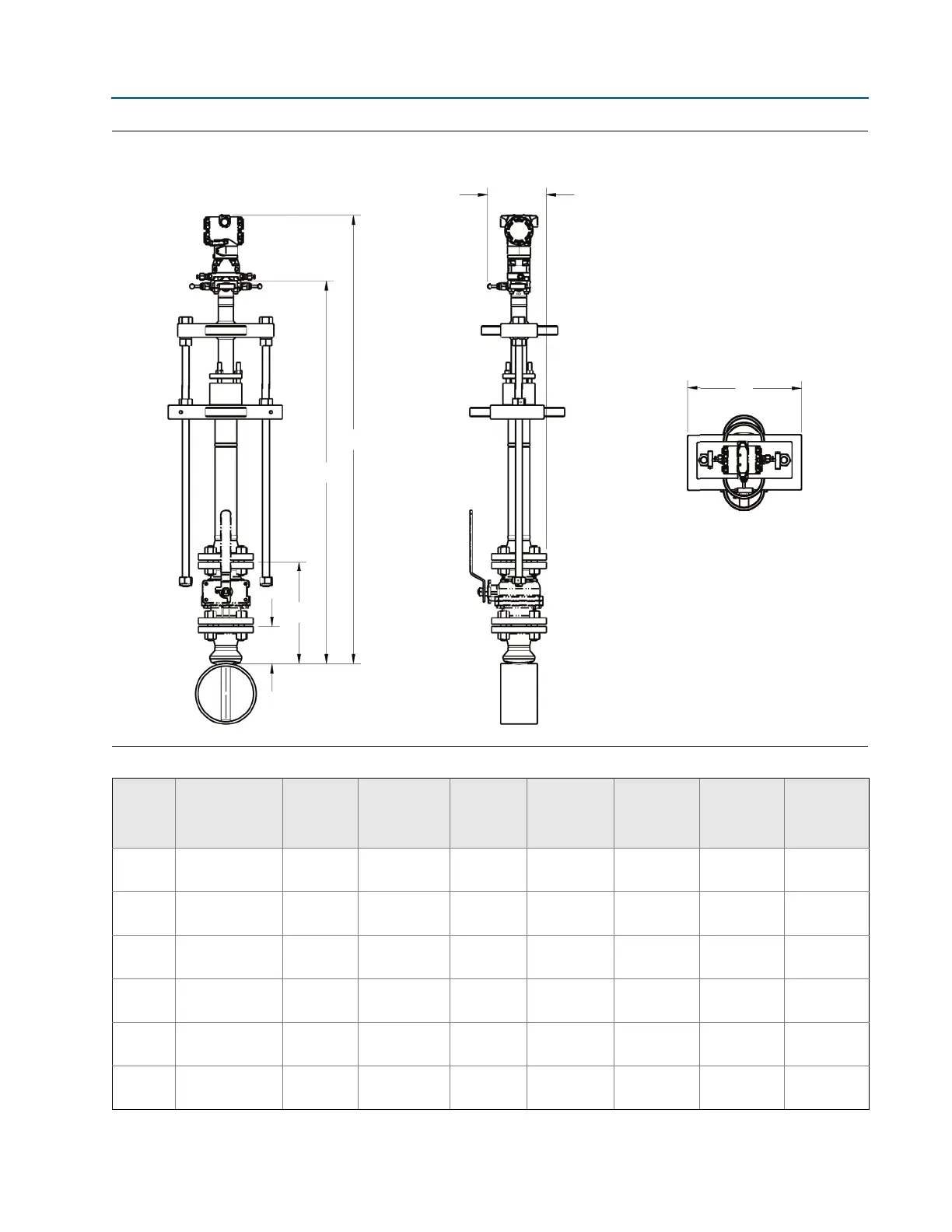

Figure 12. Rosemount 3051CFA Flanged Flo-Tap Annubar Flowmeter
(1)
Front view Side view Top view
1. The Flanged Flo-Tap Annubar Flowmeter is available with both the manual and gear drive options.
Table 40. 3051CFA Flanged Flo-Tap Annubar Flowmeter Dimensional Data
(1)(2)
Sensor
size
Flange size
and rating
A ± 0.125
(3.2)
B ± 0.25
(6.4)
C
I
(Max)
(Gear
drive)
C
I
(Max)
(Manual)
D (Max) E (Max) F (Max)
1 1
1
/2 – 150#
3.88
(98.6)
10.50
(266.7)
N/A
17.77
(451.4)
C +7.10
(180.3)
10.50
(266.7)
6.30
(160.0)
1 1
1
/2 – 300#
4.13
(104.9)
11.75
(298.5)
N/A
17.77
(451.4)
C +7.10
(180.3)
10.50
(266.7)
6.86
(174.2)
1 1
1
/2 – 600#
4.44
(112.8)
14.06
(357.2)
N/A
17.77
(451.4)
C +7.10
(180.3)
10.50
(266.7)
6.86
(174.2)
1 DN40/PN16
(3)
3.09
(78.5)
Customer
Supplied
N/A
17.77
(451.4)
C +7.10
(180.3)
10.50
(266.7)
6.86
(174.2)
1 DN40/PN40
3.21
(81.5)
Customer
Supplied
N/A
17.77
(451.4)
C +7.10
(180.3)
10.50
(266.7)
6.86
(174.2)
1 DN40/PN100
3.88
(98.6)
Customer
Supplied
N/A
17.77
(451.4)
C +7.10
(180.3)
10.50
(266.7)
6.86
(174.2)
A
B
C
D
F
E
