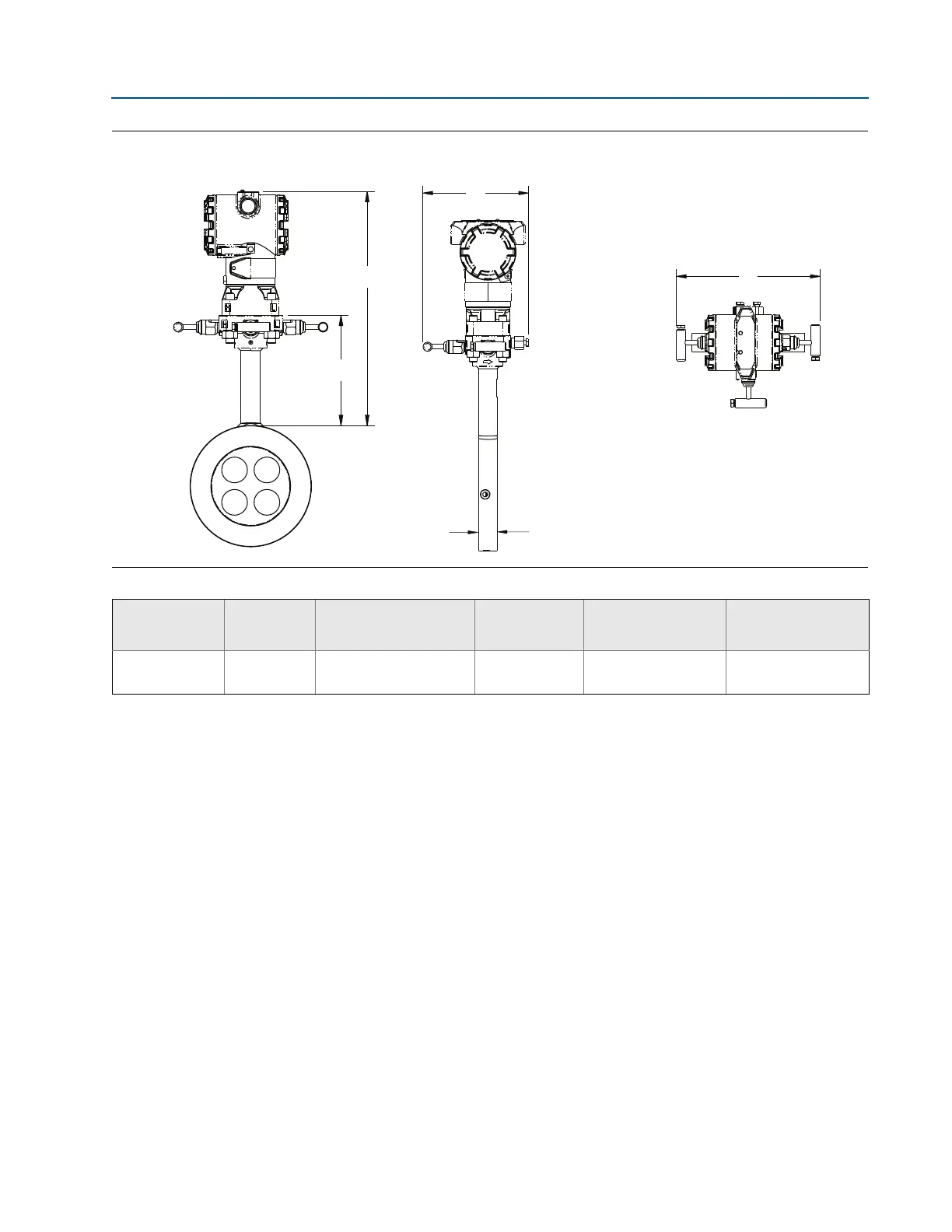

Figure 14. Rosemount 3051CFC Compact Flowmeter
Side view Front view Top view
Primary element type code A
Table 42. 3051CFC Compact Dimensional Data
Primary
element type
A B
Transmitter
height
C D
A 5.62 (143) Transmitter Height + A 7.38 (188)
7.75 (197) - closed
8.25 (210) - open
6.00 (152) - closed
6.25 (159) - open
Dimensions are in inches (millimeters).
B
A
D
1.125 (28.58)
C
