Rosemount 396P - Flow-Through and Insertion Installations

MODEL 396P and 396PVP SECTION 2.0
INSTALLATION

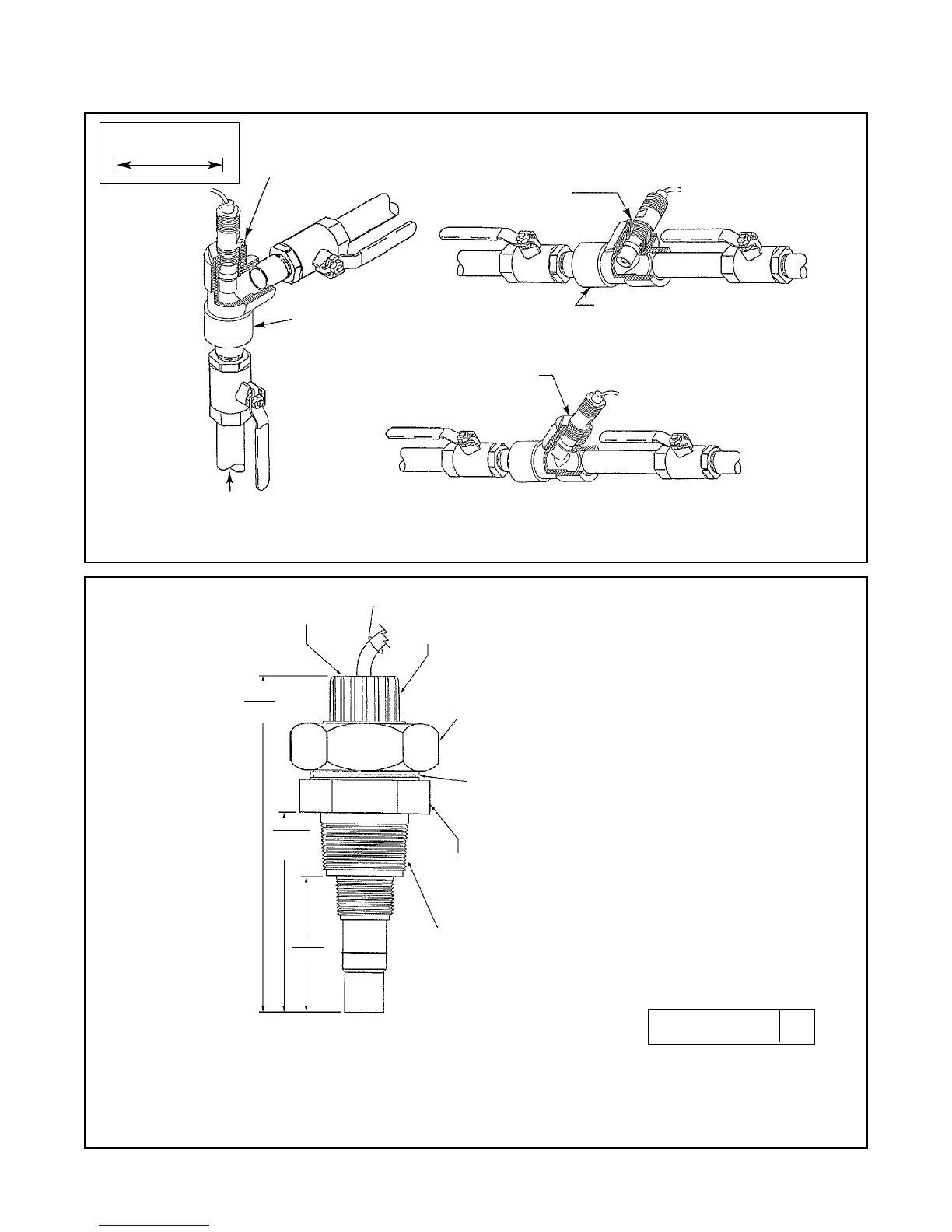

FIGURE 2-4. Model 396P with Insertion Mounting Adapter (PN 23242-02).
Not for use with Model 396PVP.
Mounting adapter allows for sensor removal without twisting or
disconnecting interconnecting cable for ease of maintenance.
WHEN INCH AND METRIC DIMS
ARE GIVEN
MILLIMETER
INCH
DWG. NO. REV.
40396P02 A
FIGURE 2-3. Flow-Through and Insertion Installations
1-1/2” PIPE “Y”
1-1/2” X 1”
Reducing
Bushing
1-1/2” X 1”
Reducing
Bushing
1-1/2” X 1”
Reducing
Bushing
1-1/2” Pipe Tee
PN 2002011
1-1/2” Pipe Tee
PN 2002011
PIPE “Y”
INSTALLATION
SHOWN
STRAIGHT
FLOW
SHOWN
FLOW
ANGLE
FLOW
SHOWN
200.0
7.875
121.92
4.80
85.85
3.375
NECK, UNION FITTING (316 SST) 2-5/8 IN.
WRENCH OPENING
INSERTION MOUNTING ADAPTER PN 23242-02
(INCLUDES: PEEK ADAPTER, 304 SST UNION FITTING)
1-1/2 IN. MNPT
2.531.8 ACME THREAD (TYP)
CABLE (OR VP CONNECTOR - NOT SHOWN)
PEEK ADAPTER 1 IN FNPT X 3/4 IN. FNPT
(REVERSIBLE)
NUT, HEX UNION 2 IN.
3 IN. WRENCH OPENING (304 SST)
6
