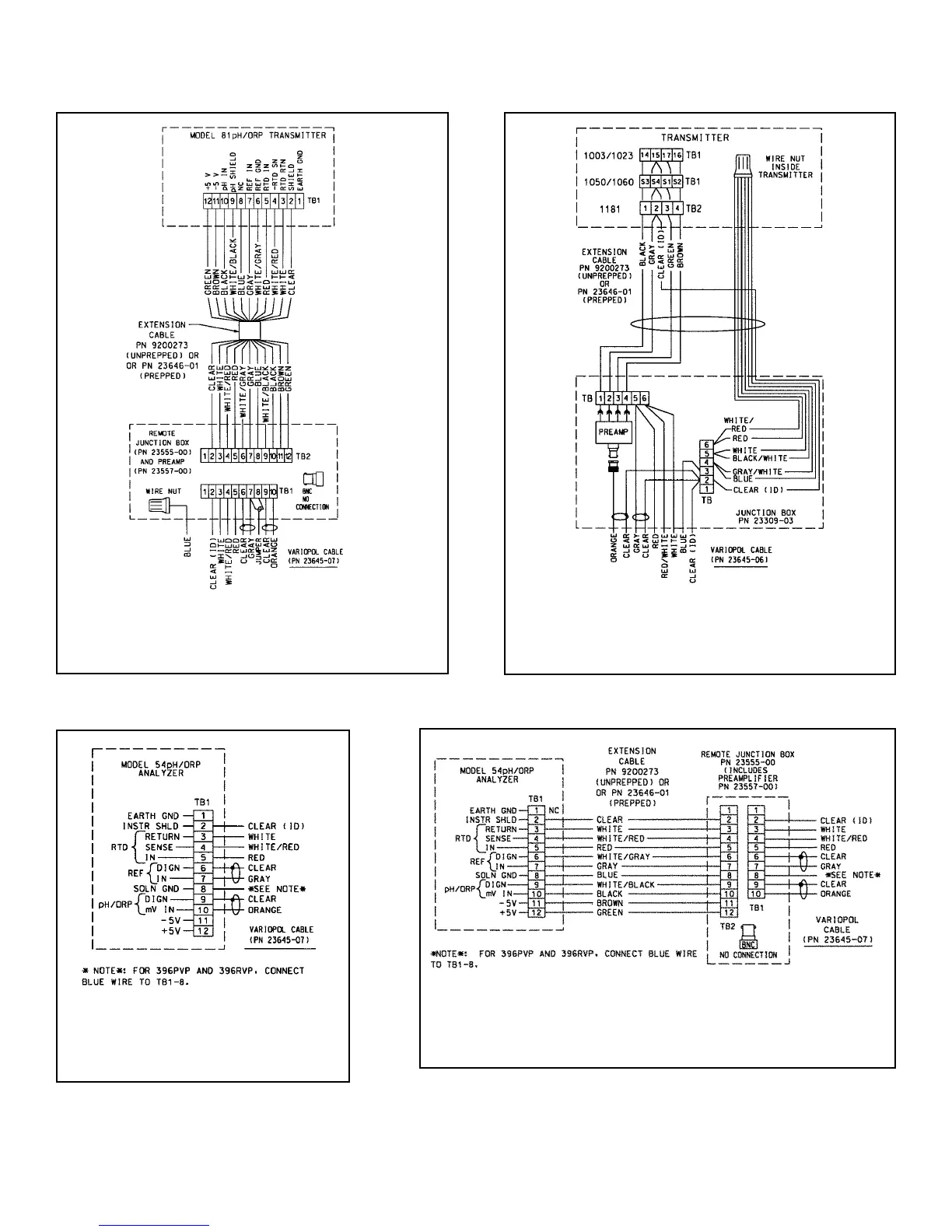

MODEL 396P and 396PVP SECTION 4.0
WIRING - MODEL 396PVP
FIGURE 4-8. Wiring Details for Models 396PVP
or 396P-02-50 with Mating Variopol Cable
(PN 23645-06) for use with Remote Junction Box
(PN 23309-03) to Model 1181
FIGURE 4-7. Wiring Details for Models 396PVP
or 396P-02-55 with Mating Variopol Cable
(PN 23645-07) for use with Remote Junction Box
(PN 23555-00) to Model 81
FIGURE 4-9. Wiring Details for
Models 396PVP or 396P-02-55 with
Mating Variopol Cable (PN 23645-07)
for use with Model 54
FIGURE 4-10. Wiring Details for Models 396PVP or 396P-02-55
with Mating Variopol Cable (PN 23645-07) for use with Remote
Junction Box (PN 23555-00) to Model 54
17
