Rosemount 396P - Dimensional Drawing; Flow-Through Tee with Adapter (PN 915240-XX)

5
MODEL 396P and 396PVP SECTION 2.0
INSTALLATION

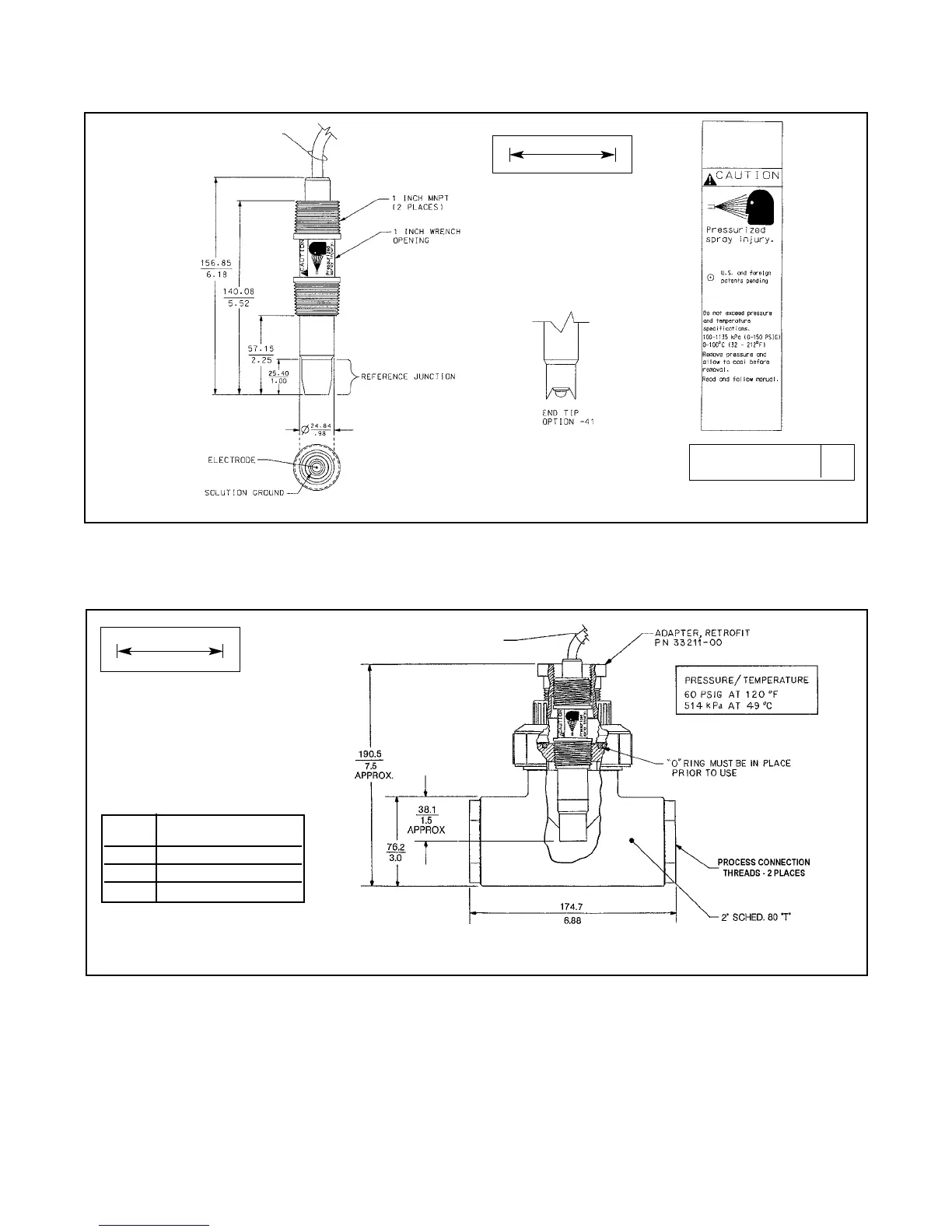

FIGURE 2-1. Dimensional Drawing
DWG. NO. REV.
40396P01 D
MILLIMETER
INCH
FIGURE 2-2. Flow-Through Tee with Adapter (PN 915240-xx*)
MILLIMETER
INCH
xx* Process Connection
Threads
03 3/4 inch
04 1 inch
05 1-1/2 inch
SENSOR CABLE (OR VP CONNECTOR - NOT SHOWN)
SENSOR CABLE
(OR VP CONNECTOR
- NOT SHOWN)
