18
MODEL 396P and 396PVP SECTION 4.0
WIRING - MODEL 396PVP

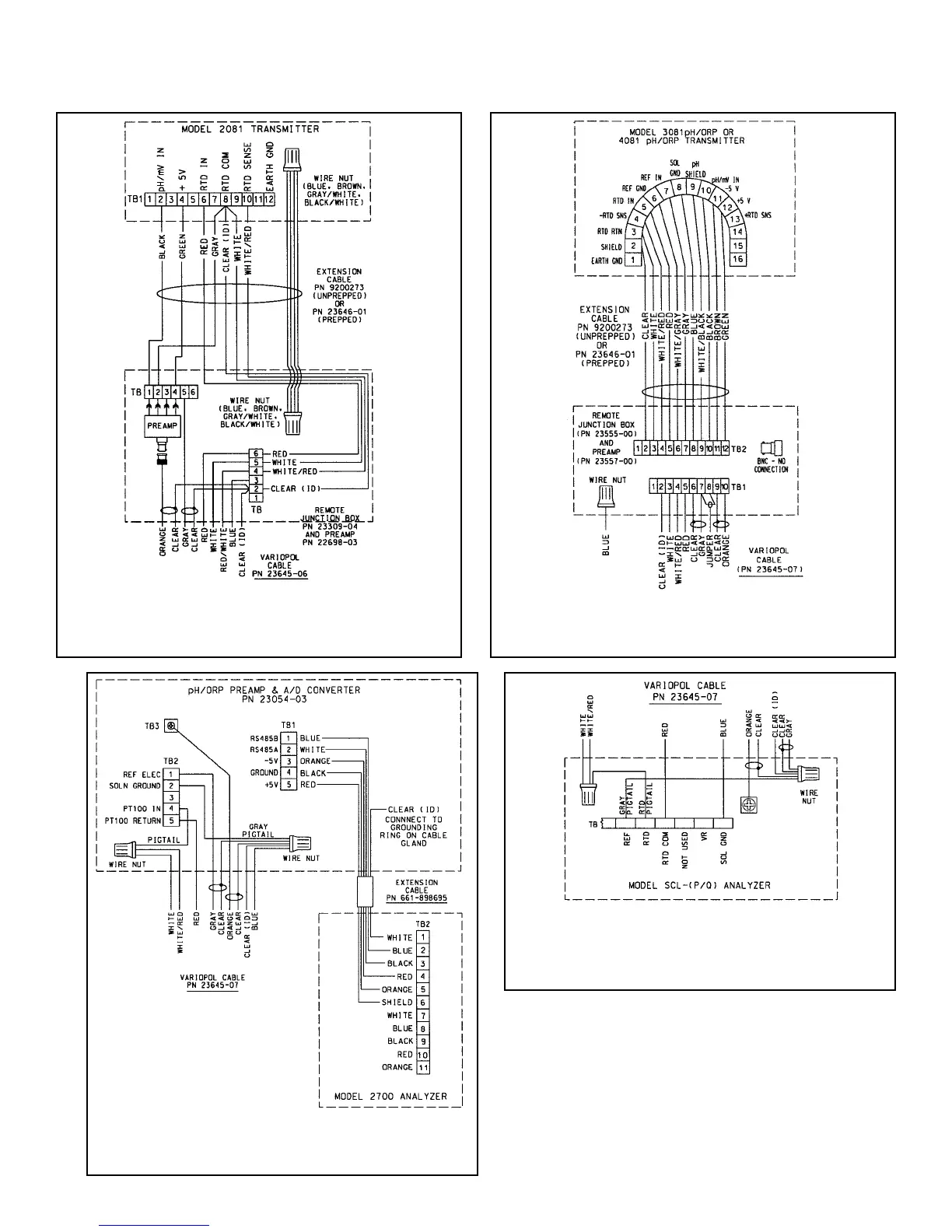

FIGURE 4-12. Wiring Details for Models 396PVP or 396P-
02-55 with Mating Variopol Cable (PN 23645-07) for use with
Remote Junction Box (PN 23555-00) to Models 3081 & 4081
FIGURE 4-11. Wiring Details for Models 396PVP or 396P-
02-54 with Mating Variopol Cable (PN 23645-06) for use
with Remote Junction Box (PN 23309-04) to Model 2081
FIGURE 4-13. Wiring Details for Models 396PVP or
396P-02-54 with Mating Variopol Cable (PN 23645-07)
for use with Model 2700
FIGURE 4-14. Wiring Details for Models 396PVP or
396P-02-54 with Mating Variopol Cable (PN 23645-07)
for use with Model SCL-(P/Q)
