MODEL 396P and 396PVP SECTION 4.0
WIRING - MODEL 396PVP

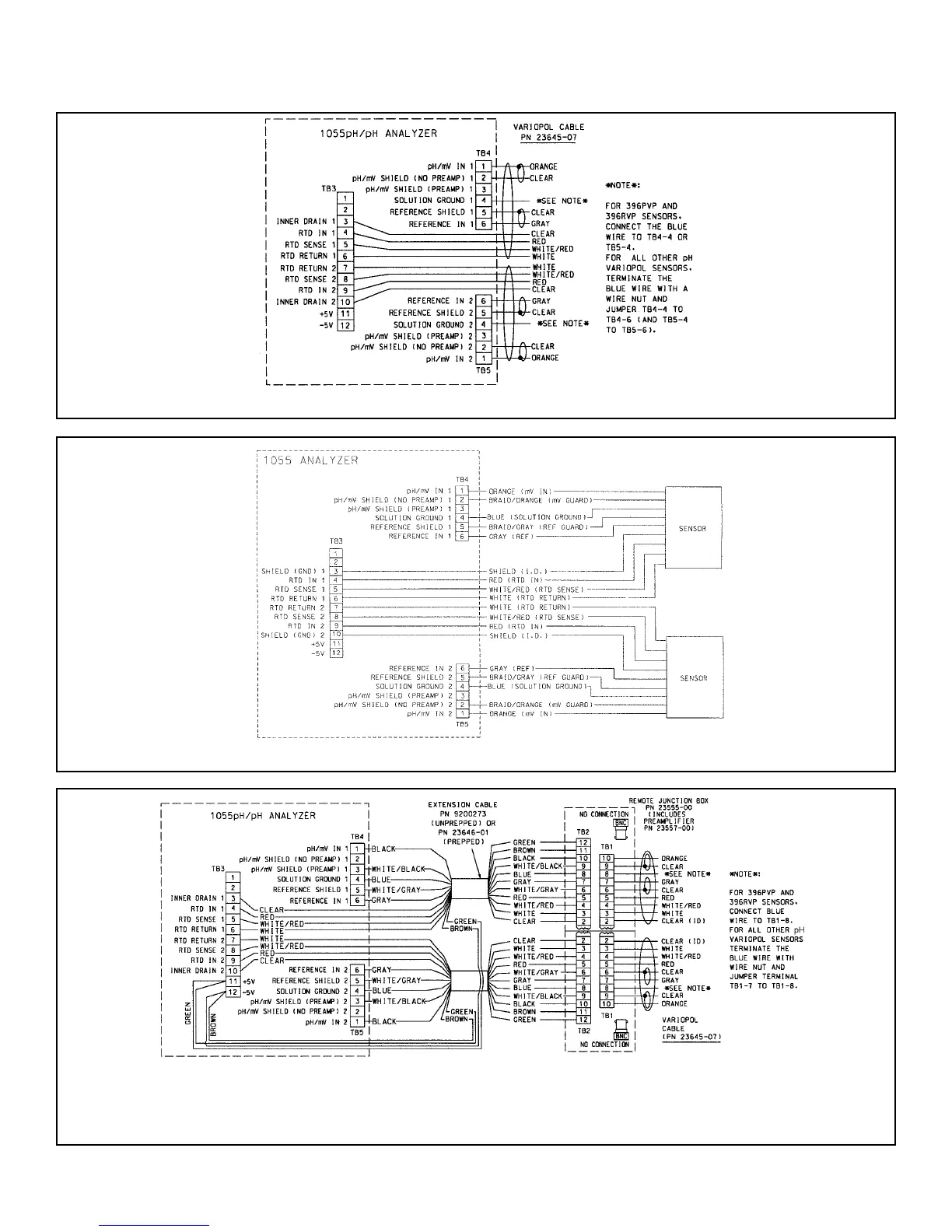

FIGURE 4-15. Wiring Details for Models 396PVP or 396P-02-55 with Mating Variopol Cable (PN 23645-07) for use with Model 1055
FIGURE 4-16. Wiring Model 396P-(02)-( )--54/55-(61) Sensor to Model 1055-01-10-22-32 Analyzer
FIGURE 4-17. Wiring Details for Models 396PVP or 396P-02-55 with Mating Variopol Cable (PN 23645-07)
for use with Remote Junction Box (PN 23557-00) to Model 1055
NOTE: This wiring diagram can also be used for wiring a Model 396P-01. The wire colors and functions for
the extension cable (PN 9200273) are the same as the 396P-01 wire colors and functions.
19
