Rosemount 396P - Wire Functions for Mating Variopol Cable Used with Model 396 PVP; Connector Pins and Their Functions; Wiring Details for Models 396 PVP or 396 P-02-55 with Mating Variopol Cable (PN 23645-07) for Use with Model; Wiring Details for Models 396 PVP or 396 P-02-50 with Mating Variopol Cable (PN 23645-07) for Use with Model 1181

16

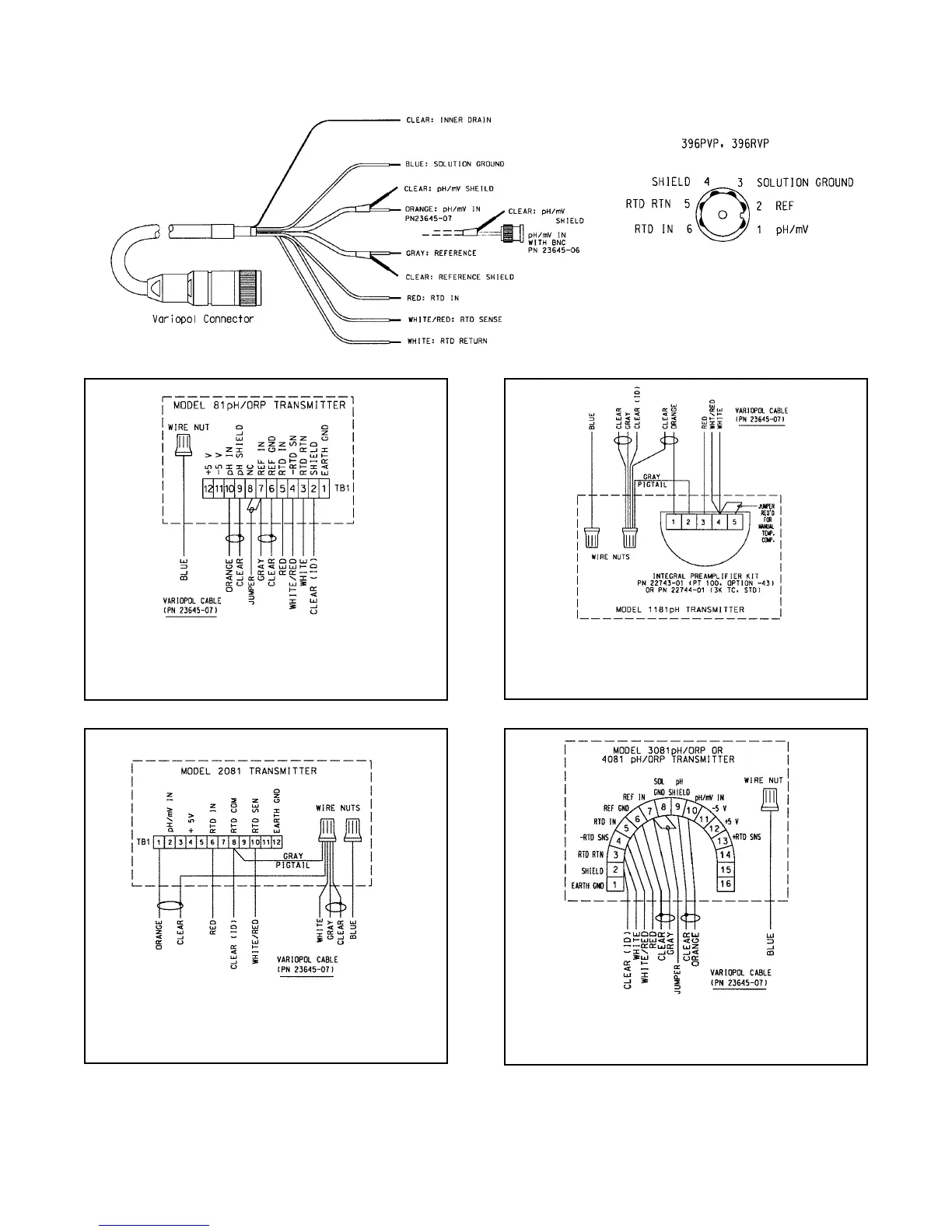

MODEL 396P and 396PVP SECTION 4.0
WIRING - MODEL 396PVP
FIGURE 4-1. Wire Functions
for Mating Variopol Cable used
with Model 396PVP
FIGURE 4-2. Connector Pins
and Their Functions
FIGURE 4-3. Wiring Details for Models 396PVP
or 396P-02-55 with Mating Variopol Cable
(PN 23645-07) for use with Model 81
FIGURE 4-4. Wiring Details for Models 396PVP
or 396P-02-50 with Mating Variopol Cable
(PN 23645-07) for use with Model 1181
FIGURE 4-5. Wiring Details for Models 396PVP
or 396P-02-54 with Mating Variopol Cable
(PN 23645-07) for use with Model 2081
FIGURE 4-6. Wiring Details for Models 396PVP
or 396P-02-55 with Mating Variopol Cable
(PN 23645-07) for use with Models 3081 and 4081
