Rosemount 396P - Wiring Details Model 396 P-01-55 for Use with Models 54, 81, 3081, and 4081

14
MODEL 396P and 396PVP SECTION 3.0
WIRING - MODEL 396P

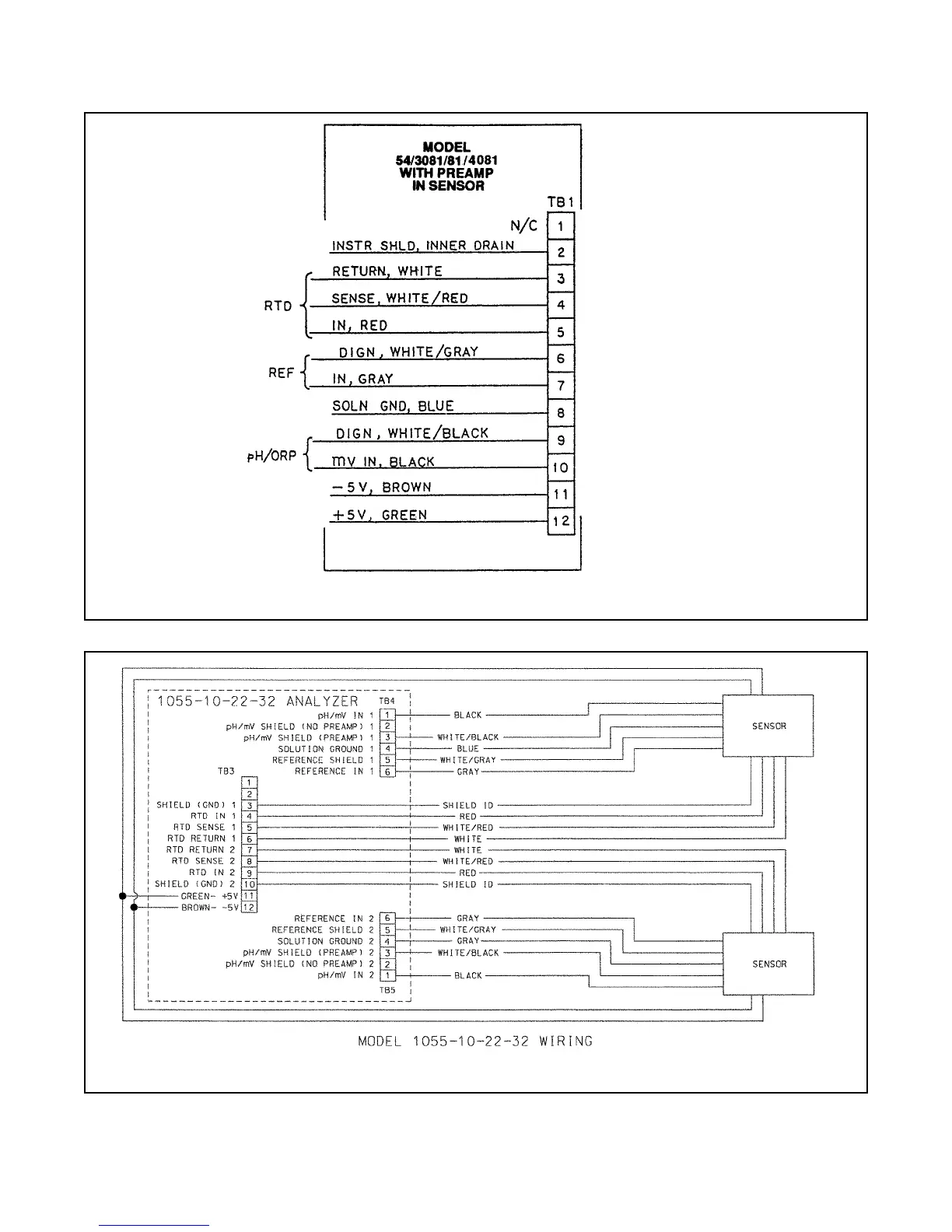

FIGURE 3-5. Wiring Details Model 396P-01-55 for use with Models 54, 81, 3081, and 4081
FIGURE 3-6. Wiring Model 396P-01-( )--55 Sensor to Model 1055-10-22-32 Analyzer
